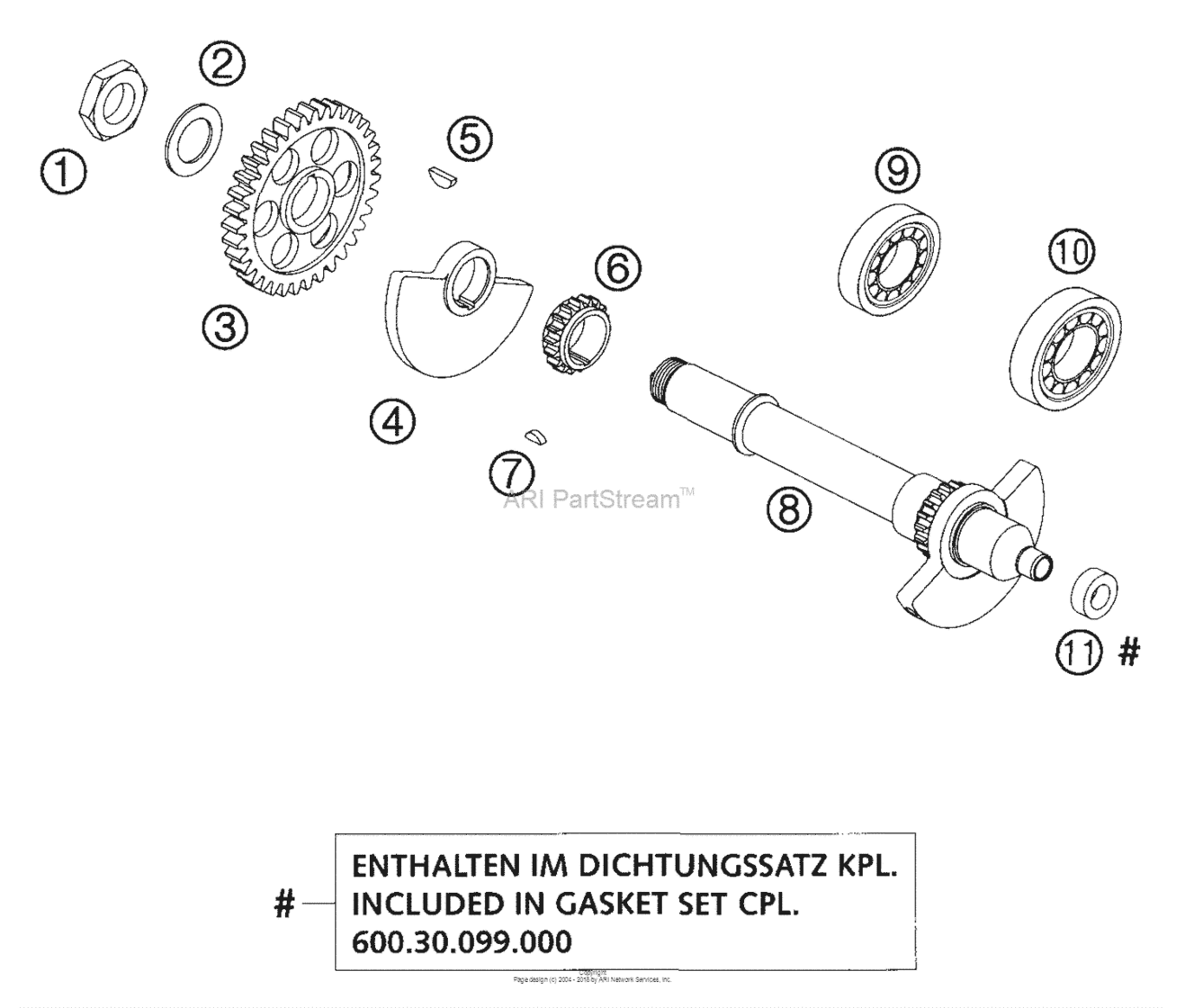

Balancer Shaft Diagram KTM 950 950 Adventure
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60036073050 Hexagon nut m20x1,5 7mmFOR SAS HOSE 03 |
60036073050 |
US $8.67 |
||
| replacement | |||||
|
1
|
1
60036073150 Hexagon nut m20x1,5 h=6mm 05FOR SAS HOSE 03 |
60036073150 |
US $5.95 |
||
|
2
|
2
54633015000 Stop disk 20,2x33x1,5FOR SAS HOSE 03 |
54633015000 |
US $3.20 |
||
|
3
|
3
60036080035
Replacem.kit Spread Transmiss
FOR SAS HOSE 03 |
60036080035 |
— | ||
| replacement | |||||
|
3
|
3
60036080044 Replacem.kit spread transmiss.FOR SAS HOSE 03 |
60036080044 |
US $161.14 |
||
|
4
|
4
60036074050 Balance weight 03FOR SAS HOSE 03 |
60036074050 |
US $74.26 |
||
|
5
|
5
0888040050 Woodruff key din6888 4x5x13FOR SAS HOSE 03 |
0888040050 |
US $3.43 |
||
|
6
|
6
60036014018 Timing gear 18-t 03FOR SAS HOSE 03 |
60036014018 |
US $46.21 |
||
|
7
|
7
0888030037 Woodruff key din6888-3x3,7FOR SAS HOSE 03 |
0888030037 |
US $0.58 |
||
|
8
|
8
60036073000 Timing valve jackshaft cpl. 03FOR SAS HOSE 03 |
60036073000 |
US $243.97 |
||
|
9
|
9
60030024000 Cyl. Roller Bear. Nup 204EFOR SAS HOSE 03 |
60030024000 |
US $97.46 |
||
| replacement | |||||
|
9
|
9
60030024100 Cyl. roller bear. nup 204eFOR SAS HOSE 03 |
60030024100 |
US $89.40 |
||
|
10
|
10
0625602800 Ball bearing 60/28 c4 jr2FOR SAS HOSE 03 |
0625602800 |
US $30.53 |
||
|
11
|
11
0760122050 Shaft seal ring 12x20x5 bFOR SAS HOSE 03 |
0760122050 |
US $7.16 |
||
