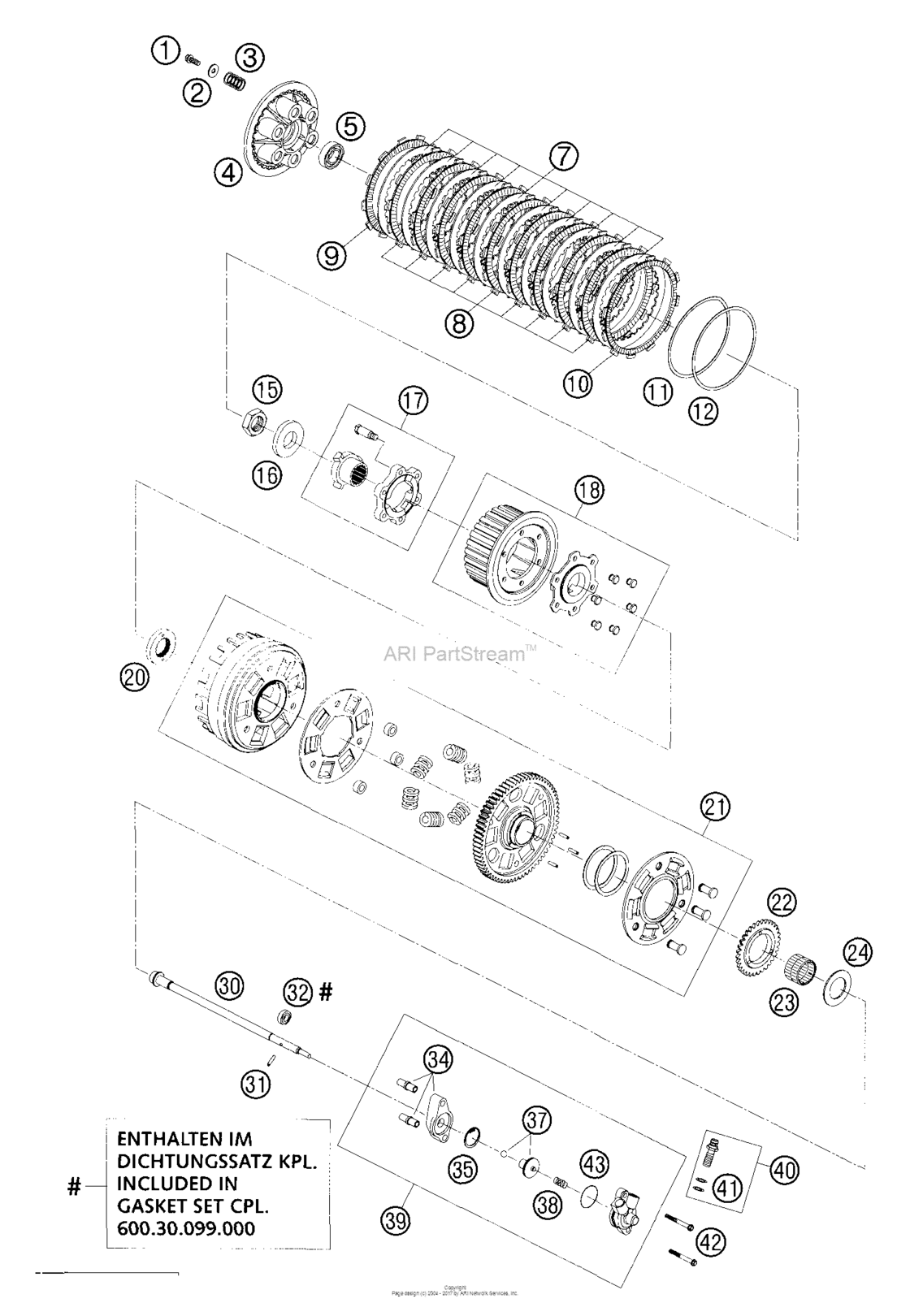

Clutch Diagram KTM 950 950 Adventure
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0015060163 Hh Collar Screw M 6X16 Ws=8FOR SAS HOSE 03 |
0015060163 |
US $2.23 |
||
|
2
|
2
0021060003 Washer Din9021-A 6,4FOR SAS HOSE 03 |
0021060003 |
US $3.26 |
||
|
3
|
3
60032005000 Clutch spring lc8 2003FOR SAS HOSE 03 |
60032005000 |
US $9.55 |
||
|
4
|
4
60032003000 Pressure cap lc8 2003FOR SAS HOSE 03 |
60032003000 |
US $68.34 |
||
|
5
|
5
0625060032 Ball bearing 6003 jr2 c4FOR SAS HOSE 03 |
0625060032 |
US $19.69 |
||
|
7
|
7
60032010000 Steel disc 2mm 03FOR SAS HOSE 03 |
60032010000 |
US $9.89 |
||
|
8
|
8
60032011000 Lining disk 2,8mm 03FOR SAS HOSE 03 |
60032011000 |
US $28.24 |
||
|
9
|
9
60032111000 Lining disk outside 2,8mm 03FOR SAS HOSE 03 |
60032111000 |
US $35.92 |
||
|
10
|
10
60032012000 Lining disk turn out 2,8mm 03FOR SAS HOSE 03 |
60032012000 |
US $36.62 |
||
|
11
|
11
60032034000 Belleville spring 2003FOR SAS HOSE 03 |
60032034000 |
US $34.92 |
||
|
12
|
12
60032035000 Thrust washer 2003FOR SAS HOSE 03 |
60032035000 |
US $12.02 |
||
|
15
|
15
0936220155 Hexagon nut din0936-m22x1,5 r.FOR SAS HOSE 03 |
0936220155 |
US $1.41 |
||
|
16
|
16
0126220373 Washer Din0126 22X37X3 MmFOR SAS HOSE 03 |
0126220373 |
US $0.46 |
||
|
17
|
17
60032080000
Clutch booster unit cpl. 03
FOR SAS HOSE 03 |
60032080000 |
— | ||
|
18
|
18
60032002000 Inner clutch hub cpl. 03FOR SAS HOSE 03 |
60032002000 |
US $219.76 |
||
|
20
|
20
60032021000 Section washer 03FOR SAS HOSE 03 |
60032021000 |
US $35.05 |
||
|
21
|
21
60032001144 Out.clutch hub cpl. 67-t 2004FOR SAS HOSE 03 |
60032001144 |
US $644.10 |
||
|
22
|
22
60038001032 Oil pump gear wheel 32-t 03FOR SAS HOSE 03 |
60038001032 |
US $51.53 |
||
|
23
|
23
0618303526 Needle bush hk 30x35x26FOR SAS HOSE 03 |
0618303526 |
US $62.22 |
||
|
24
|
24
60032020000 Stop disk 30,2/50/2FOR SAS HOSE 03 |
60032020000 |
US $7.89 |
||
|
30
|
30
60032054100 Push Rod CplFOR SAS HOSE 03 |
60032054100 |
US $47.45 |
||
| replacement | |||||
|
30
|
30
60032054400 Push rod cpl.FOR SAS HOSE 03 |
60032054400 |
US $37.96 |
||
|
31
|
31
0402031780 Needle rol.din5402 nrb 3x17,8FOR SAS HOSE 03 |
0402031780 |
US $1.29 |
||
|
32
|
32
0760091862 Shaft seal ring 9x18x06 b-nbrFOR SAS HOSE 03 |
0760091862 |
US $5.63 |
||
|
34
|
34
60032061050 Distance clutch contr. cpl.FOR SAS HOSE 03 |
60032061050 |
US $54.43 |
||
|
35
|
35
0472270120
Circlip din0472
FOR SAS HOSE 03 |
0472270120 |
— | ||
|
37
|
37
60032066000
Slave Cylinder Cpl. Lc8 08
FOR SAS HOSE 03 |
60032066000 |
— | ||
| replacement | |||||
|
37
|
37
60032061244 Cylinder cpl. lc8 08FOR SAS HOSE 03 |
60032061244 |
US $209 |
||
|
38
|
38
60032069000 Compression spring 8x20,75FOR SAS HOSE 03 |
60032069000 |
US $12.04 |
||
|
39
|
39
60032061044
Slave Cylinder Cpl. Lc8 08
FOR SAS HOSE 03 |
60032061044 |
— | ||
| replacement | |||||
|
39
|
39
60032061244 Cylinder cpl. lc8 08FOR SAS HOSE 03 |
60032061244 |
US $209 |
||
|
40
|
40
50332062000 Hollow screw cpl. m 10x1 '98FOR SAS HOSE 03 |
50332062000 |
US $35.33 |
||
|
41
|
41
0603100141 Copper Gasket Din7603-10X14X1FOR SAS HOSE 03 |
0603100141 |
US $2.24 |
||
|
42
|
42
0015060503
Hh collar screw m 6x50 ws=8
FOR SAS HOSE 03 |
0015060503 |
— | ||
| replacement | |||||
|
42
|
42
0025060506 Hh collar screw m6x50 tx30FOR SAS HOSE 03 |
0025060506 |
US $3.30 |
||
|
43
|
43
60032065000 O-ring gasket 03FOR SAS HOSE 03 |
60032065000 |
US $12.58 |
||
