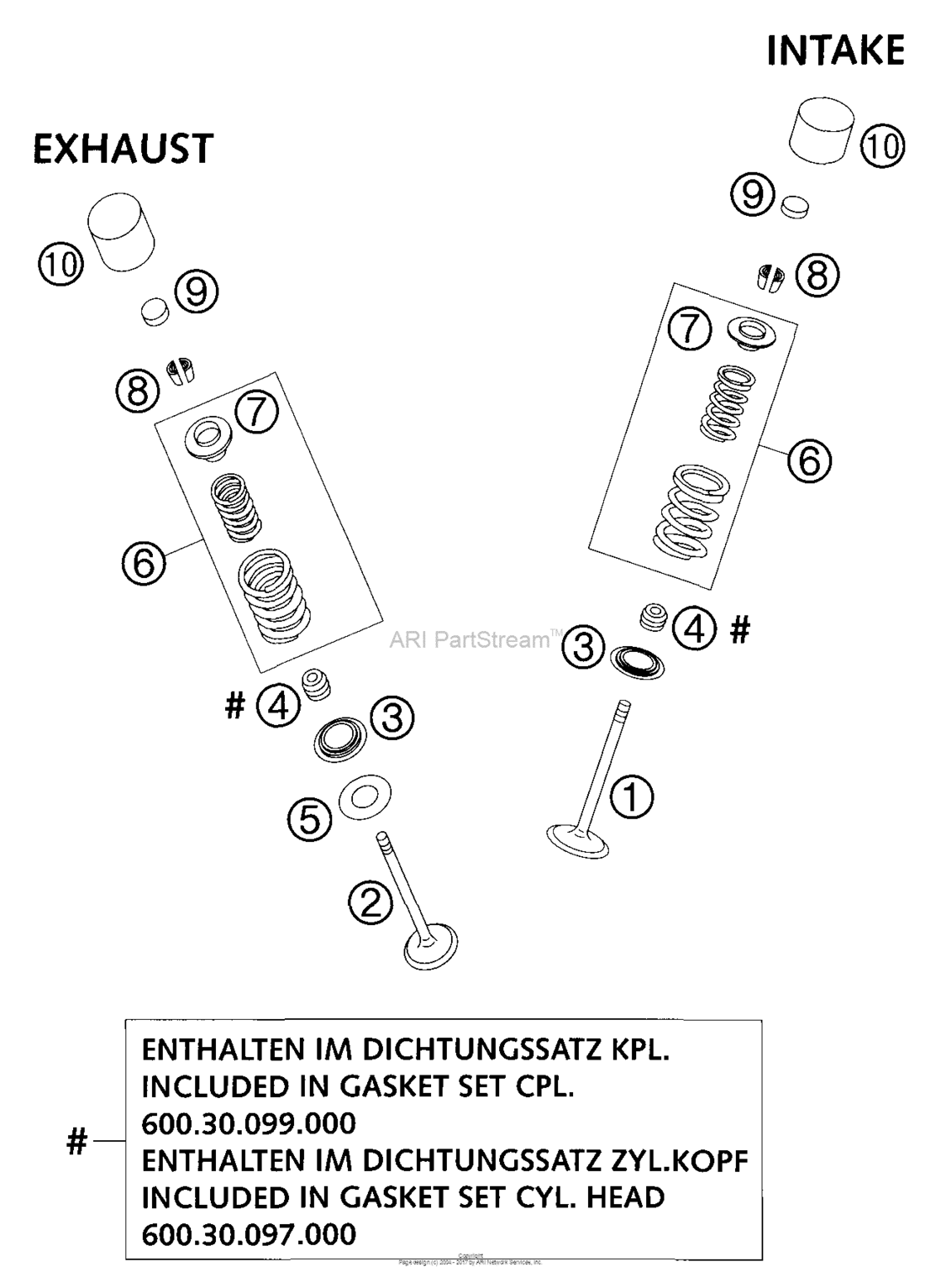

Valve Drive Diagram KTM 950 950 Adventure
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60036030000 Intake valve 03FOR SAS HOSE 03 |
60036030000 |
US $45.97 |
||
|
2
|
2
60036031000
Exhaust Valve 05
FOR SAS HOSE 03 |
60036031000 |
— | ||
| replacement | |||||
|
2
|
2
60036031100 Exhaust valve 05FOR SAS HOSE 03 |
60036031100 |
US $77.91 |
||
|
3
|
3
60036036000 Spring retainer 03FOR SAS HOSE 03 |
60036036000 |
US $6.68 |
||
|
4
|
4
59036027000 Valve-stem sealing racingFOR SAS HOSE 03 |
59036027000 |
US $7.70 |
||
|
5
|
5
60036037000 Washer 14/30/2 03FOR SAS HOSE 03 |
60036037000 |
US $1.09 |
||
|
6
|
6
60036029044 Valve spring kit lc8 2003FOR SAS HOSE 03 |
60036029044 |
US $42.14 |
||
|
7
|
7
60036032000 Valve-spring retainer 03FOR SAS HOSE 03 |
60036032000 |
US $11.58 |
||
|
8
|
8
60036033000 Valve collet mk6 03FOR SAS HOSE 03 |
60036033000 |
US $2.24 |
||
|
9
|
9
60036035230 Shim d=10/2,30 03FOR SAS HOSE 03 |
60036035230 |
US $5.47 |
||
|
9
|
9
60036035235 Shim d=10/2,35 03FOR SAS HOSE 03 |
60036035235 |
US $5.46 |
||
|
9
|
9
60036035240 Shim d=10/2,40 03FOR SAS HOSE 03 |
60036035240 |
US $5.47 |
||
|
9
|
9
60036035245 Shim d=10/2,45 03FOR SAS HOSE 03 |
60036035245 |
US $4.91 |
||
|
9
|
9
60036035250 Shim d=10/2,50 03FOR SAS HOSE 03 |
60036035250 |
US $7.09 |
||
|
9
|
9
60036035255 Shim d=10/2,55 03FOR SAS HOSE 03 |
60036035255 |
US $8.43 |
||
|
9
|
9
60036035260 Shim d=10/2,60 03FOR SAS HOSE 03 |
60036035260 |
US $4.91 |
||
|
9
|
9
60036035265 Shim d=10/2,65 03FOR SAS HOSE 03 |
60036035265 |
US $4.91 |
||
|
9
|
9
60036035270 Shim d=10/2,70 03FOR SAS HOSE 03 |
60036035270 |
US $4.91 |
||
|
9
|
9
60036035275 Shim d=10/2,75 03FOR SAS HOSE 03 |
60036035275 |
US $4.91 |
||
|
9
|
9
60036035280 Shim d=10/2,80 03FOR SAS HOSE 03 |
60036035280 |
US $4.91 |
||
|
9
|
9
60036035285 Shim d=10/2,85 03FOR SAS HOSE 03 |
60036035285 |
US $4.91 |
||
|
9
|
9
60036035290 Shim d=10/2,90 03FOR SAS HOSE 03 |
60036035290 |
US $4.91 |
||
|
9
|
9
60036035295 Shim d=10/2,95 03FOR SAS HOSE 03 |
60036035295 |
US $4.91 |
||
|
9
|
9
60036035300 Shim d=10/3,00 03FOR SAS HOSE 03 |
60036035300 |
US $7.09 |
||
|
9
|
9
60036035305 Shim d=10/3,05 03FOR SAS HOSE 03 |
60036035305 |
US $4.91 |
||
|
9
|
9
60036035310 Shim d=10/3,10 03FOR SAS HOSE 03 |
60036035310 |
US $4.91 |
||
|
9
|
9
60036035315 Shim d=10/3,15 03FOR SAS HOSE 03 |
60036035315 |
US $4.91 |
||
|
9
|
9
60036035320 Shim d=10/3,20 03FOR SAS HOSE 03 |
60036035320 |
US $4.91 |
||
|
10
|
10
60036034000 Bucket Tappet 05FOR SAS HOSE 03 |
60036034000 |
US $40 |
||
| replacement | |||||
|
10
|
10
61036034000 Bucket tappet 05FOR SAS HOSE 03 |
61036034000 |
US $38.03 |
||
