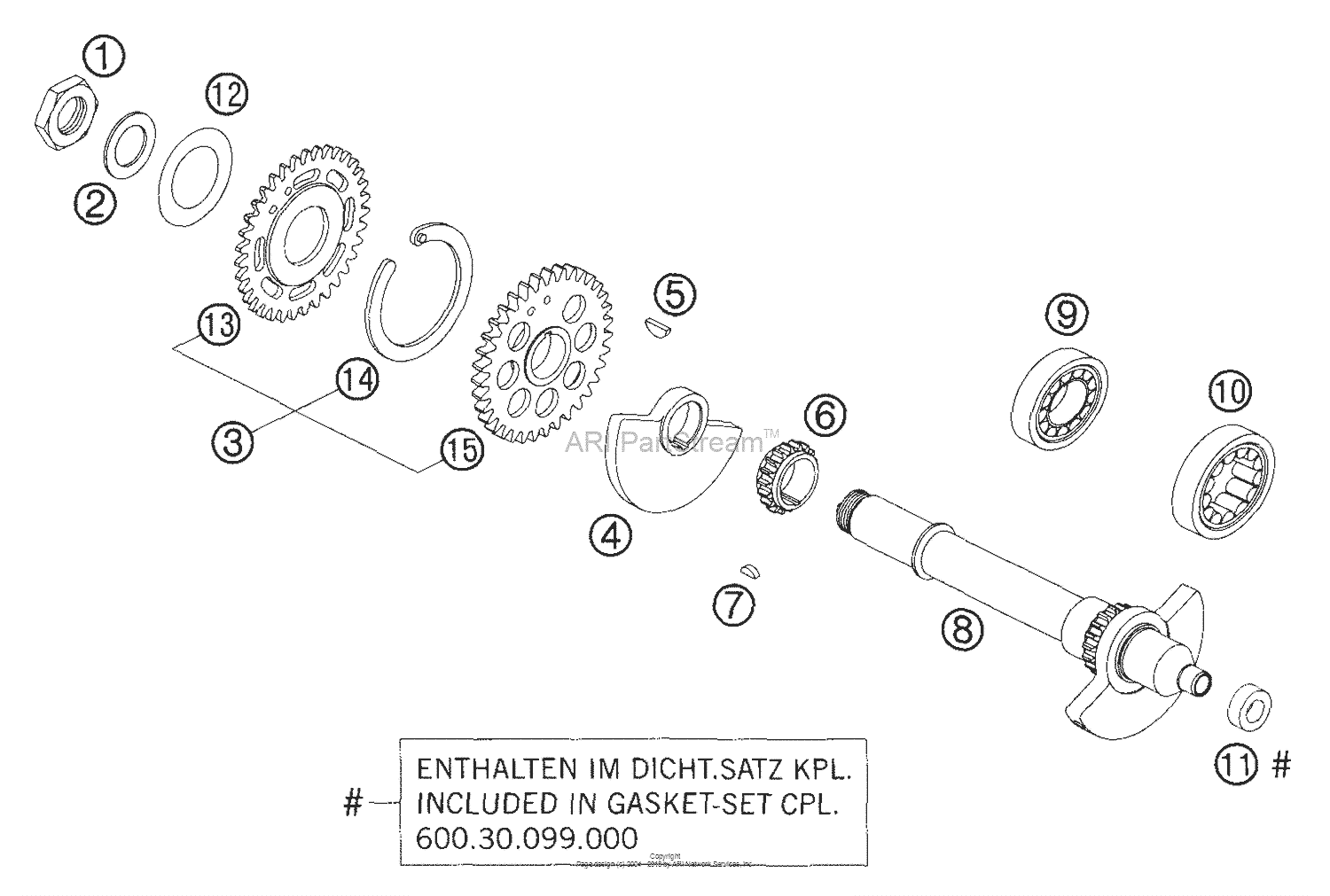

Balancer Shaft Diagram KTM 950 950 Adventure
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60036073150 Hexagon nut m20x1,5 h=6mm 05FOR SAS HOSE 03 |
60036073150 |
US $5.95 |
||
|
2
|
2
60033043000 Stop disk 20,2 x 34 x 1FOR SAS HOSE 03 |
60033043000 |
US $1.58 |
||
|
3
|
3
60036081000 Spread transmission 05FOR SAS HOSE 03 |
60036081000 |
US $153.70 |
||
|
4
|
4
60036074150
Balancer weight r/s 05
FOR SAS HOSE 03 |
60036074150 |
— | ||
|
5
|
5
0888040050 Woodruff key din6888 4x5x13FOR SAS HOSE 03 |
0888040050 |
US $3.43 |
||
|
6
|
6
60036014018 Timing gear 18-t 03FOR SAS HOSE 03 |
60036014018 |
US $46.21 |
||
|
7
|
7
0888030037 Woodruff key din6888-3x3,7FOR SAS HOSE 03 |
0888030037 |
US $0.58 |
||
|
8
|
8
60036073100 Timing valve jackshaft cpl.FOR SAS HOSE 03 |
60036073100 |
US $238.02 |
||
|
9
|
9
60030024000 Cyl. Roller Bear. Nup 204EFOR SAS HOSE 03 |
60030024000 |
US $97.46 |
||
| replacement | |||||
|
9
|
9
60030024100 Cyl. roller bear. nup 204eFOR SAS HOSE 03 |
60030024100 |
US $89.40 |
||
|
10
|
10
60030021000 Cyl.roller bearing 26,5x47x14FOR SAS HOSE 03 |
60030021000 |
US $44.06 |
||
|
11
|
11
0760122050 Shaft seal ring 12x20x5 bFOR SAS HOSE 03 |
0760122050 |
US $7.16 |
||
|
12
|
12
0093463006 Spring wash. 30,5x46,5x0,6-1,5FOR SAS HOSE 03 |
0093463006 |
US $3.04 |
||
|
13
|
13
60036083035 Clamping wheel 35-z 05FOR SAS HOSE 03 |
60036083035 |
US $46.56 |
||
|
14
|
14
60036081050 Tension spring 05FOR SAS HOSE 03 |
60036081050 |
US $11.85 |
||
|
15
|
15
60036082035 Drive wheel 35-t 05FOR SAS HOSE 03 |
60036082035 |
US $52.36 |
||
