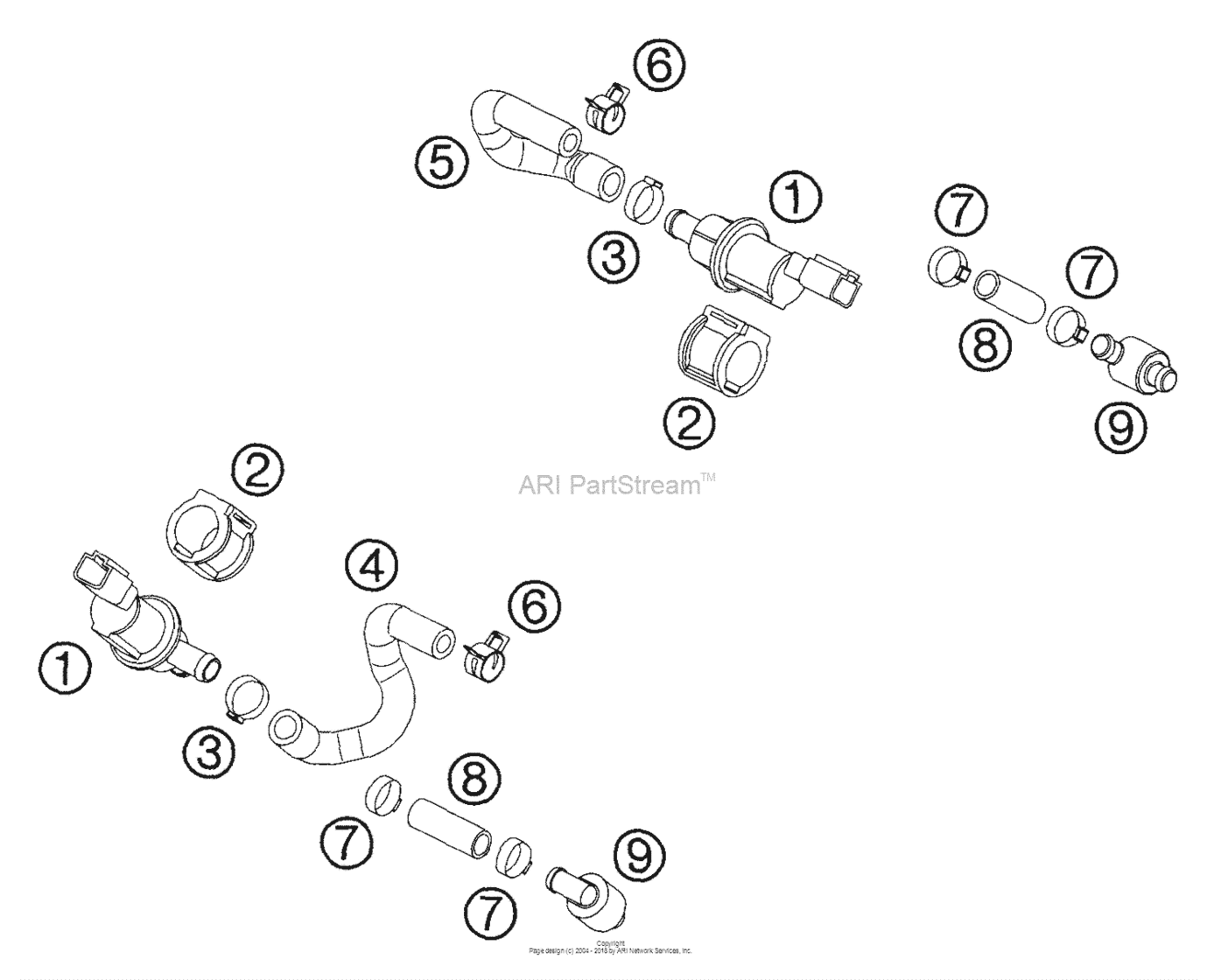

Electronic Power Control Diagram KTM 950 950 Adventure
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58431067000 Magnetic valve pirburg epc '981 |
58431067000 |
US $101.27 |
||
|
2
|
2
60031068000 Rubber support f. mag.valve 031 |
60031068000 |
US $6.56 |
||
|
3
|
3
00050210706 Variable one-ear clamp 21,0mm1 |
00050210706 |
US $1.96 |
||
|
4
|
4
60031071022 Hose 2 for epc 031 |
60031071022 |
US $21.83 |
||
|
5
|
5
60031071021 Hose 1 for epc 031 |
60031071021 |
US $20.09 |
||
|
6
|
6
00049160121 Clamp std dn161 |
00049160121 |
US $1.05 |
||
|
7
|
7
00050198706 Variable one-ear clamp 19,8mm1 |
00050198706 |
US $1.96 |
||
|
8
|
8
60031071023 Hose 3 for epc 031 |
60031071023 |
US $6.46 |
||
|
9
|
9
58431070000 Air Filter Lc4 '981 |
58431070000 |
US $23.44 |
||
| replacement | |||||
|
9
|
9
58431070100 Air filter lc4 for epc 20051 |
58431070100 |
US $16.69 |
||
