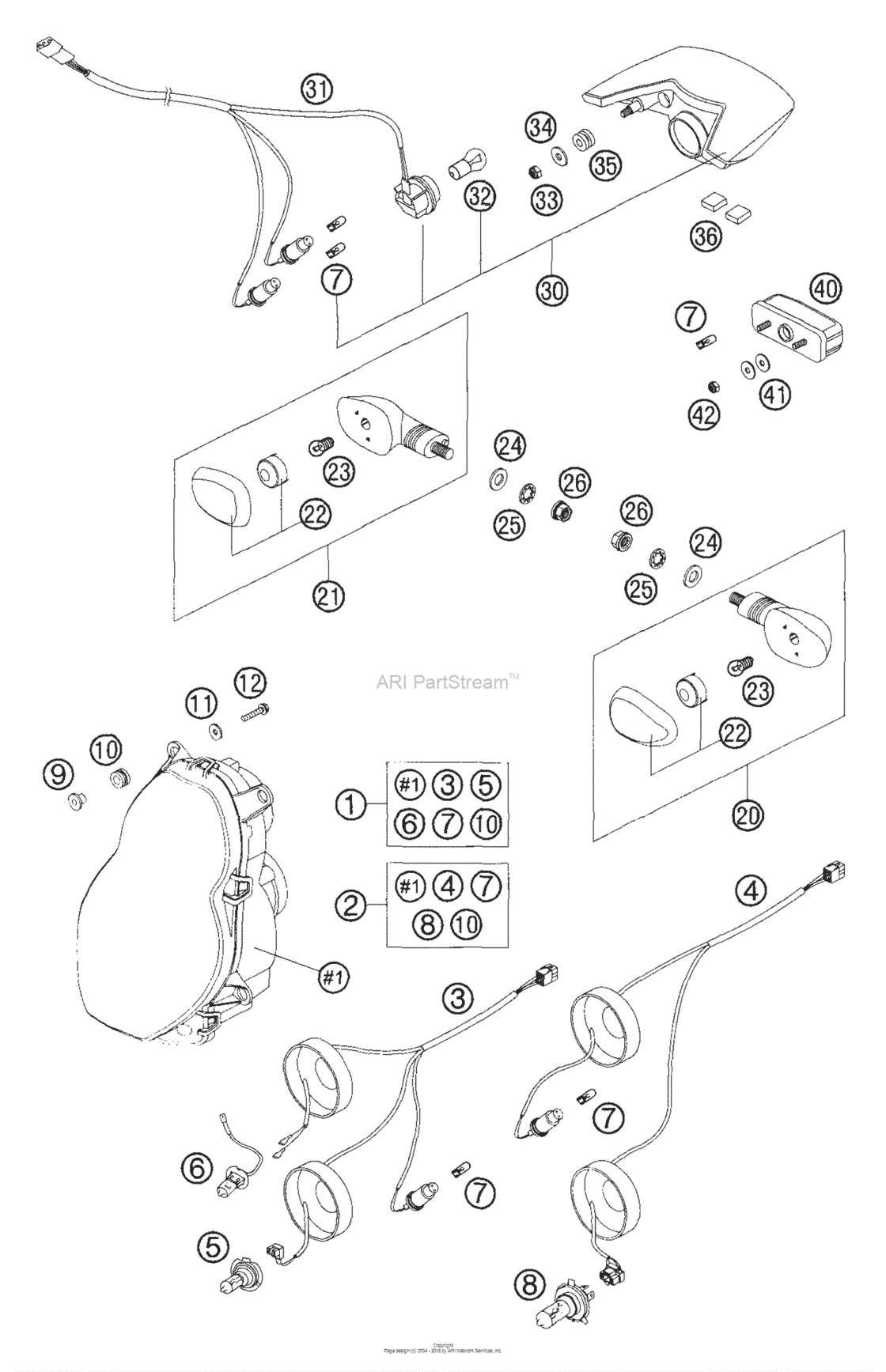

Lighting System Diagram KTM 950 950 Adventure S
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60014001000 Head light right tr. eu 03FOR BRAKE HOSE |
60014001000 |
US $291.47 |
||
|
1
|
1
60014501000
Head Light Left Traffic 03
FOR BRAKE HOSE |
60014501000 |
— | ||
|
2
|
2
60014801000 Head light right tr. usa 03FOR BRAKE HOSE |
60014801000 |
US $266.32 |
||
|
3
|
3
60014001050 Head light wiring harn. eu/gbFOR BRAKE HOSE |
60014001050 |
US $48.31 |
||
|
4
|
4
60014801050 Head light wiring harn. usaFOR BRAKE HOSE |
60014801050 |
US $36.11 |
||
|
5
|
5
60014003100 Bulb h7 12v 55wFOR BRAKE HOSE |
60014003100 |
US $30.92 |
||
|
6
|
6
60014003000 Bulb h3 12v 55wFOR BRAKE HOSE |
60014003000 |
US $11.17 |
||
|
7
|
7
49011435000 Bulb 12V 5W (W2,1X9,5D) PhilFOR BRAKE HOSE |
49011435000 |
US $4.27 |
||
| replacement | |||||
|
7
|
7
49011435100 Bulb 12V 5W (W2,1X9,5D) PhilFOR BRAKE HOSE |
49011435100 |
US $3.81 |
||
|
8
|
8
57111038000 Bulb h4 12v 60/55w (p43t)FOR BRAKE HOSE |
57111038000 |
US $44.46 |
||
|
9
|
9
60014007000 Spacer bushing head light 03FOR BRAKE HOSE |
60014007000 |
US $2.31 |
||
|
10
|
10
31008008000 Rubber grommit blackFOR BRAKE HOSE |
31008008000 |
US $1.19 |
||
|
11
|
11
0021050003 Washer din9021-a 5,3FOR BRAKE HOSE |
0021050003 |
US $1.29 |
||
|
12
|
12
0016050253 Screw For Plastic 03FOR BRAKE HOSE |
0016050253 |
US $0.44 |
||
|
20
|
20
58414025100 Flasher cpl.front l/s rear r/sFOR BRAKE HOSE |
58414025100 |
US $32.90 |
||
|
21
|
21
58414026100 Flasher cpl.front r/s rear l/sFOR BRAKE HOSE |
58414026100 |
US $32.54 |
||
|
22
|
22
58414028100 Flasher lens l/s & r/s 02FOR BRAKE HOSE |
58414028100 |
US $6.58 |
||
|
23
|
23
44111015100 Bulb 12v 10w (ba15s)FOR BRAKE HOSE |
44111015100 |
US $2.30 |
||
|
24
|
24
0125100003 Washer Din0125-A10,5FOR BRAKE HOSE |
0125100003 |
US $1.19 |
||
|
25
|
25
0797100003 Lock washer din6797-j10,5 ziFOR BRAKE HOSE |
0797100003 |
US $0.65 |
||
|
26
|
26
58414030000 Hh collar nut m10x1,25 ws=13FOR BRAKE HOSE |
58414030000 |
US $2.60 |
||
|
30
|
30
60014040000 Rear light cpl. 03FOR BRAKE HOSE |
60014040000 |
US $113.12 |
||
|
31
|
31
60011077000 Wiring harness rear light 05FOR BRAKE HOSE |
60011077000 |
US $29.95 |
||
|
32
|
32
60014048000 Bulb 12v 21wFOR BRAKE HOSE |
60014048000 |
US $4.56 |
||
|
33
|
33
0985060003 Self Lock. Nut Din0985-M 6FOR BRAKE HOSE |
0985060003 |
US $2.60 |
||
|
34
|
34
0021060003 Washer Din9021-A 6,4FOR BRAKE HOSE |
0021060003 |
US $3.26 |
||
|
35
|
35
58214069051 Rubber Grommet 16X10,8X3 02FOR BRAKE HOSE |
58214069051 |
US $4.52 |
||
|
36
|
36
60014040050 Bump rubber 20x20x6 mm 03FOR BRAKE HOSE |
60014040050 |
US $1.84 |
||
|
40
|
40
58414047000 License-plate illumination '98FOR BRAKE HOSE |
58414047000 |
US $13.69 |
||
|
41
|
41
0021050003 Washer din9021-a 5,3FOR BRAKE HOSE |
0021050003 |
US $1.29 |
||
|
42
|
42
0985050003 Self Locking Nut Din0985-M 5FOR BRAKE HOSE |
0985050003 |
US $3.26 |
||
