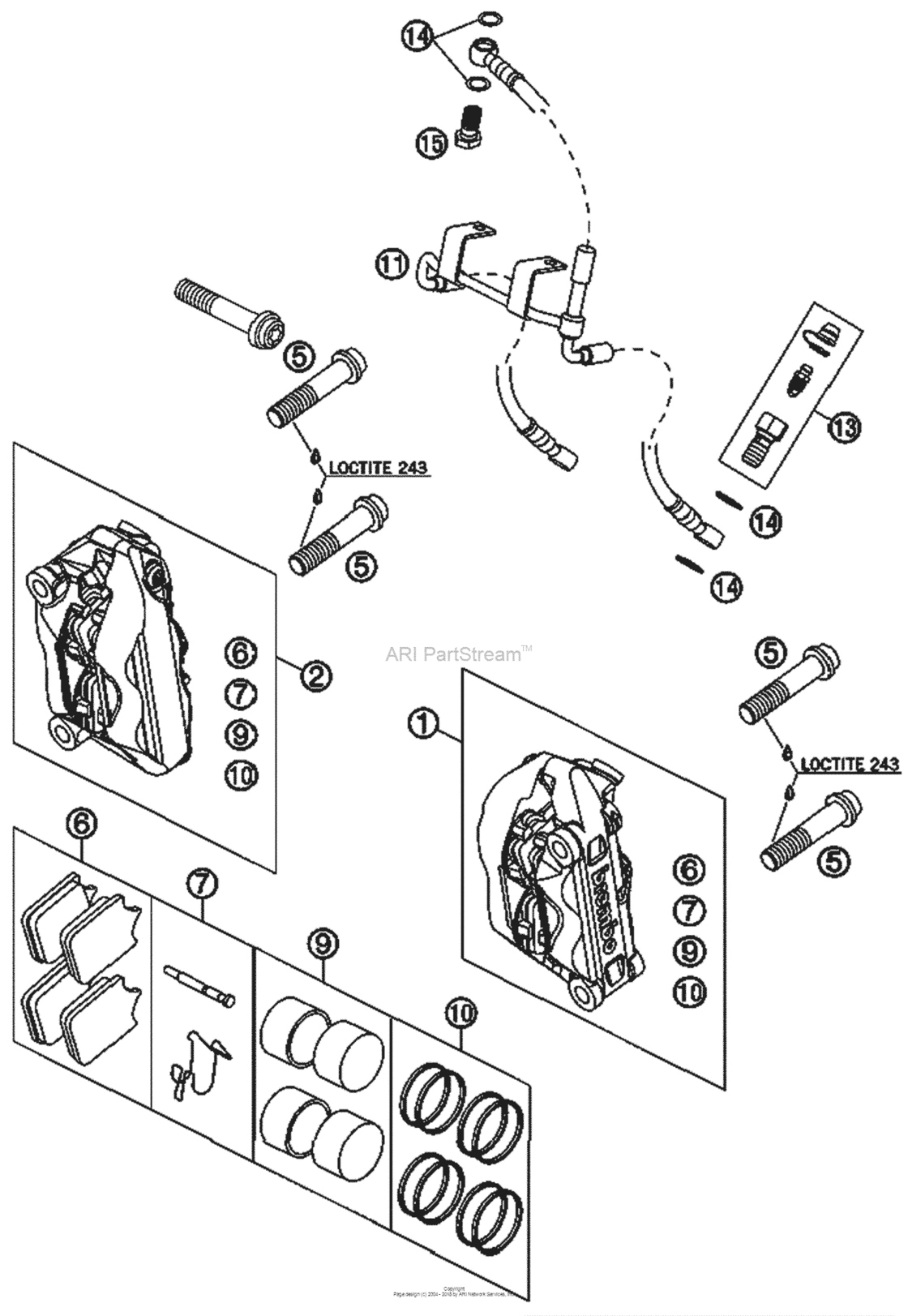

Break Caliper Front Diagram KTM 950 950 Super Moto
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Super Moto
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62513015000
Caliper L/s Nat. Without Pads
As Required |
62513015000 |
— | ||
| replacement | |||||
|
1
|
1
6251301500101 Caliper l/s nat. without padsAs Required |
6251301500101 |
US $265.98 |
||
|
2
|
2
62513016000
Brake caliper radial r/s 05
As Required |
62513016000 |
— | ||
| replacement | |||||
|
2
|
2
6251301600101 Caliper r/s nat. without padsAs Required |
6251301600101 |
US $375.33 |
||
|
5
|
5
0035100559 Ah-collar screw m10x1,25x55As Required |
0035100559 |
US $4.35 |
||
| replacement | |||||
|
5
|
5
0035100559S Ah-Collar Screw M10X1,25X55SsAs Required |
0035100559S |
US $1.94 |
||
|
6
|
6
61013030000 Brake pad fr. toshiba tt2172hhAs Required |
61013030000 |
US $91.89 |
||
|
7
|
7
61013018000 Pins + springs f. brakecaliperAs Required |
61013018000 |
US $26.64 |
||
|
9
|
9
61013019000 Brake pistons 4xAs Required |
61013019000 |
US $69.62 |
||
|
10
|
10
61013019100 Rep.kit sealing rings 4xAs Required |
61013019100 |
US $29.27 |
||
|
11
|
11
62513012000 Brake pipe front cpl. 05As Required |
62513012000 |
US $145.04 |
||
|
13
|
13
62513020000 Bleeder Screw Cpl. 05As Required |
62513020000 |
US $30.16 |
||
|
14
|
14
42013226000 Cu-Seal Ring Din7603-10X16X1As Required |
42013226000 |
US $4.10 |
||
|
15
|
15
50213025000 Hollow Screw M10X1X19As Required |
50213025000 |
US $5.39 |
||
