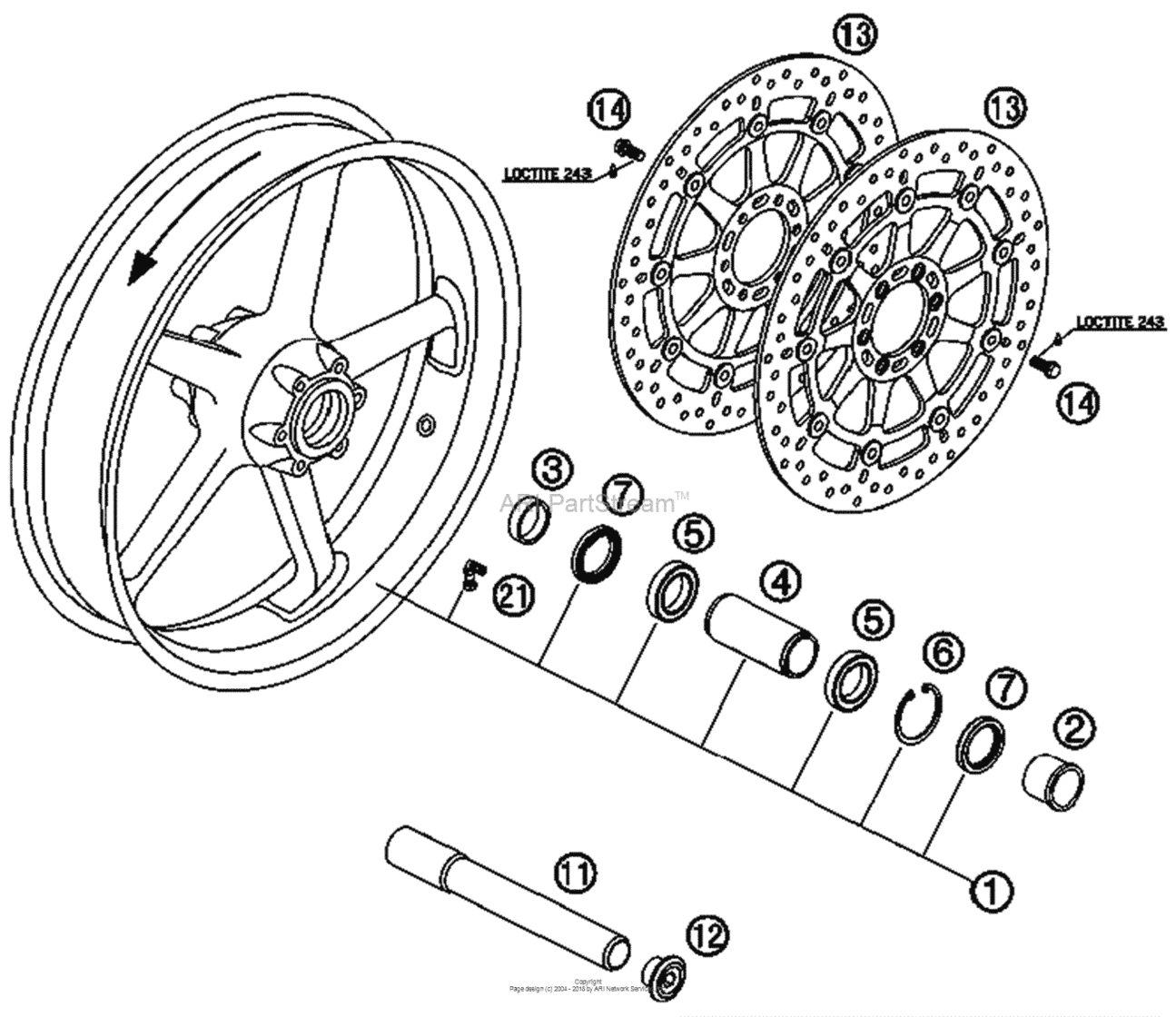

Front Wheel Diagram KTM 950 950 Super Moto
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Super Moto
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61009001044
Front wheel cpl. 05
98 |
61009001044 |
— | ||
| replacement | |||||
|
1
|
1
6100900114457 FRONT WHEEL CPL. GREY98 |
6100900114457 |
US $887.81 |
||
|
2
|
2
61009012000 Spacer bush. fr. wheel l/s 0598 |
61009012000 |
US $20.20 |
||
|
3
|
3
60009013000 Spacer bush. fr. wheel r/s 0398 |
60009013000 |
US $12.75 |
||
|
4
|
4
61009011000 Bearing spacer tube front 0598 |
61009011000 |
US $20.09 |
||
|
5
|
5
0625069068 Gr.ball Bear.6906 Ddu2Cg23S6Nm98 |
0625069068 |
US $44.68 |
||
|
6
|
6
0472048175 Lock ring din0472-48x1,7598 |
0472048175 |
US $1.19 |
||
|
7
|
7
0760354771 Shaft seal ring 35x47x7 tc98 |
0760354771 |
US $11.19 |
||
|
11
|
11
61009081000 Wheel spindel front 0598 |
61009081000 |
US $77.18 |
||
|
12
|
12
61009082000 Ah screw m25x1,5 ws=12 0598 |
61009082000 |
US $18.51 |
||
|
13
|
13
62509060000 Brake disk d=305mm 0598 |
62509060000 |
US $339.90 |
||
|
14
|
14
61009062018 Special screw m8x18 0598 |
61009062018 |
US $3.94 |
||
|
21
|
21
61009076000 Valve angled 90 (05)98 |
61009076000 |
US $20.81 |
||
