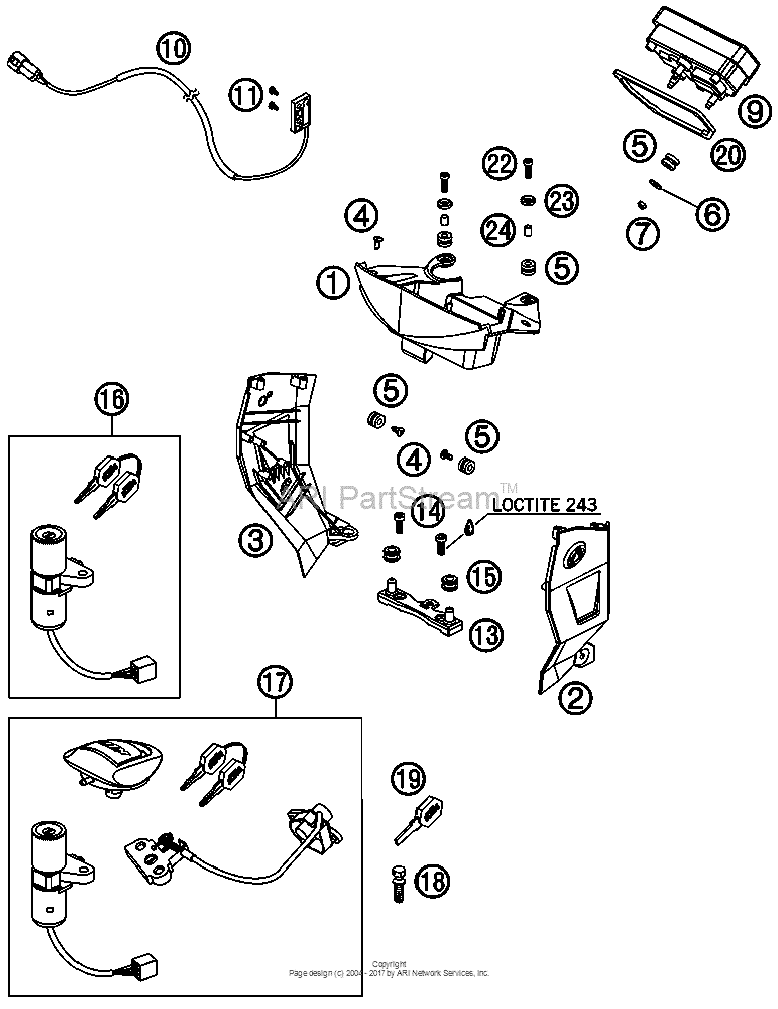

Speedometer Diagram KTM 950 950 Super Moto
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Super Moto
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62514061000 Speedometer bracket 05As Required |
62514061000 |
US $46.46 |
||
|
2
|
2
62514062000 Mask bracket l/s 05As Required |
62514062000 |
US $25.08 |
||
|
3
|
3
62514063000 Mask bracket r/s 05As Required |
62514063000 |
US $25.08 |
||
|
4
|
4
0016050121
Screw for plastic 50x12
As Required |
0016050121 |
— | ||
| replacement | |||||
|
4
|
4
0081050121 Screw for plastic k50x12 t20As Required |
0081050121 |
US $1.19 |
||
|
5
|
5
58214069051 Rubber Grommet 16X10,8X3 02As Required |
58214069051 |
US $4.52 |
||
|
6
|
6
0021050003 Washer din9021-a 5,3As Required |
0021050003 |
US $1.29 |
||
|
7
|
7
0985050003 Self Locking Nut Din0985-M 5As Required |
0985050003 |
US $3.26 |
||
|
9
|
9
61014069000
Digital speedometer 05
As Required |
61014069000 |
— | ||
|
10
|
10
62514068000
Speedometer sensor 05
As Required |
62514068000 |
— | ||
| replacement | |||||
|
10
|
10
62514068200 Speedometer Sensor 10As Required |
62514068200 |
US $82.47 |
||
|
11
|
11
0084040083 Cyl.head screw din0084-m 4x8 aAs Required |
0084040083 |
US $0.27 |
||
|
13
|
13
62514064000 Mask support bottom 05As Required |
62514064000 |
US $8.69 |
||
|
14
|
14
0984060163 Ah Screw Din6912-M 6X16As Required |
0984060163 |
US $1.24 |
||
|
15
|
15
60039030000 Vibration damper digitalbox 03As Required |
60039030000 |
US $2.43 |
||
|
16
|
16
58411066100
Ignition Lock
'99 |
58411066100 |
— | ||
| replacement | |||||
|
16
|
16
75011166000 Ignition lock'99 |
75011166000 |
US $151.69 |
||
|
17
|
17
62511066044
Lock System 07
'99 |
62511066044 |
— | ||
| replacement | |||||
|
17
|
17
62511066144 Lock system 07'99 |
62511066144 |
US $309.71 |
||
|
18
|
18
60011064000 Tamperproof screw f. ign. lock'99 |
60011064000 |
US $3.67 |
||
|
19
|
19
40011166100 Key blank lc4/duke/lc8'99 |
40011166100 |
US $17.60 |
||
| replacement | |||||
|
19
|
19
76911067010 Key Blank Lc4/Duke/Lc8'99 |
76911067010 |
US $16.61 |
||
|
20
|
20
60014068000 Damping ring tachometer 03'99 |
60014068000 |
US $5.92 |
||
|
22
|
22
0984060252 Ah screw din6912 m6x25'99 |
0984060252 |
US $1.73 |
||
|
23
|
23
60008045000 Special washer d=16,5mm 03'99 |
60008045000 |
US $3.38 |
||
|
24
|
24
62514037000 Spacer bushing 6,2x7,5x10,3 05'99 |
62514037000 |
US $2.75 |
||
