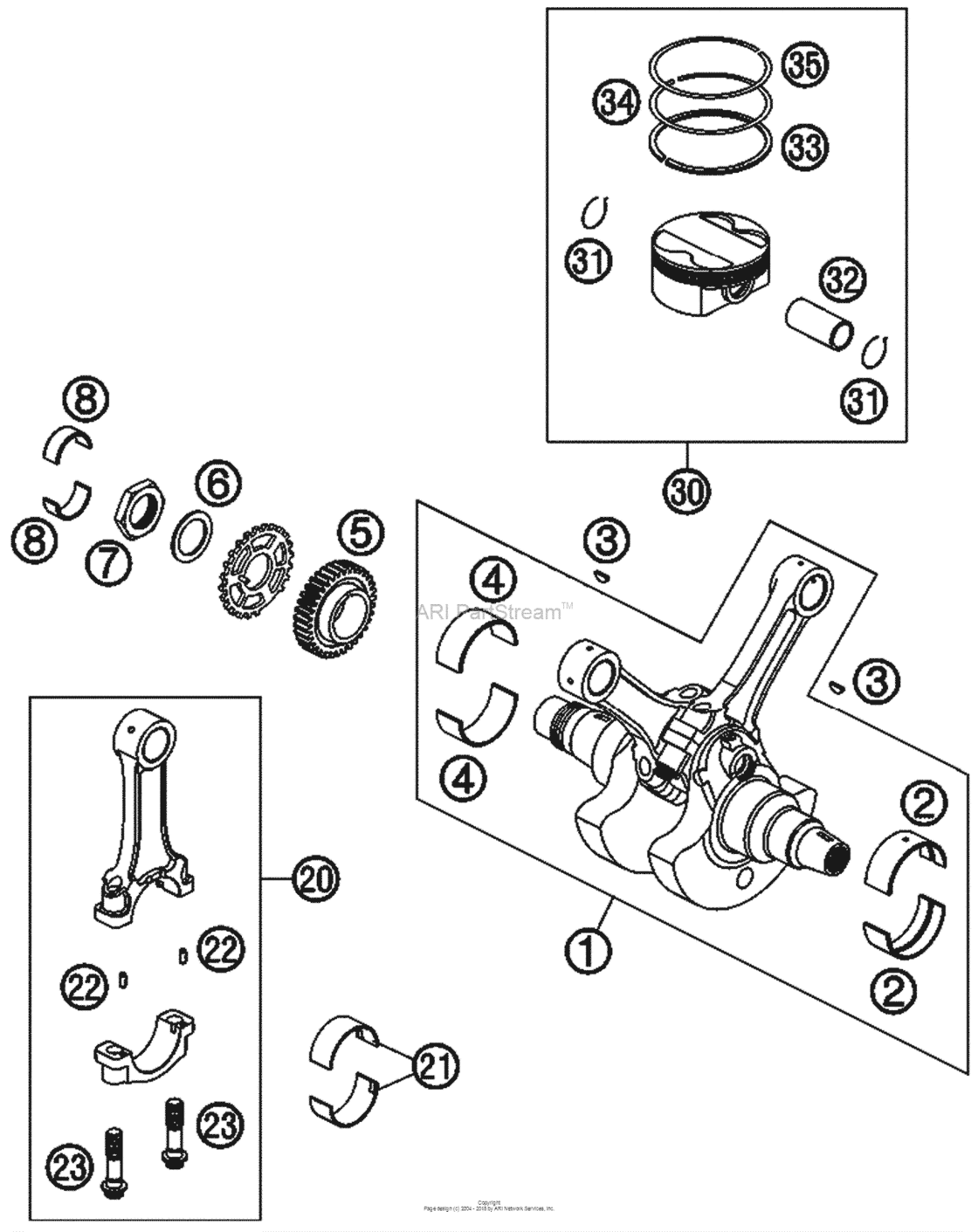

Crankshaft, Piston Diagram KTM 950 950 Super Moto
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Super Moto
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60030018200
Crankshaft Cpl. 600-3 06
2000 |
60030018200 |
— | ||
| replacement | |||||
|
1
|
1
60030018300 Crankshaft cpl. 600-3 062000 |
60030018300 |
US $1,041.52 |
||
|
2
|
2
600300820001
Split bear.bush size 1 red 03
As Required |
600300820001 |
— | ||
|
2
|
2
600300820002
Split bear.bush size 2 blue 03
As Required |
600300820002 |
— | ||
|
2
|
2
600300820003
Split bear.bush size 3 yell.03
As Required |
600300820003 |
— | ||
|
3
|
3
0888040050 Woodruff key din6888 4x5x13As Required |
0888040050 |
US $3.43 |
||
|
4
|
4
600301820001
Split bear.bush size 1 red 03
As Required |
600301820001 |
— | ||
|
4
|
4
600301820002
Split bear.bush size 2 blue 03
As Required |
600301820002 |
— | ||
|
4
|
4
600301820003
Split bear.bush size 3 yell.03
As Required |
600301820003 |
— | ||
|
5
|
5
60032023035
Primary pinion 35 t 03
As Required |
60032023035 |
— | ||
|
6
|
6
60032009040 Washer 33,2x46x2 03As Required |
60032009040 |
US $2.50 |
||
|
7
|
7
60032009050 Hh-nut m33x1,5 l/s ws46 03As Required |
60032009050 |
US $14.91 |
||
|
8
|
8
60030026010 Bushing bowl 28x32x13 03As Required |
60030026010 |
US $15.35 |
||
|
20
|
20
60030013144
Connecting Rod Cpl
As Required |
60030013144 |
— | ||
| replacement | |||||
|
20
|
20
60030013244 Connecting rod cpl. 06As Required |
60030013244 |
US $214.39 |
||
|
21
|
21
60030013051 Bush.bowl pack. size 1 red 03As Required |
60030013051 |
US $56.37 |
||
|
21
|
21
60030013052 Bush.bowl pack. size 2 blue 03As Required |
60030013052 |
US $62.63 |
||
|
21
|
21
60030013053 Bush.bowl pack. size 3 yell.03As Required |
60030013053 |
US $57.22 |
||
|
22
|
22
60030015061 Cylinder pin 03As Required |
60030015061 |
US $1.60 |
||
|
23
|
23
60030015160
Connecting-Rod Bolt Mj10X1 06
As Required |
60030015160 |
— | ||
| replacement | |||||
|
23
|
23
60030015260 Connecting-rod bolt mj10x1 06As Required |
60030015260 |
US $18.26 |
||
|
30
|
30
60030007000I
Piston d=100 03
As Required |
60030007000I |
— | ||
|
30
|
30
60030007000II
Piston d=100 03
As Required |
60030007000II |
— | ||
|
31
|
31
58430074000 Circlip 22 x 1,6As Required |
58430074000 |
US $9.45 |
||
|
32
|
32
58330833000 Piston pin 22 x 13 x 60As Required |
58330833000 |
US $47.82 |
||
|
33
|
33
60030032000
Oil Scraper Ring D=100Mm 03
As Required |
60030032000 |
— | ||
|
34
|
34
60030031000 Piston ring middle d=100mm 03As Required |
60030031000 |
US $22.85 |
||
|
35
|
35
60030030000
L-piston ring d=100mm 1,3mm
As Required |
60030030000 |
— | ||
