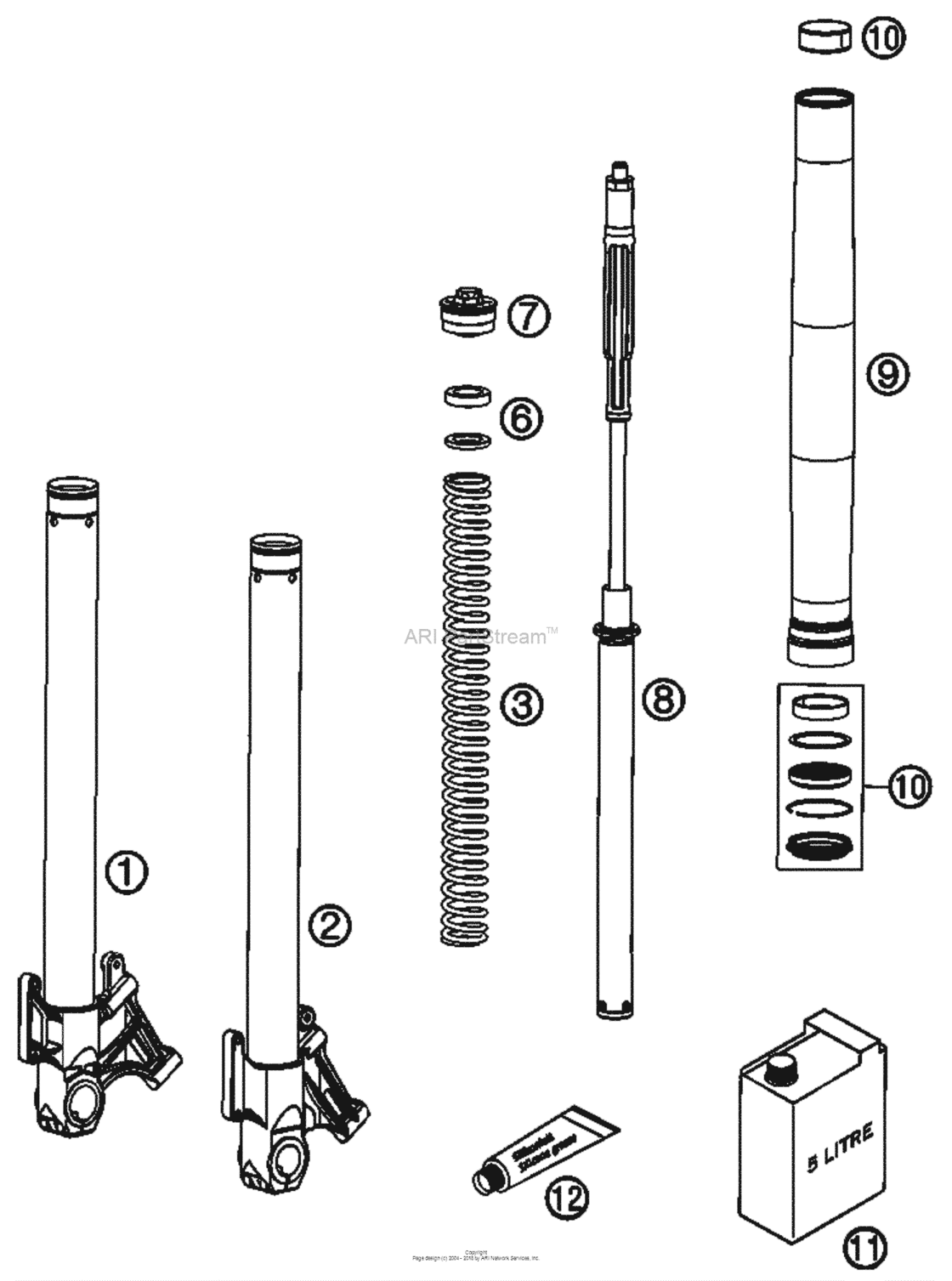

Fork Legs Diagram KTM 950 950 Super Moto
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Super Moto
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48600482S1 Axle clamp r/s cpl. 05'97 |
48600482S1 |
US $728.67 |
||
|
2
|
2
48600483S1 Axle clamp l/s cpl. 05'97 |
48600483S1 |
US $728.67 |
||
|
3
|
3
91410044S Spring c=5,6 l=450 d=5,5 05'97 |
91410044S |
US $183.70 |
||
|
6
|
6
48600036 Spacer 42x26,5x2,5'97 |
48600036 |
US $6.48 |
||
|
6
|
6
48600037 Spacer 42x26,5x5'97 |
48600037 |
US $6.41 |
||
|
6
|
6
48600053 Spacer 42X26,5X1,5'97 |
48600053 |
US $7.09 |
||
|
7
|
7
48600431S Pre-load adj. cpl. m51x1,5 05'97 |
48600431S |
US $148.36 |
||
|
8
|
8
48600502S Cartridge cpl.for spring d5.25'97 |
48600502S |
US $850.31 |
||
|
9
|
9
48600484 Outer tube l=500mm d=54/60'97 |
48600484 |
US $431.21 |
||
| replacement | |||||
|
9
|
9
48601099 Outer Tube L=550 D54/d60 3L'97 |
48601099 |
US $366.72 |
||
|
10
|
10
R14011 Repair-kit gasket 05'97 |
R14011 |
US $259.54 |
||
| replacement | |||||
|
10
|
10
R14013 Repair-kit exc front fork06/07'97 |
R14013 |
US $123.25 |
||
|
11
|
11
48600401S1 Fork Oil Sae4 5L2005 |
48600401S1 |
US $273.85 |
||
| replacement | |||||
|
11
|
11
48601166S1 Fork Oil Sae4 5L2005 |
48601166S1 |
US $218.08 |
||
|
12
|
12
T511 Silicone grease f. dust stri2005 |
T511 |
US $132.91 |
||
