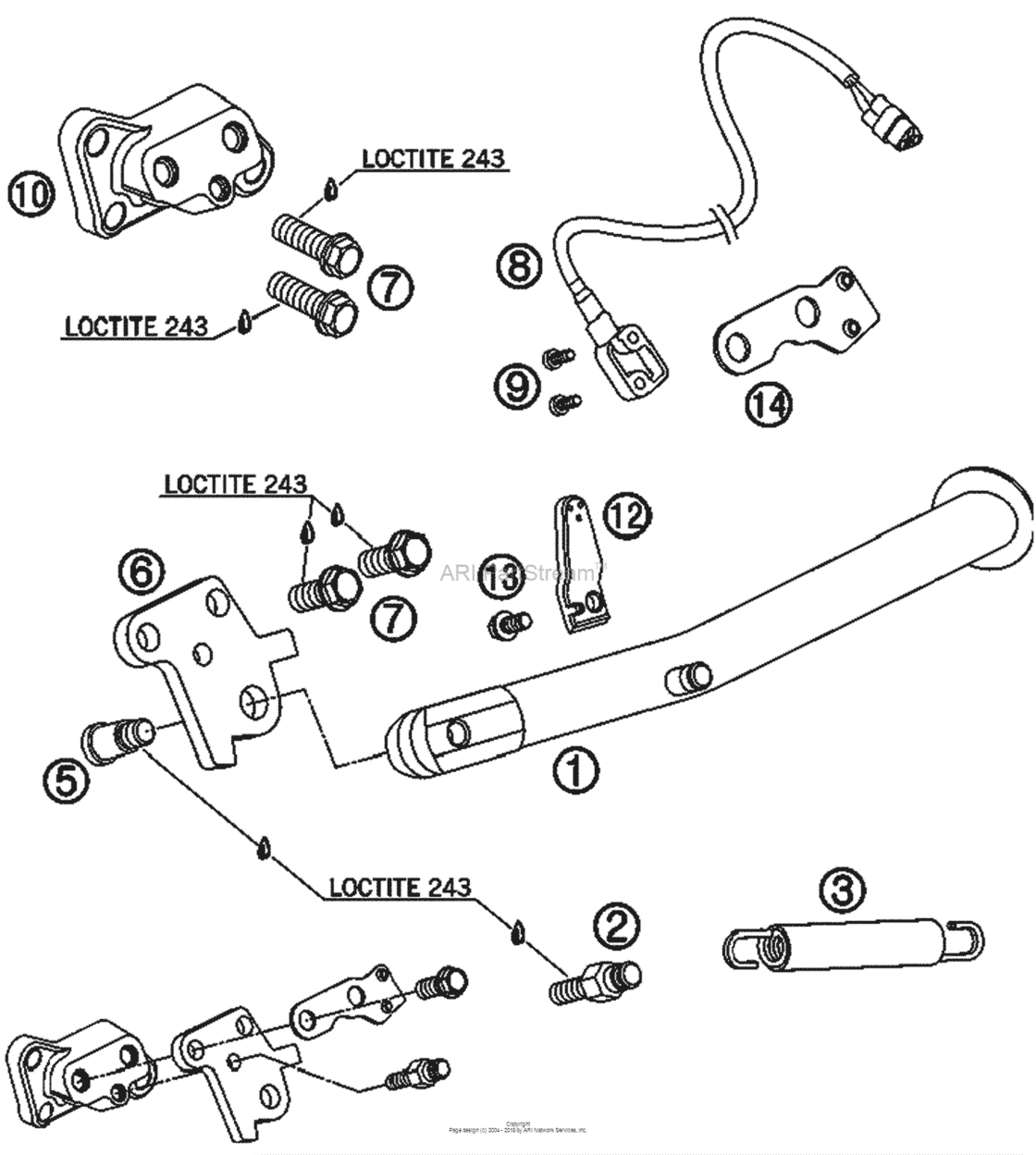

Side Stand Diagram KTM 950 950 Super Moto
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Super Moto
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6250302300093 Side stand l=236mm 05As Required |
6250302300093 |
US $87.28 |
||
|
2
|
2
61003028001 Screw side stand spring 05As Required |
61003028001 |
US $9.04 |
||
|
3
|
3
61003024000 Spring l=116 mm 05As Required |
61003024000 |
US $15.11 |
||
|
5
|
5
62503027100 Screw f. side stand m10x31,2As Required |
62503027100 |
US $8.50 |
||
| replacement | |||||
|
5
|
5
62503027200 Screw for side stand m10x31,2As Required |
62503027200 |
US $5.73 |
||
|
6
|
6
62503028010 Side stand pickup 05As Required |
62503028010 |
US $17.87 |
||
|
7
|
7
0015100303 Hh collar screw m10x30 ws=13As Required |
0015100303 |
US $1.97 |
||
|
8
|
8
61011045000 Side stand sensor 05As Required |
61011045000 |
US $52.22 |
||
|
9
|
9
0084040103 Cyl.head screw din84a m4x10As Required |
0084040103 |
US $2.11 |
||
|
10
|
10
61003026000 Side stand bracket 05As Required |
61003026000 |
US $51.39 |
||
|
12
|
12
62503029050 Magnet holder 05As Required |
62503029050 |
US $4.61 |
||
|
13
|
13
0015060123
Hh Collar Screw M 6X12 Ws=8
As Required |
0015060123 |
— | ||
| replacement | |||||
|
13
|
13
0025060126 Hh collar screw m6x12 tx30As Required |
0025060126 |
US $3.96 |
||
|
14
|
14
62503029000 Support side stand switch 05As Required |
62503029000 |
US $10.17 |
||
