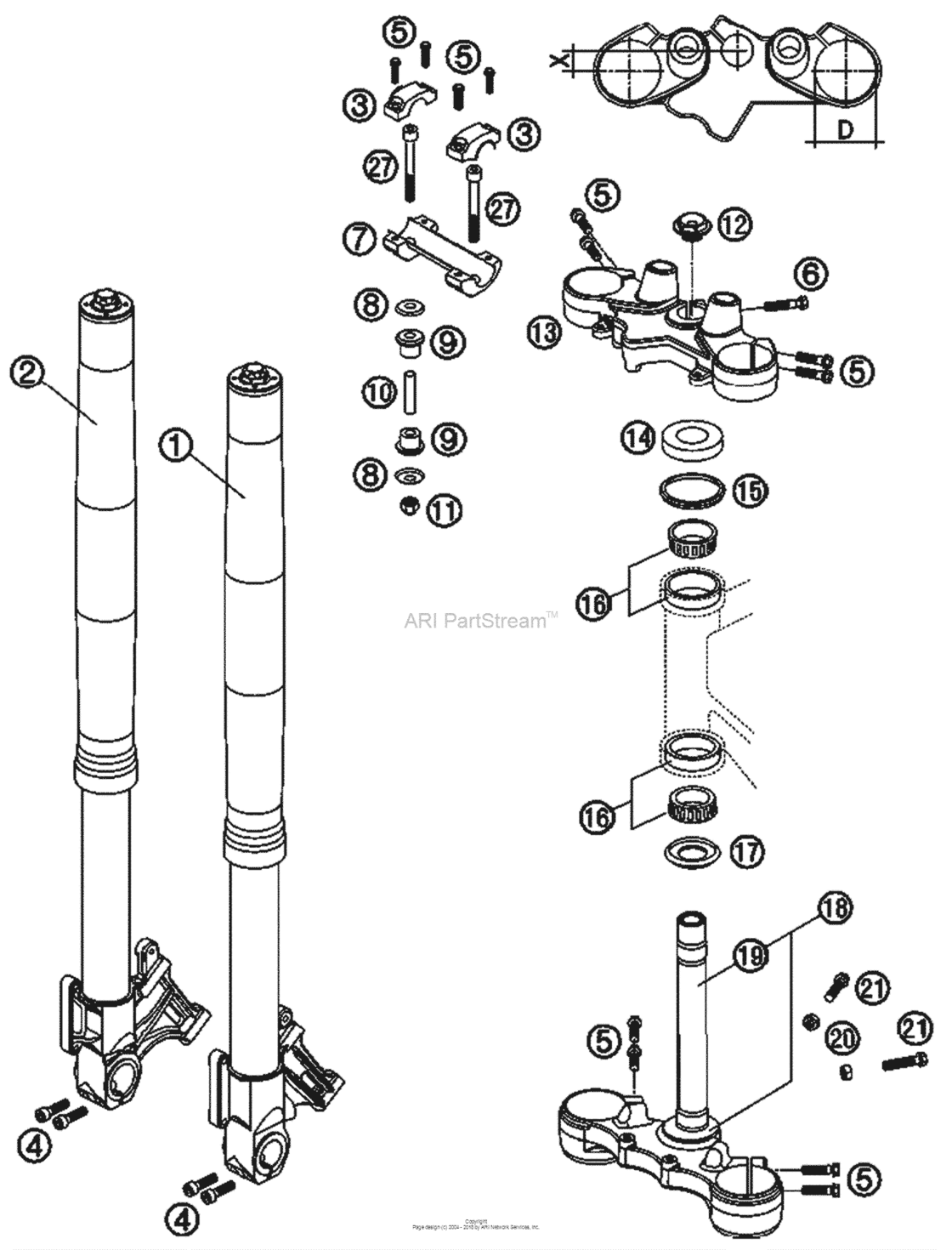

Telescopic Fork Diagram KTM 950 950 Super Moto
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Super Moto
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14187B20LS
Front Fork Wp 950 Supermoto 07
As Required |
14187B20LS |
— | ||
| replacement | |||||
|
1
|
1
14187C20
Front fork wp 950 supermoto 07
As Required |
14187C20 |
— | ||
|
2
|
2
14187B20RS
Front Fork Wp 950 Supermoto 07
As Required |
14187B20RS |
— | ||
| replacement | |||||
|
2
|
2
14187C20
Front fork wp 950 supermoto 07
As Required |
14187C20 |
— | ||
|
3
|
3
59001038300 Handlebar clamp 28mm elox. 05As Required |
59001038300 |
US $22.22 |
||
|
4
|
4
0912080303 Ah Screw Din0912-M 8X30As Required |
0912080303 |
US $1.50 |
||
|
5
|
5
0015080303
Hh Collar Screw M8X30 Tx40
As Required |
0015080303 |
— | ||
| replacement | |||||
|
5
|
5
0025080306 Hh collar screw m8x30 tx40As Required |
0025080306 |
US $3.89 |
||
|
6
|
6
0015080353 Hh Collar Screw M 8X35 Ws=10As Required |
0015080353 |
US $7.12 |
||
|
7
|
7
59001039200
Handlebar Support 28Mm 07
As Required |
59001039200 |
— | ||
| replacement | |||||
|
7
|
7
5900103920001S Handlebar support 28mm 07As Required |
5900103920001S |
US $68.12 |
||
|
8
|
8
56401042000 Washer 10,5x32x2As Required |
56401042000 |
US $4.71 |
||
|
9
|
9
56401040000 Rubber bushingAs Required |
56401040000 |
US $6.73 |
||
|
10
|
10
56401041100 Spacer tube 10,2x12x44As Required |
56401041100 |
US $5.25 |
||
|
11
|
11
0982100003 Self lock.nut din0982-m10 highAs Required |
0982100003 |
US $2.35 |
||
|
12
|
12
54801036200 Steer.head screw m20x1,5 sw=27As Required |
54801036200 |
US $12.72 |
||
|
13
|
13
62501034030 Top triple clamp 05As Required |
62501034030 |
US $184.30 |
||
|
14
|
14
54201086000 Steering Head CoverAs Required |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
14
|
14
78101086000 Steering Head CoverAs Required |
78101086000 |
US $5.08 |
||
|
15
|
15
54601184000 Stearing head gasket topAs Required |
54601184000 |
US $7.74 |
||
|
16
|
16
54201081100 Tapered Roller Bearing Cpl. 06As Required |
54201081100 |
US $53.18 |
||
|
17
|
17
54601084100 O-Ring Support W. Sealing LipAs Required |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
17
|
17
77701084000 O-Ring Support W. Sealing LipAs Required |
77701084000 |
US $21.15 |
||
|
18
|
18
62501032030
Bot.triple clamp cpl. 05
As Required |
62501032030 |
— | ||
|
19
|
19
60001033000 Fork tube lc8 adv 03As Required |
60001033000 |
US $60.45 |
||
|
20
|
20
0934080003 Hexagon Nut Din0934-M 8As Required |
0934080003 |
US $3.26 |
||
|
21
|
21
0933080303 Hh screw din0933-m 8x30As Required |
0933080303 |
US $1.19 |
||
|
27
|
27
0984100703 Ah screw din6912-m10x70As Required |
0984100703 |
US $6.92 |
||
