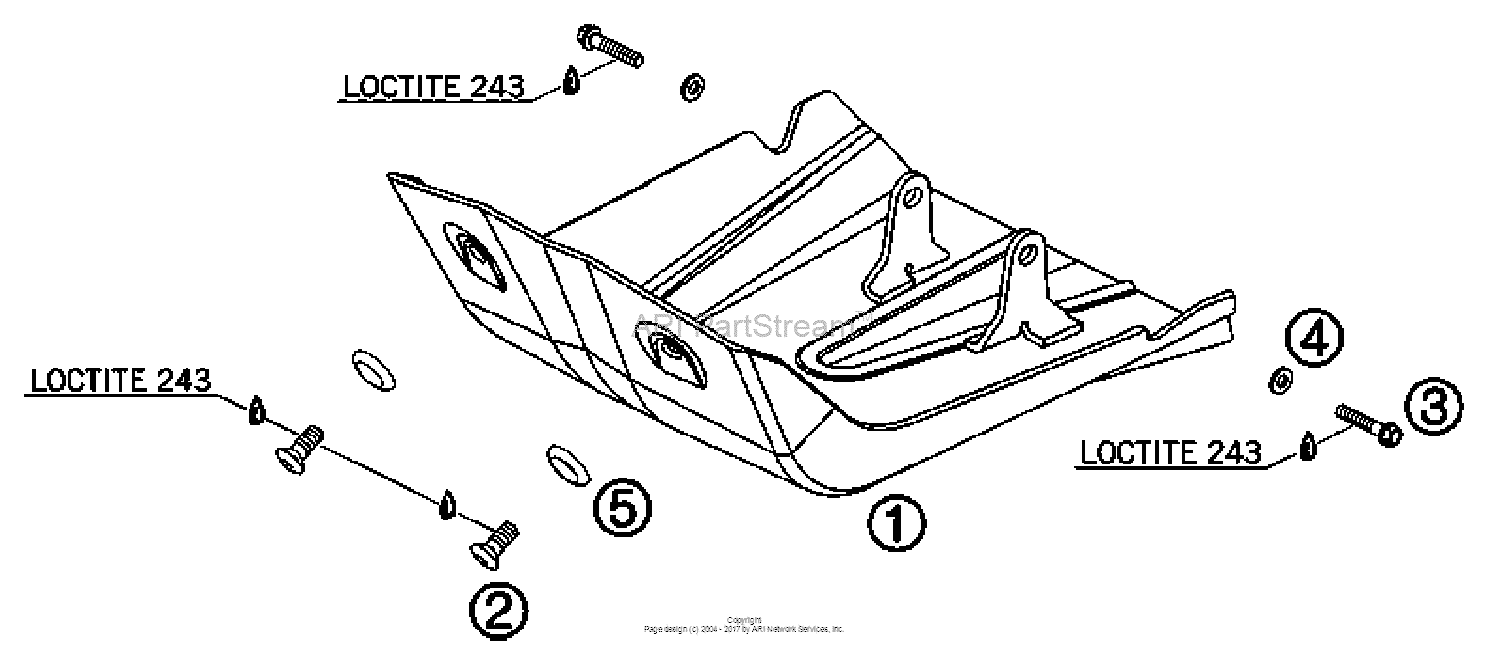

Engine Guard Diagram KTM 950 950 Super Moto R
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Super Moto
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63003090000 Underride protection 06Includes 3-8,11,12 |
63003090000 |
US $175.98 |
||
|
2
|
2
54610052000 Sprocket screw-ah m8x20 ws=6Includes 3-8,11,12 |
54610052000 |
US $2.35 |
||
| replacement | |||||
|
2
|
2
0019080206 Counter-sunk screw isa45 m8x20Includes 3-8,11,12 |
0019080206 |
US $1.82 |
||
|
3
|
3
0015080303
Hh Collar Screw M8X30 Tx40
Includes 3-8,11,12 |
0015080303 |
— | ||
| replacement | |||||
|
3
|
3
0025080306 Hh collar screw m8x30 tx40Includes 3-8,11,12 |
0025080306 |
US $3.89 |
||
|
4
|
4
0125080003 Washer din0125-a 8,4Includes 3-8,11,12 |
0125080003 |
US $2.02 |
||
|
5
|
5
58303061100 Special washer alu 8x24 mm eloIncludes 3-8,11,12 |
58303061100 |
US $5.20 |
||
