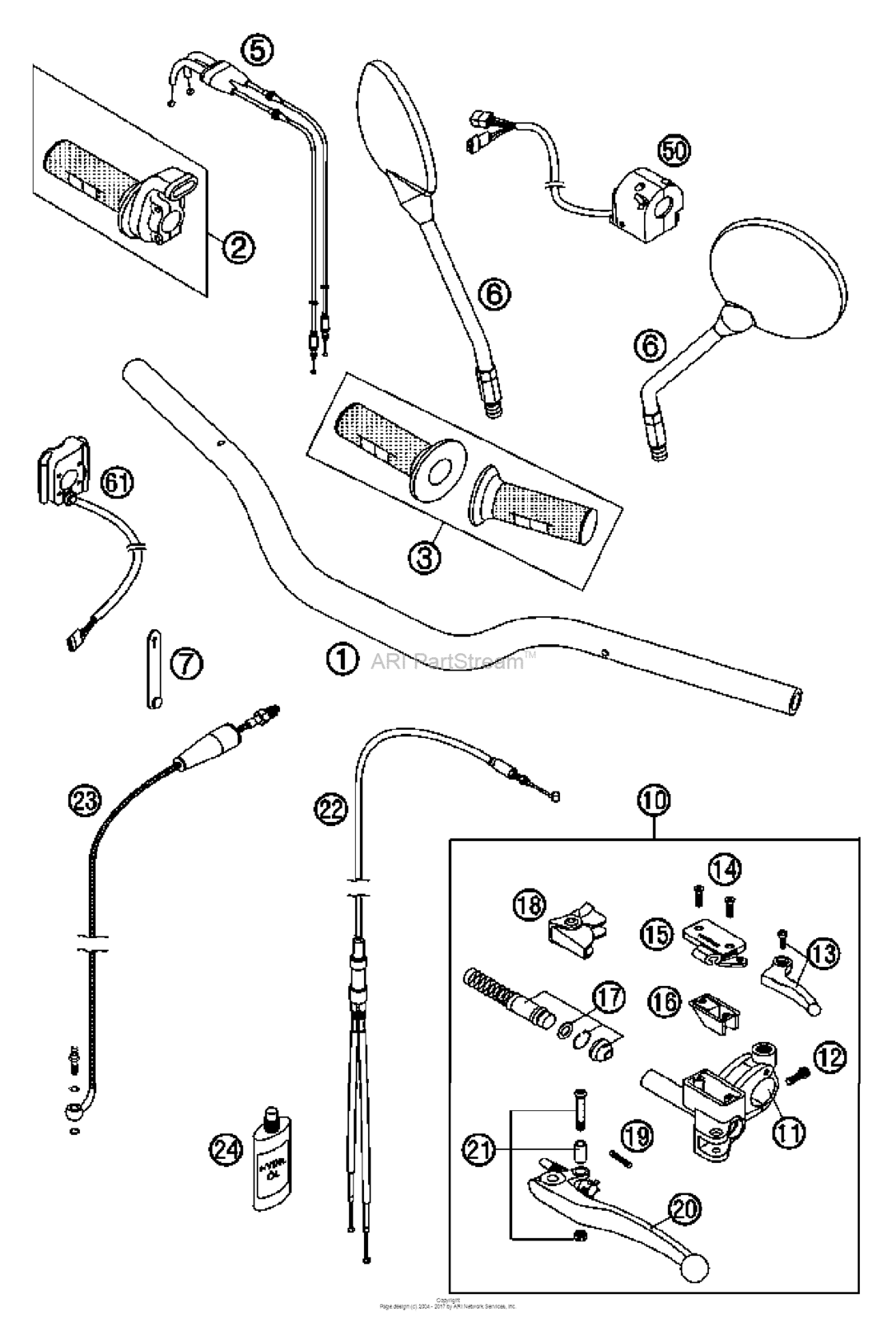

Handlebar,controls Diagram KTM 950 950 Super Moto R
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Super Moto
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59002001200 Handlebar magura sx 28mm 06Includes 9-11,13,15,20,21,23 |
59002001200 |
US $181.03 |
||
|
2
|
2
63002010000 Throttle grip cpl. 06Includes 9-11,13,15,20,21,23 |
63002010000 |
US $61.61 |
||
|
3
|
3
63002021000
Superseded By 63002021100
Includes 9-11,13,15,20,21,23 |
63002021000 |
— | ||
|
5
|
5
60002091000
Throttle cable lc8 adv 2003
Includes 9-11,13,15,20,21,23 |
60002091000 |
— | ||
| replacement | |||||
|
5
|
5
60002091100 Throttle Cable CplIncludes 9-11,13,15,20,21,23 |
60002091100 |
US $98.29 |
||
|
6
|
6
58412040100 Rear mirror l/s+r/s lc4 2001Includes 9-11,13,15,20,21,23 |
58412040100 |
US $66.86 |
||
|
7
|
7
60011093045 Rubber cable tie 45mm 03Includes 9-11,13,15,20,21,23 |
60011093045 |
US $3.38 |
||
|
10
|
10
60002030000
Master cylinder magura d=10.5
Includes 11-21 |
60002030000 |
— | ||
|
11
|
11
60002044000 Clamp mirror with clampIncludes 11-21 |
60002044000 |
US $50.83 |
||
|
12
|
12
0015060203
Hh Collar Screw M 6X20 Ws=8
Includes 11-21 |
0015060203 |
— | ||
| replacement | |||||
|
12
|
12
0025060206 Hh collar screw m6x20 tx30Includes 11-21 |
0025060206 |
US $1.97 |
||
|
13
|
13
60036050000 Choke lever cpl. lc8 2003Includes 11-21 |
60036050000 |
US $21.66 |
||
|
14
|
14
0965040123 Flat head screw din0965-m 4x12Includes 11-21 |
0965040123 |
US $0.56 |
||
|
15
|
15
60002033000
Cover hyd.clutch with choke 03
Includes 11-21 |
60002033000 |
— | ||
|
16
|
16
50302034000 Rubber for reservoir '98Includes 11-21 |
50302034000 |
US $16.18 |
||
|
17
|
17
50302032000 Rep.set piston magura d=10.5Includes 11-21 |
50302032000 |
US $116.60 |
||
|
18
|
18
50302037000 Protect.cap For Lever Perch'98Includes 11-21 |
50302037000 |
US $20.74 |
||
|
19
|
19
59002035000 Spring for clutch lever 03Includes 11-21 |
59002035000 |
US $5.46 |
||
|
20
|
20
60002031000 Clutch lever long cpl. 2003Includes 11-21 |
60002031000 |
US $68.24 |
||
|
21
|
21
50302038000 Lever Screw Cpl. 125-200 '98Includes 11-21 |
50302038000 |
US $20.35 |
||
|
22
|
22
60002095000 Choke cable lc8 adventure 03Includes 11-21 |
60002095000 |
US $44.37 |
||
|
23
|
23
60032063100 Clutch pipe lc8 adv '03Includes 11-21 |
60032063100 |
US $100.40 |
||
|
24
|
24
50302036200 Oil For Hyd. Clutch 100 MlIncludes 11-21 |
50302036200 |
US $19.23 |
||
|
50
|
50
61011070100 Light switch 06Includes 11-21 |
61011070100 |
US $99.69 |
||
|
61
|
61
58411074100 Start-stop switch ad lc4 02Includes 11-21 |
58411074100 |
US $68.12 |
||
