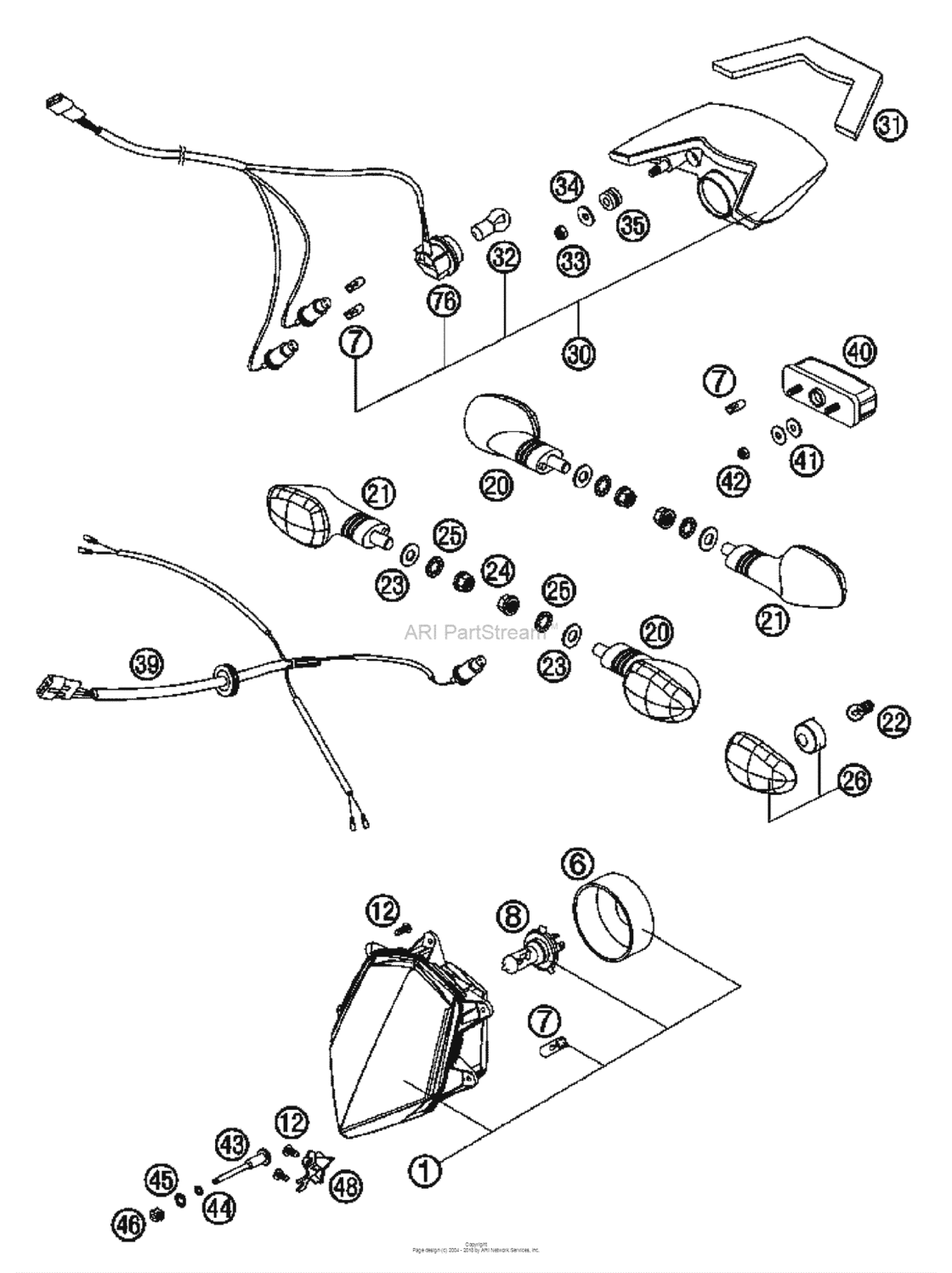

Lighting System Diagram KTM 950 950 Super Moto R
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Super Moto
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58614001200 Head light usa 05Includes 11-21 |
58614001200 |
US $133.37 |
||
|
6
|
6
58614001050
Rubber cap for head light 05
Includes 11-21 |
58614001050 |
— | ||
|
7
|
7
49011435100 Bulb 12V 5W (W2,1X9,5D) PhilIncludes 11-21 |
49011435100 |
US $3.81 |
||
|
8
|
8
57111038000 Bulb h4 12v 60/55w (p43t)Includes 11-21 |
57111038000 |
US $44.46 |
||
|
12
|
12
0016050121
Screw for plastic 50x12
Includes 11-21 |
0016050121 |
— | ||
| replacement | |||||
|
12
|
12
0081050121 Screw for plastic k50x12 t20Includes 11-21 |
0081050121 |
US $1.19 |
||
|
20
|
20
58414025100 Flasher cpl.front l/s rear r/sIncludes 11-21 |
58414025100 |
US $32.90 |
||
|
21
|
21
58414026100 Flasher cpl.front r/s rear l/sIncludes 11-21 |
58414026100 |
US $32.54 |
||
|
22
|
22
44111015100 Bulb 12v 10w (ba15s)Includes 11-21 |
44111015100 |
US $2.30 |
||
|
23
|
23
0125100003 Washer Din0125-A10,5Includes 11-21 |
0125100003 |
US $1.19 |
||
|
24
|
24
58414030000 Hh collar nut m10x1,25 ws=13Includes 11-21 |
58414030000 |
US $2.60 |
||
|
25
|
25
0797100003 Lock washer din6797-j10,5 ziIncludes 11-21 |
0797100003 |
US $0.65 |
||
|
26
|
26
58414028100 Flasher lens l/s & r/s 02Includes 11-21 |
58414028100 |
US $6.58 |
||
|
30
|
30
58614040044 Rear light cpl. red 05Includes 11-21 |
58614040044 |
US $80.84 |
||
|
31
|
31
58614040050 Metamoll for head light 05Includes 11-21 |
58614040050 |
US $4.71 |
||
|
32
|
32
60014048000 Bulb 12v 21wIncludes 11-21 |
60014048000 |
US $4.56 |
||
|
33
|
33
0985060003 Self Lock. Nut Din0985-M 6Includes 11-21 |
0985060003 |
US $2.60 |
||
|
34
|
34
0021060003 Washer Din9021-A 6,4Includes 11-21 |
0021060003 |
US $3.26 |
||
|
35
|
35
58214069051 Rubber Grommet 16X10,8X3 02Includes 11-21 |
58214069051 |
US $4.52 |
||
|
39
|
39
62511076000 Wiring harness rear 05Includes 11-21 |
62511076000 |
US $13.89 |
||
|
40
|
40
58414047000 License-plate illumination '98Includes 11-21 |
58414047000 |
US $13.69 |
||
|
41
|
41
0021050003 Washer din9021-a 5,3Includes 11-21 |
0021050003 |
US $1.29 |
||
|
42
|
42
0985050003 Self Locking Nut Din0985-M 5Includes 11-21 |
0985050003 |
US $3.26 |
||
|
43
|
43
58614021100 Adj. screw head light 06Includes 11-21 |
58614021100 |
US $8.02 |
||
|
44
|
44
0770080020 O-ring 8x2 siliconeIncludes 11-21 |
0770080020 |
US $0.66 |
||
|
45
|
45
58614024000 Clampring f. head light adj.Includes 11-21 |
58614024000 |
US $1.11 |
||
|
46
|
46
58614018000 Adjustingnut f. head l. adj.05Includes 11-21 |
58614018000 |
US $3.49 |
||
|
48
|
48
62514063050 Tab head light adj. 05Includes 11-21 |
62514063050 |
US $12.19 |
||
|
76
|
76
58611076100 Cable harness rear part 05Includes 11-21 |
58611076100 |
US $27.52 |
||
