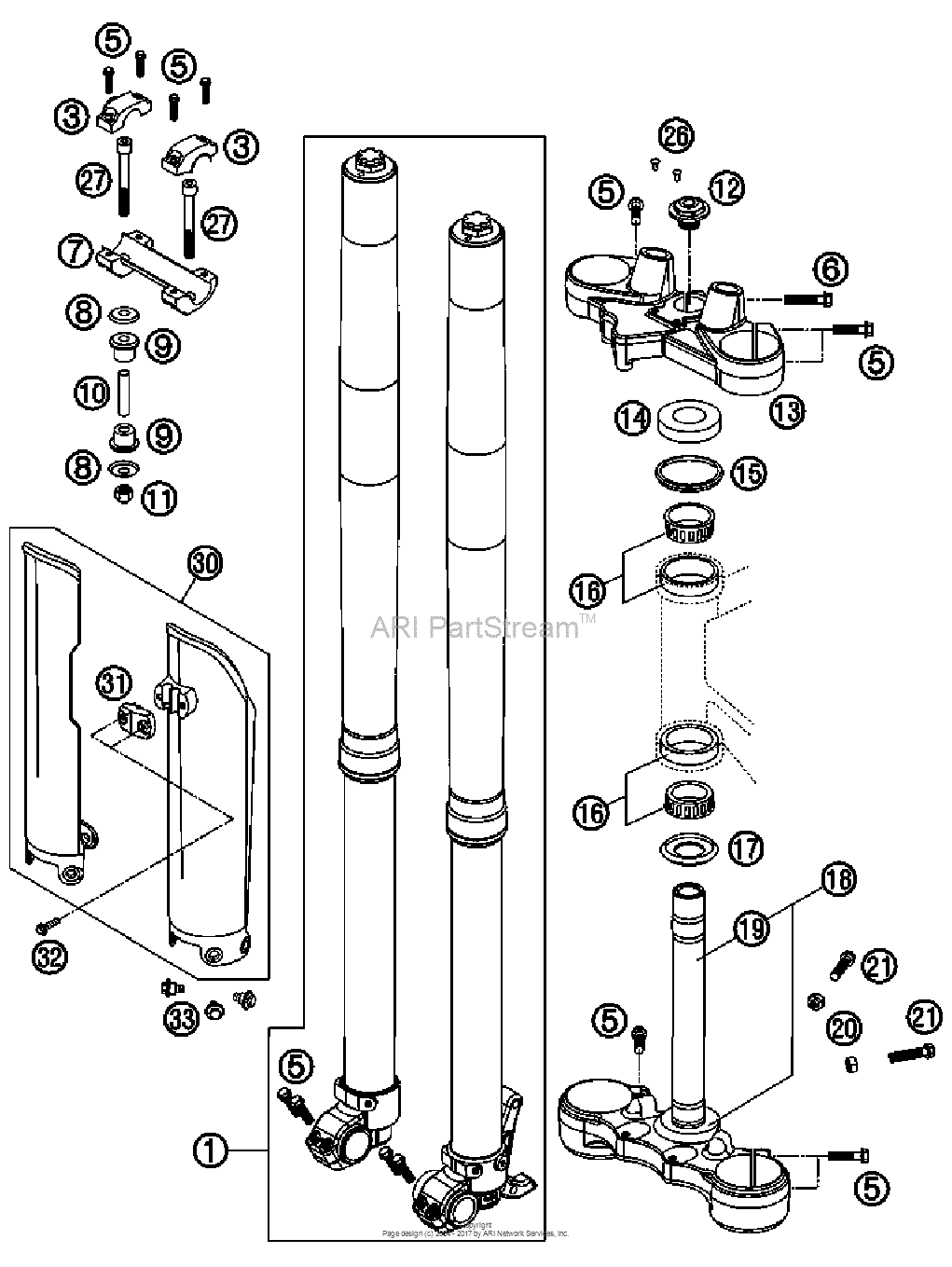

Front Fork, Triple Clamp Diagram KTM 950 950 Super Moto R
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Super Moto
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14187D32
Fork wp 950 superenduro 08
08 |
14187D32 |
— | ||
|
3
|
3
5900103830001S Handlebar clamp 28mm 0707 |
5900103830001S |
US $24.51 |
||
|
5
|
5
0025080306 Hh collar screw m8x30 tx40TX40 |
0025080306 |
US $3.89 |
||
|
6
|
6
0025080356 Hh Collar Screw M8X35 Tx40TX40 |
0025080356 |
US $3.04 |
||
|
7
|
7
5900103920001S Handlebar support 28mm 0707 |
5900103920001S |
US $68.12 |
||
|
8
|
8
56401042000 Washer 10,5x32x207 |
56401042000 |
US $4.71 |
||
|
9
|
9
56401040000 Rubber bushing07 |
56401040000 |
US $6.73 |
||
|
10
|
10
56401041100 Spacer tube 10,2x12x4407 |
56401041100 |
US $5.25 |
||
|
11
|
11
0982100003 Self lock.nut din0982-m10 high07 |
0982100003 |
US $2.35 |
||
|
12
|
12
54801036200 Steer.head screw m20x1,5 sw=2707 |
54801036200 |
US $12.72 |
||
|
13
|
13
6000103402001S Top triple clamp x=20mm d=54mm07 |
6000103402001S |
US $212.81 |
||
|
14
|
14
61001086000 Steering head cover 0505 |
61001086000 |
US $14.04 |
||
|
15
|
15
54601184000 Stearing head gasket top05 |
54601184000 |
US $7.74 |
||
|
16
|
16
54201081100 Tapered Roller Bearing Cpl. 0606 |
54201081100 |
US $53.18 |
||
|
17
|
17
54601084100 O-Ring Support W. Sealing Lip06 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
17
|
17
77701084000 O-Ring Support W. Sealing Lip06 |
77701084000 |
US $21.15 |
||
|
18
|
18
6000103202001S
Bottom triple clamp cpl d=60mm
06 |
6000103202001S |
— | ||
|
19
|
19
60001033000 Fork tube lc8 adv 0303 |
60001033000 |
US $60.45 |
||
|
20
|
20
0934080003 Hexagon Nut Din0934-M 803 |
0934080003 |
US $3.26 |
||
|
21
|
21
0933080253 Hh Screw Din0933-M 8X2503 |
0933080253 |
US $1.24 |
||
|
26
|
26
60103088000 Plug zk 8/5 0606 |
60103088000 |
US $0.31 |
||
|
27
|
27
0984100703 Ah screw din6912-m10x7006 |
0984100703 |
US $6.92 |
||
|
30
|
30
5900109400030
Fork Prot. L/s+R/s Black 10
02 |
5900109400030 |
— | ||
| replacement | |||||
|
30
|
30
5900109410030 FORK PROT. L/S+R/S BLACK 1002 |
5900109410030 |
US $49.79 |
||
|
31
|
31
58201085000 Clamp f.speed cable d=8mm 20012001 |
58201085000 |
US $2.38 |
||
|
32
|
32
0017060203
Screw For Plastic K60X20 Sw6
WS=6 |
0017060203 |
— | ||
| replacement | |||||
|
32
|
32
0017060205 Screw For Plastic K60X20 Sw6WS=6 |
0017060205 |
US $2.24 |
||
|
33
|
33
59001092050 Special Screw M6X12,5 Ws=8WS=8 |
59001092050 |
US $2.35 |
||
