Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 62514061000 Speedometer bracket 05 05	62514061000	US $46.46
2	2 63014062000 Mask bracket l/s 06 06	63014062000	US $16.05
3	3 62514063000 Mask bracket r/s 05 05	62514063000	US $25.08
4	4 0081050121 Screw for plastic k50x12 t20 T20	0081050121	US $1.19
5	5 58214069051 Rubber Grommet 16X10,8X3 02 02	58214069051	US $4.52
6	6 0021050003 Washer din9021-a 5,3 02	0021050003	US $1.29
7	7 0985050003 Self Locking Nut Din0985-M 5 02	0985050003	US $3.26
8	8 55011022100 Clamp d=6/8mm, black 02	55011022100	US $1.07
9	9 61014069000 Digital speedometer 05 05	61014069000	—
10	10 60014069150 Speedometer sensor 06 06	60014069150	—
	replacement
10	10 60014068200 SPEEDOMETER SENSOR 10 06	60014068200	US $83.66
11	11 0084040083 Cyl.head screw din0084-m 4x8 a 06	0084040083	US $0.27
12	12 63008003000 Mask bracket top 06 06	63008003000	US $38.34
13	13 63014064000 Mask support bottom 06 06	63014064000	US $4.32
14	14 0012060164 Ah screw din6912 m6x16 sl 06	0012060164	US $0.92
15	15 60039030000 Vibration damper digitalbox 03 03	60039030000	US $2.43
16	16 58411066100 Ignition Lock 99	58411066100	—
	replacement
16	16 75011166000 Ignition lock 99	75011166000	US $151.69
17	17 58411066444 Lock system 07 07	58411066444	US $216.94
18	18 60011064000 Tamperproof screw f. ign. lock 07	60011064000	US $3.67
19	19 40011166100 Key blank lc4/duke/lc8 07	40011166100	US $17.60
	replacement
19	19 76911067010 Key Blank Lc4/Duke/Lc8 07	76911067010	US $16.61
20	20 60014068000 Damping ring tachometer 03 03	60014068000	US $5.92
22	22 0984060252 Ah screw din6912 m6x25 03	0984060252	US $1.73
23	23 60008045000 Special washer d=16,5mm 03 03	60008045000	US $3.38
24	24 62514037000 Spacer bushing 6,2x7,5x10,3 05 05	62514037000	US $2.75

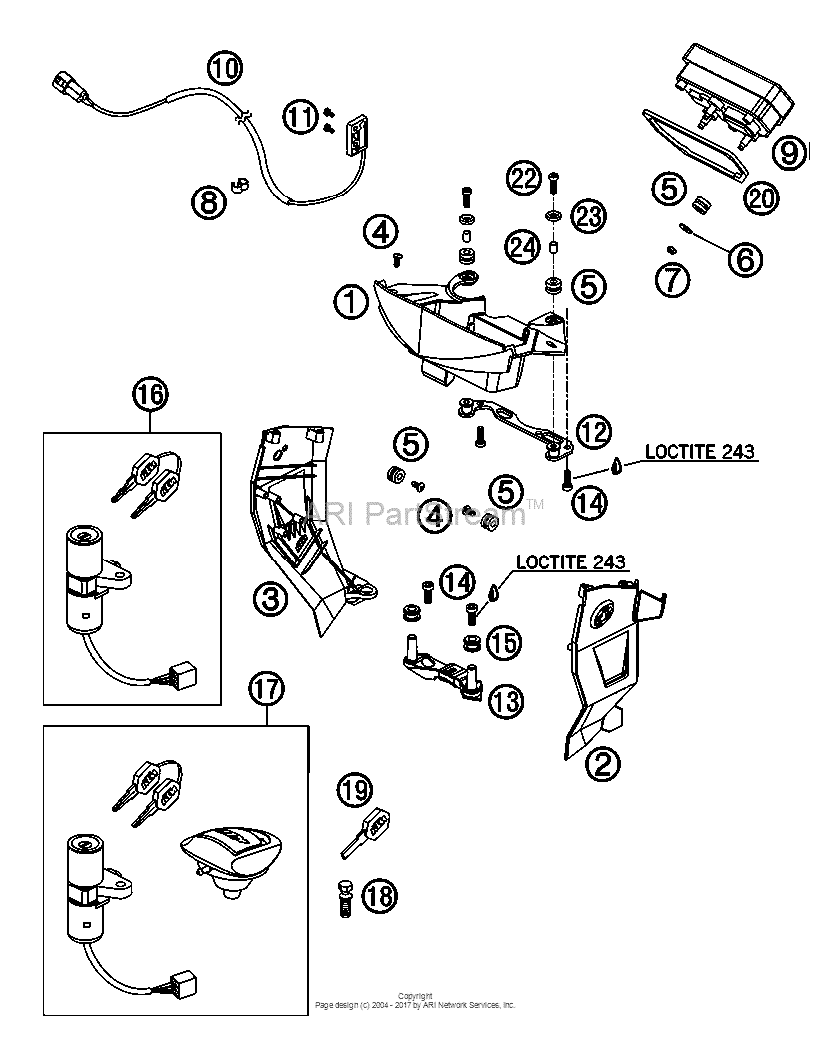

Instruments/lock System Diagram KTM 950 950 Super Moto R US/EU 18108977-940817

Instruments/lock System Diagram KTM 950 950 Super Moto R US/EU 18108977-940817
