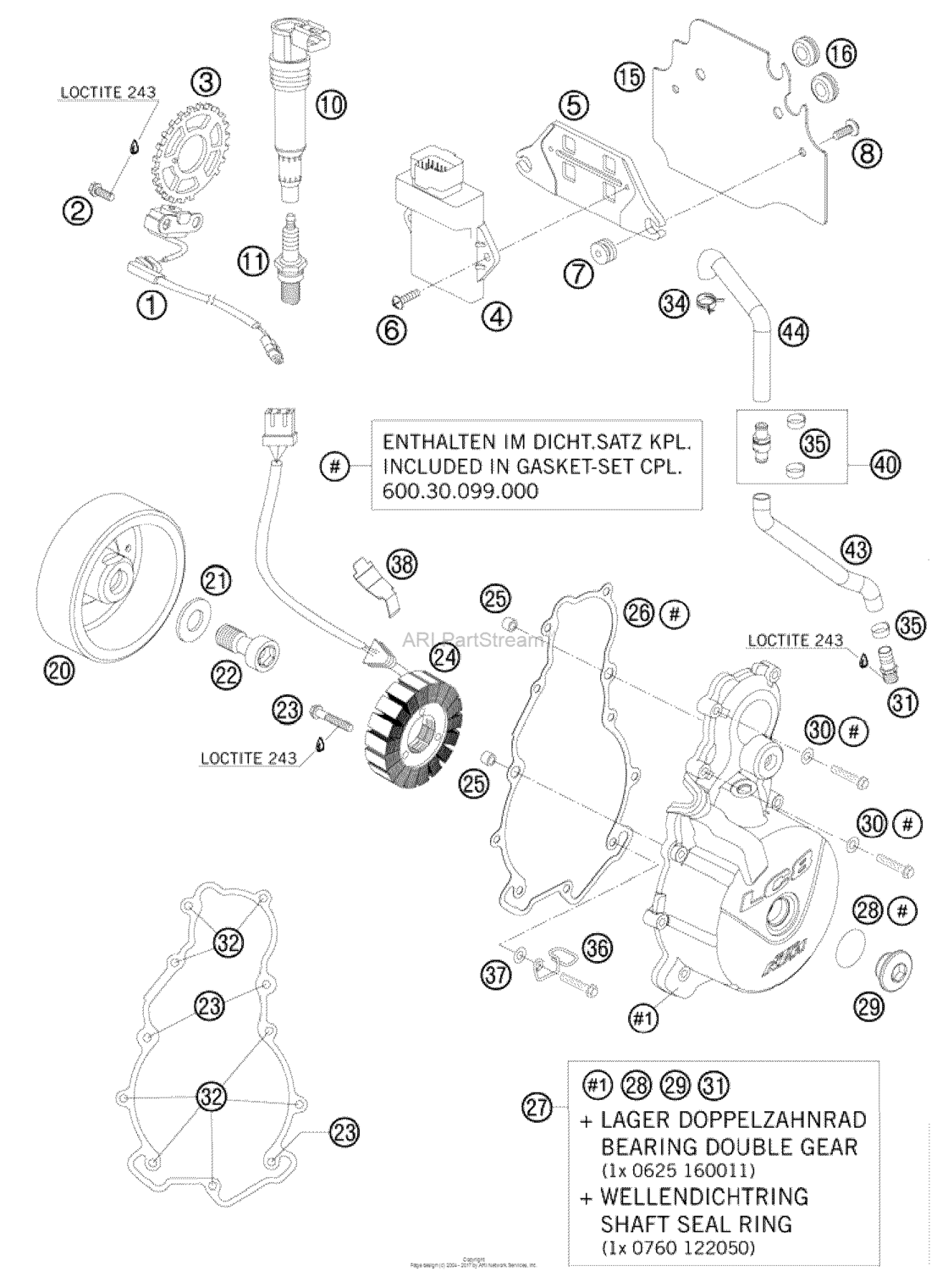

Ignition System Diagram KTM 950 950 Super Moto R
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Super Moto
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60039034100 Pulse generator lc8 0404 |
60039034100 |
US $118.68 |
||
|
2
|
2
0015060163 Hh Collar Screw M 6X16 Ws=8WS=8 |
0015060163 |
US $2.23 |
||
|
3
|
3
60039020100 Trigger wheel 0303 |
60039020100 |
US $5.44 |
||
|
4
|
4
62539031000 Digitalbox 950sm 0505 |
62539031000 |
US $469.80 |
||
|
5
|
5
60039028000 Adapter plate digitalbox 0303 |
60039028000 |
US $5.03 |
||
|
6
|
6
0081500181 Screw for plastic d=5x1803 |
0081500181 |
US $1.02 |
||
| replacement | |||||
|
6
|
6
0081050181 Screw for plastic k50x18 t2003 |
0081050181 |
US $0.73 |
||
|
7
|
7
60039030000 Vibration damper digitalbox 0303 |
60039030000 |
US $2.43 |
||
|
8
|
8
0023060123 Collar screw m6x12 txTX |
0023060123 |
US $0.87 |
||
|
10
|
10
60039006000 Stick coil 0303 |
60039006000 |
US $83.13 |
||
|
11
|
11
59039093000 Spark plug cr8ek03 |
59039093000 |
US $13.07 |
||
|
15
|
15
63003082000 Cover plate 0707 |
63003082000 |
US $6.49 |
||
|
16
|
16
41001052000 Rubber Sleeve D=12Mm07 |
41001052000 |
US $5.46 |
||
|
20
|
20
60039005100 Ignition rotor 0404 INCL. FREEWHEEL |
60039005100 |
US $800.22 |
||
|
21
|
21
60039040010 Washer 17x32x4 0303 |
60039040010 |
US $4.37 |
||
|
22
|
22
60039003000 Ah expand. screw m16x35 8.8(As required) |
60039003000 |
US $6.46 |
||
|
22
|
22
60039003100 Ah expand. screw m16x1,5 0505 (As required) |
60039003100 |
US $8.26 |
||
|
23
|
23
0015060353
Hh collar screw m 6x35 ws=8
WS=8 |
0015060353 |
— | ||
| replacement | |||||
|
23
|
23
0025060356 Hh collar screw m6x35 tx30WS=8 |
0025060356 |
US $6.15 |
||
|
24
|
24
60039004000
Stator 03
03 |
60039004000 |
— | ||
|
25
|
25
49030090000 Dowel 9,8 x 7 x 1003 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
25
|
25
49030090100 Dowel 9,8 X7X1003 |
49030090100 |
US $2.60 |
||
|
26
|
26
60030040100 Ignit.cover gask.matri.cs0,5mm03 |
60030040100 |
US $40.19 |
||
|
27
|
27
60030002144
Ignition Cover Cpl
06 |
60030002144 |
— | ||
| replacement | |||||
|
27
|
27
6003000214423 Ignition cover cpl. 0606 |
6003000214423 |
US $180.05 |
||
|
28
|
28
0770024025
O-ring 24x2,5 nbr
06 |
0770024025 |
— | ||
| replacement | |||||
|
28
|
28
07700240251 O-ring 24x2,5 viton06 |
07700240251 |
US $3.96 |
||
|
29
|
29
6003009400023 Screw plug m24x1,5 pa 6.606 |
6003009400023 |
US $1.94 |
||
|
30
|
30
0603061001 Cu-Seal Ring Din7603-6X10X106 |
0603061001 |
US $2.64 |
||
|
31
|
31
60030022000 Ventilation connector m16x1,506 |
60030022000 |
US $7.28 |
||
|
32
|
32
0015060303
Hh Collar Screw M6X30 Tx30
SW=8 |
0015060303 |
— | ||
| replacement | |||||
|
32
|
32
0025060306 Hh collar screw m6x30 tx30SW=8 |
0025060306 |
US $3.96 |
||
|
34
|
34
00049220121 Clamp std dn22SW=8 |
00049220121 |
US $1.04 |
||
|
35
|
35
00050226706 Variable one-ear clamp 22,6mmSW=8 |
00050226706 |
US $2.09 |
||
|
36
|
36
60011094000 Cable support 0303 |
60011094000 |
US $4.71 |
||
|
37
|
37
0125060003 Washer Din0125-A 6,403 |
0125060003 |
US $0.37 |
||
|
38
|
38
60039040020 Cable support generator 0303 |
60039040020 |
US $2.62 |
||
|
40
|
40
60030090344 Back-Pressure Valve Cpl03 |
60030090344 |
US $28.05 |
||
|
43
|
43
60030087101 Engine breather hose bottom03 |
60030087101 |
US $52.68 |
||
|
44
|
44
60030087102 Engine breather hose top03 |
60030087102 |
US $24.84 |
||
