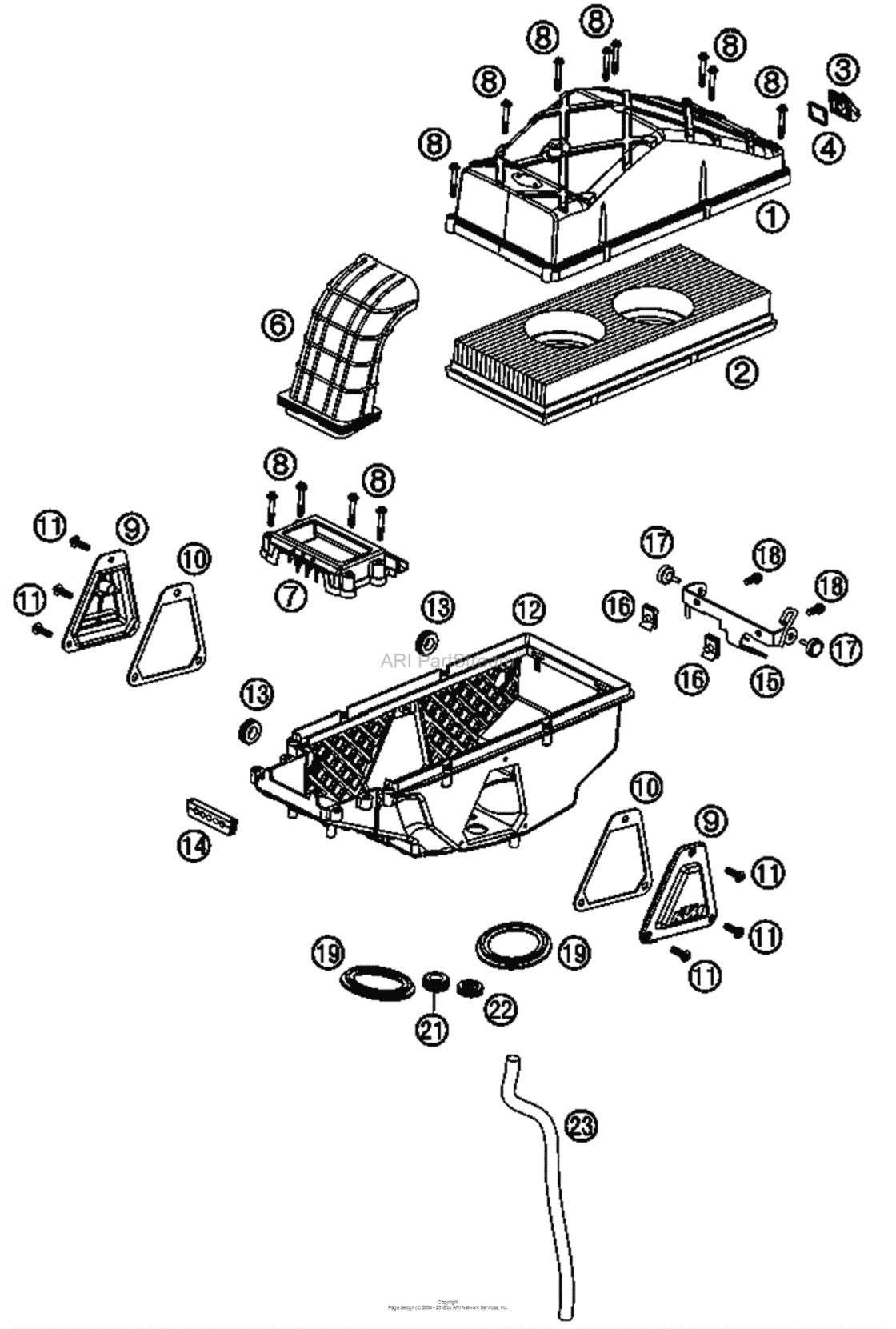

Air Filter Box Diagram KTM 950 950 Adventure
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60006002000 Airbox cover lc8 03TX30 |
60006002000 |
US $53.86 |
||
|
2
|
2
60006015000 Air filter lc8 03TX30 |
60006015000 |
US $52.07 |
||
|
3
|
3
60006007000
Connector for sas lc8 03
TX30 |
60006007000 |
— | ||
|
4
|
4
60006007050 Gasket sas connector 03TX30 |
60006007050 |
US $0.80 |
||
|
6
|
6
60006040000
Intake snorkel 03
TX30 |
60006040000 |
— | ||
|
7
|
7
60006004000
Airbox front part lc8 03
TX30 |
60006004000 |
— | ||
|
8
|
8
60006006000 Special screw k60x35/15 03TX30 |
60006006000 |
US $0.80 |
||
|
9
|
9
60006003002 Airbox cover l/s r/s 03TX30 |
60006003002 |
US $5.08 |
||
|
10
|
10
60006003050 Gasket f. airbox cover l/s r/sTX30 |
60006003050 |
US $4.23 |
||
|
11
|
11
0017060203
Screw For Plastic K60X20 Sw6
TX30 |
0017060203 |
— | ||
| replacement | |||||
|
11
|
11
0017060205 Screw For Plastic K60X20 Sw6TX30 |
0017060205 |
US $2.24 |
||
|
12
|
12
60006001000 Filter box lower part lc8 03TX30 |
60006001000 |
US $60.04 |
||
|
13
|
13
60006001050 Rubber sleeve d=16mm closed 03TX30 |
60006001050 |
US $2.60 |
||
|
14
|
14
60006001030 Rubber sleeve cable passage 03TX30 |
60006001030 |
US $8.94 |
||
|
15
|
15
60006001020 Bracket panel sas a. epc 03TX30 |
60006001020 |
US $35.41 |
||
|
16
|
16
54603048100 Range Change Metal Nut M6TX30 |
54603048100 |
US $5.27 |
||
|
17
|
17
60006001021 Distance rubber airbox 03TX30 |
60006001021 |
US $1.04 |
||
|
18
|
18
0015060163 Hh Collar Screw M 6X16 Ws=8TX30 |
0015060163 |
US $2.23 |
||
|
19
|
19
60036045000 Rubber sleeve airbox 03TX30 |
60036045000 |
US $35.43 |
||
|
21
|
21
60006001041 Rubber sleeve fuel hose 03TX30 |
60006001041 |
US $2.23 |
||
|
22
|
22
60006001023 Rubber sleeve stop screwTX30 |
60006001023 |
US $4.66 |
||
|
23
|
23
57005020001 Hose 10x14 per meterAs Required |
57005020001 |
US $13.86 |
||
