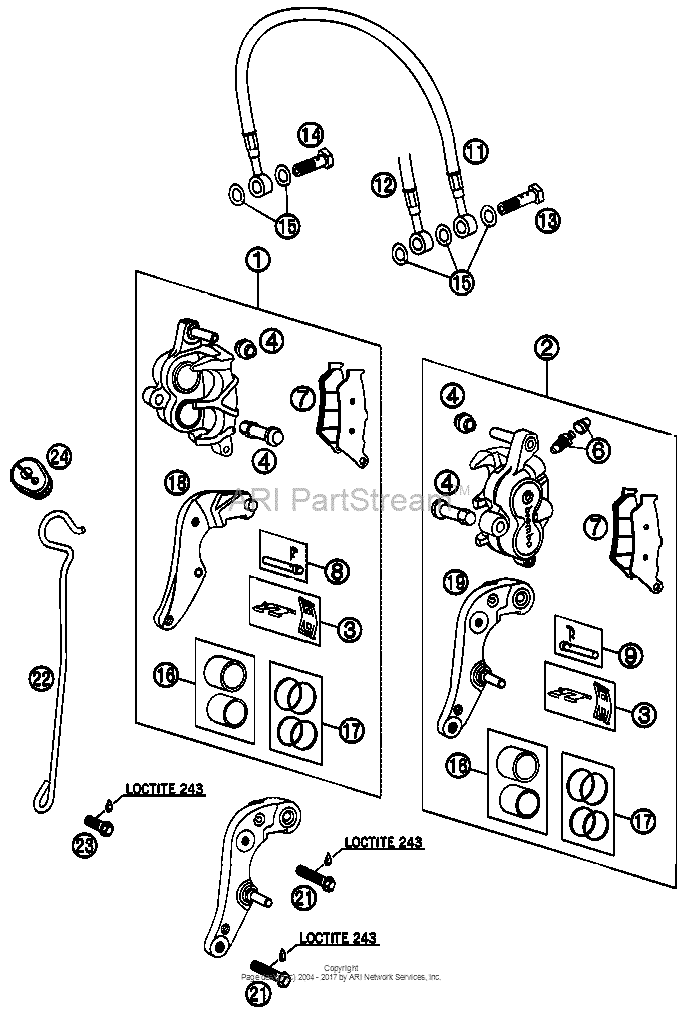

Brake Caliper Front Diagram KTM 950 950 Adventure
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60013016000
Brakecaliper R/s Without Pads
As Required |
60013016000 |
— | ||
| replacement | |||||
|
1
|
1
6011301600101 Brakecaliper r/s without padsAs Required |
6011301600101 |
US $344.03 |
||
|
2
|
2
60013015000 Brake Caliper Front L/sAs Required |
60013015000 |
US $342.65 |
||
| replacement | |||||
|
2
|
2
6011301510101 BRAKE CALIPER FRONT L/SAs Required |
6011301510101 |
US $257.09 |
||
|
3
|
3
60013018000 Retaining plate set front 03As Required |
60013018000 |
US $13.23 |
||
|
4
|
4
54613218000 Cup Set ShortAs Required |
54613218000 |
US $25.72 |
||
| replacement | |||||
|
4
|
4
54613218100 CUP SET SHORTAs Required |
54613218100 |
US $25.72 |
||
|
6
|
6
60013020000 Bleeder Screw With CapAs Required |
60013020000 |
US $6.27 |
||
|
7
|
7
60013030000 Brake pads toshiba tt 2172 hha03 |
60013030000 |
US $82.91 |
||
|
8
|
8
60013017100 Bolt set r/s03 |
60013017100 |
US $15.22 |
||
|
9
|
9
60013017000 Bolt set l/s03 |
60013017000 |
US $15.22 |
||
|
11
|
11
60013013000 Connecting pipe front03 |
60013013000 |
US $55.56 |
||
|
12
|
12
60013012300 Brake hose front adv. 0503 |
60013012300 |
US $115.21 |
||
|
13
|
13
60013092000
Hollow screw m10x1x30 03
03 |
60013092000 |
— | ||
|
14
|
14
50213025000 Hollow Screw M10X1X1903 |
50213025000 |
US $5.39 |
||
|
15
|
15
42013226000 Cu-Seal Ring Din7603-10X16X103 |
42013226000 |
US $4.10 |
||
|
16
|
16
60013083000 Brake pistons 30/32mm03 |
60013083000 |
US $57.05 |
||
|
17
|
17
60013019000 Rep.kit sealing rings 30/32mm03 |
60013019000 |
US $27.32 |
||
|
18
|
18
60013049000 Brake caliper support fr. r/s03 |
60013049000 |
US $91.46 |
||
|
19
|
19
60013049100 Brake Caliper Support Fr. L/s03 |
60013049100 |
US $109.70 |
||
| replacement | |||||
|
19
|
19
60113049100 Brake caliper support fr. l/s03 |
60113049100 |
US $91.85 |
||
|
21
|
21
0015080353 Hh Collar Screw M 8X35 Ws=1003 |
0015080353 |
US $7.12 |
||
|
22
|
22
60013025000 Front Brake Hose Guide 0603 |
60013025000 |
US $8.16 |
||
| replacement | |||||
|
22
|
22
60013025100 Front brake hose guide 0603 |
60013025100 |
US $7.02 |
||
|
23
|
23
0015080163
Hh collar screw m 8x16 ws=10
03 |
0015080163 |
— | ||
| replacement | |||||
|
23
|
23
0025080166 Hh collar screw m8x16 tx4003 |
0025080166 |
US $2.35 |
||
|
24
|
24
60013025050 Rubber for brake hose guide 0303 |
60013025050 |
US $1.56 |
||
