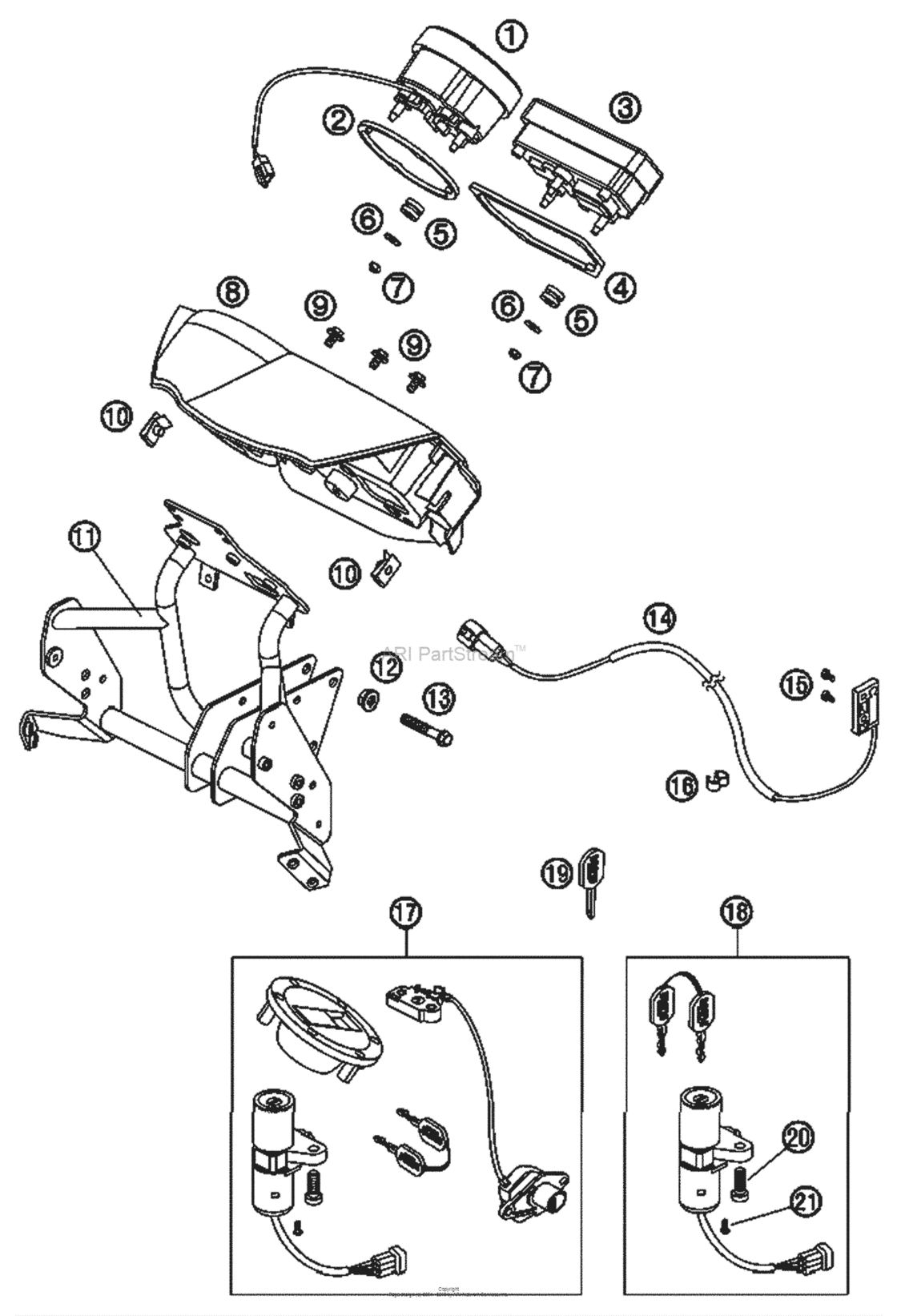

Cockpit Support, Speedometer Diagram KTM 950 950 Adventure
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60014075000 Rev counter lc8 0303 |
60014075000 |
US $333.69 |
||
|
2
|
2
60014068100 Damping ring speedometer 0303 |
60014068100 |
US $7.29 |
||
|
3
|
3
61014069000
Digital speedometer 05
03 |
61014069000 |
— | ||
|
4
|
4
60014068000 Damping ring tachometer 0303 |
60014068000 |
US $5.92 |
||
|
5
|
5
58214069051 Rubber Grommet 16X10,8X3 0203 |
58214069051 |
US $4.52 |
||
|
6
|
6
0021050003 Washer din9021-a 5,303 |
0021050003 |
US $1.29 |
||
|
7
|
7
0985050003 Self Locking Nut Din0985-M 503 |
0985050003 |
US $3.26 |
||
|
8
|
8
60014070000
Instruments Cover
03 |
60014070000 |
— | ||
| replacement | |||||
|
8
|
8
60014070100 Instruments cover03 |
60014070100 |
US $50.32 |
||
|
9
|
9
0014060103
Hh Collar Screw M6X10 Tx30
03 |
0014060103 |
— | ||
| replacement | |||||
|
9
|
9
0024060106 Hh collar screw m6x10 tx3003 |
0024060106 |
US $4.35 |
||
|
10
|
10
54603048100 Range Change Metal Nut M603 |
54603048100 |
US $5.27 |
||
|
11
|
11
60014010000
Cockpit Support 06
03 |
60014010000 |
— | ||
| replacement | |||||
|
11
|
11
60114010000 Cockpit support 0603 |
60114010000 |
US $428.09 |
||
|
12
|
12
54310086200 Self Locking Nut M8 10.903 |
54310086200 |
US $1.56 |
||
|
13
|
13
0015080453 Hh Collar Screw M 8X45 Ws=1003 |
0015080453 |
US $1.46 |
||
|
14
|
14
60014069150
Speedometer sensor 06
03 |
60014069150 |
— | ||
| replacement | |||||
|
14
|
14
60014068200 SPEEDOMETER SENSOR 1003 |
60014068200 |
US $83.66 |
||
|
15
|
15
0084040083 Cyl.head screw din0084-m 4x8 a03 |
0084040083 |
US $0.27 |
||
|
16
|
16
55011022100 Clamp d=6/8mm, black03 |
55011022100 |
US $1.07 |
||
|
17
|
17
60011066044
Lock System Lc8 Adv. 07
03 |
60011066044 |
— | ||
| replacement | |||||
|
17
|
17
60011066244 Lock system lc8 adv. 0703 |
60011066244 |
US $639.97 |
||
|
18
|
18
60011066000
Ignition lock lc8 adv. 03
03 |
60011066000 |
— | ||
|
19
|
19
40011166100 Key blank lc4/duke/lc8As Required |
40011166100 |
US $17.60 |
||
| replacement | |||||
|
19
|
19
76911067010 Key Blank Lc4/Duke/Lc8As Required |
76911067010 |
US $16.61 |
||
|
20
|
20
60011064000 Tamperproof screw f. ign. lockAs Required |
60011064000 |
US $3.67 |
||
|
21
|
21
0985040123 Flat head screw din7985-m 4x12As Required |
0985040123 |
US $0.58 |
||
