	Description	OEM Part #	Price
1	1 60005008000 Exhaust pipe rear 03 As Required	60005008000	—
2	2 60005007100 Exhaust pipe front 05 As Required	60005007100	—
3	3 60005005000 Gasket 03 As Required	60005005000	US $8.70
4	4 0908100000 Plug din0908-m10x1 a2 As Required	0908100000	US $4.28
5	5 0603100141 Copper Gasket Din7603-10X14X1 As Required	0603100141	US $2.24
6	6 51010086100 Self locking nut m 8 cu As Required	51010086100	US $1.51
7	7 0125080003 Washer din0125-a 8,4 As Required	0125080003	US $2.02
8	8 60005011000 Thermal shield 05 As Required	60005011000	US $112.40
9	9 0991060082 Flat h.screw m6x8 din7991 niro As Required	0991060082	US $0.29
20	20 60005048000 Distributor tube lc8 03 As Required	60005048000	US $436.70
21	21 60005005001 Graphit ring 42x47x25 03 As Required	60005005001	US $23.51
22	22 60105051000 Clamp cpl. d=49,2mm 06 As Required	60105051000	US $33.07
23	23 58405085044 Silencer bracket cpl. 2001 2001	58405085044	US $34.90
24	24 0137060003 Spring Washer Din0137-B 6 2001	0137060003	US $0.43
25	25 0015060203 Hh Collar Screw M 6X20 Ws=8 2001	0015060203	—
	replacement
25	25 0025060206 Hh collar screw m6x20 tx30 2001	0025060206	US $1.97
26	26 54305068100 Damp. component silicone grey 2001	54305068100	US $14.26
27	27 56505069000 Spacer bushing 8,4x12x16 2001	56505069000	US $3.49
28	28 36003014000 Lock washer 8mm 2001	36003014000	US $0.46
29	29 0015080303 Hh Collar Screw M8X30 Tx40 2001	0015080303	—
	replacement
29	29 0025080306 Hh collar screw m8x30 tx40 2001	0025080306	US $3.89
30	30 60005183000 Silencer lc8 usa 03 2001	60005183000	US $867.26
31	31 54308042000 Rubber Buffer 2001	54308042000	US $2.89
32	32 60005005002 Exhaust gasket 03 2001	60005005002	US $8.43
33	33 0015080163 Hh collar screw m 8x16 ws=10 2001	0015080163	—
	replacement
33	33 0025080166 Hh collar screw m8x16 tx40 2001	0025080166	US $2.35
34	34 60005095000 Clamp for silencer cpl. 03 2001	60005095000	US $41.36
35	35 0015080253 H H Collar Screw 2001	0015080253	—
	replacement
35	35 0025080256 Hh Collar Screw M8X25 Tx40 2001	0025080256	US $4.10
36	36 0021080003 Washer din9021-a 8,4 2001	0021080003	US $2.18
38	38 60005085000 Silencer/handle holder l/s 03 2001	60005085000	US $39.73
	replacement
38	38 6000508500001S Silencer/handle holder l/s 07 2001	6000508500001S	US $36.65
39	39 60005086000 Silencer/handle holder r/s 03 2001	60005086000	US $45.25
	replacement
39	39 6000508600001S Silencer/handle holder r/s 07 2001	6000508600001S	US $36.65
40	40 0125080003 Washer din0125-a 8,4 2001	0125080003	US $2.02
41	41 0015080353 Hh Collar Screw M 8X35 Ws=10 2001	0015080353	US $7.12

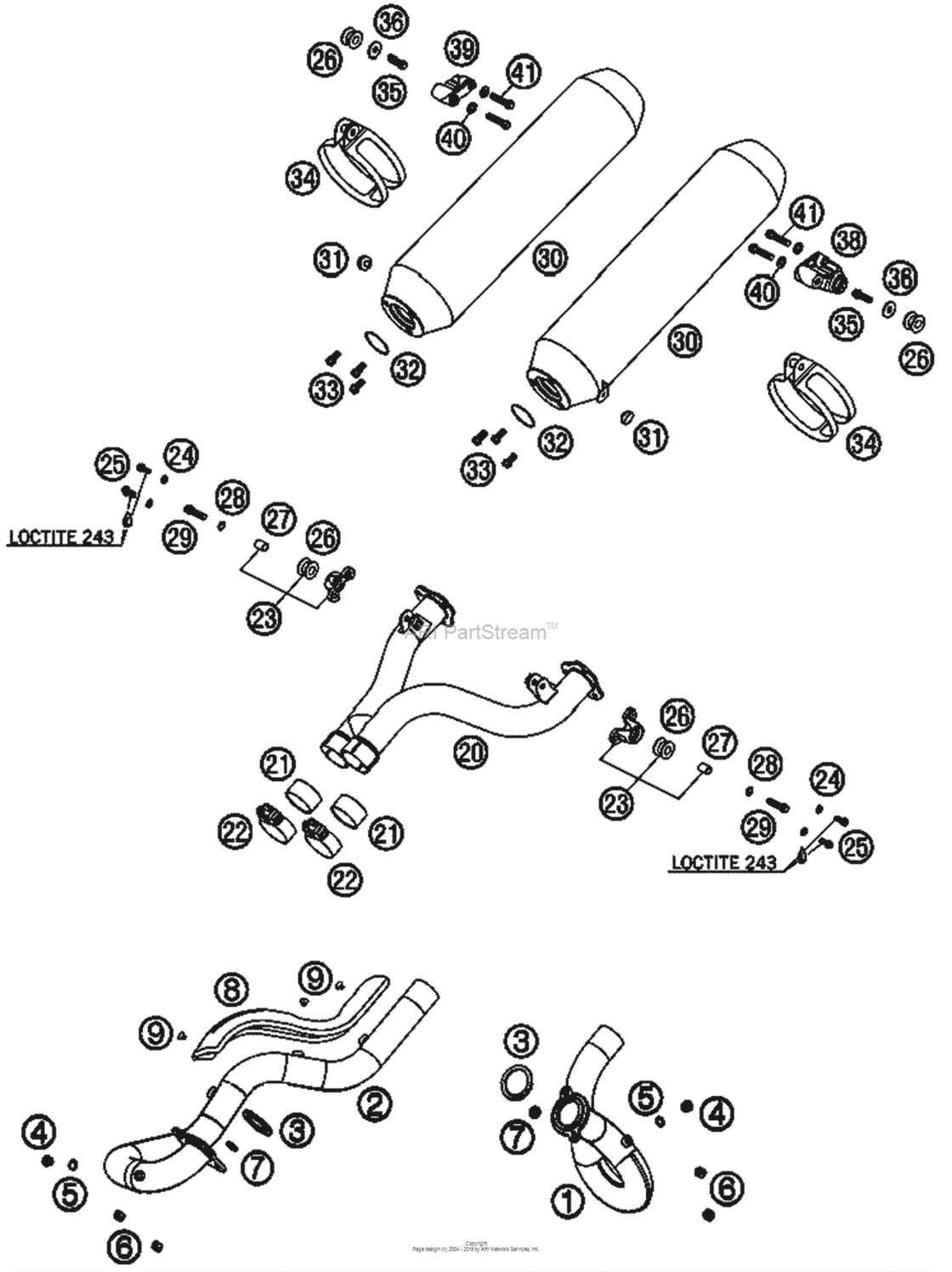

Exhaust Control Diagram KTM 950 950 Adventure US/EU 18110341-940874

Exhaust Control Diagram KTM 950 950 Adventure US/EU 18110341-940874
