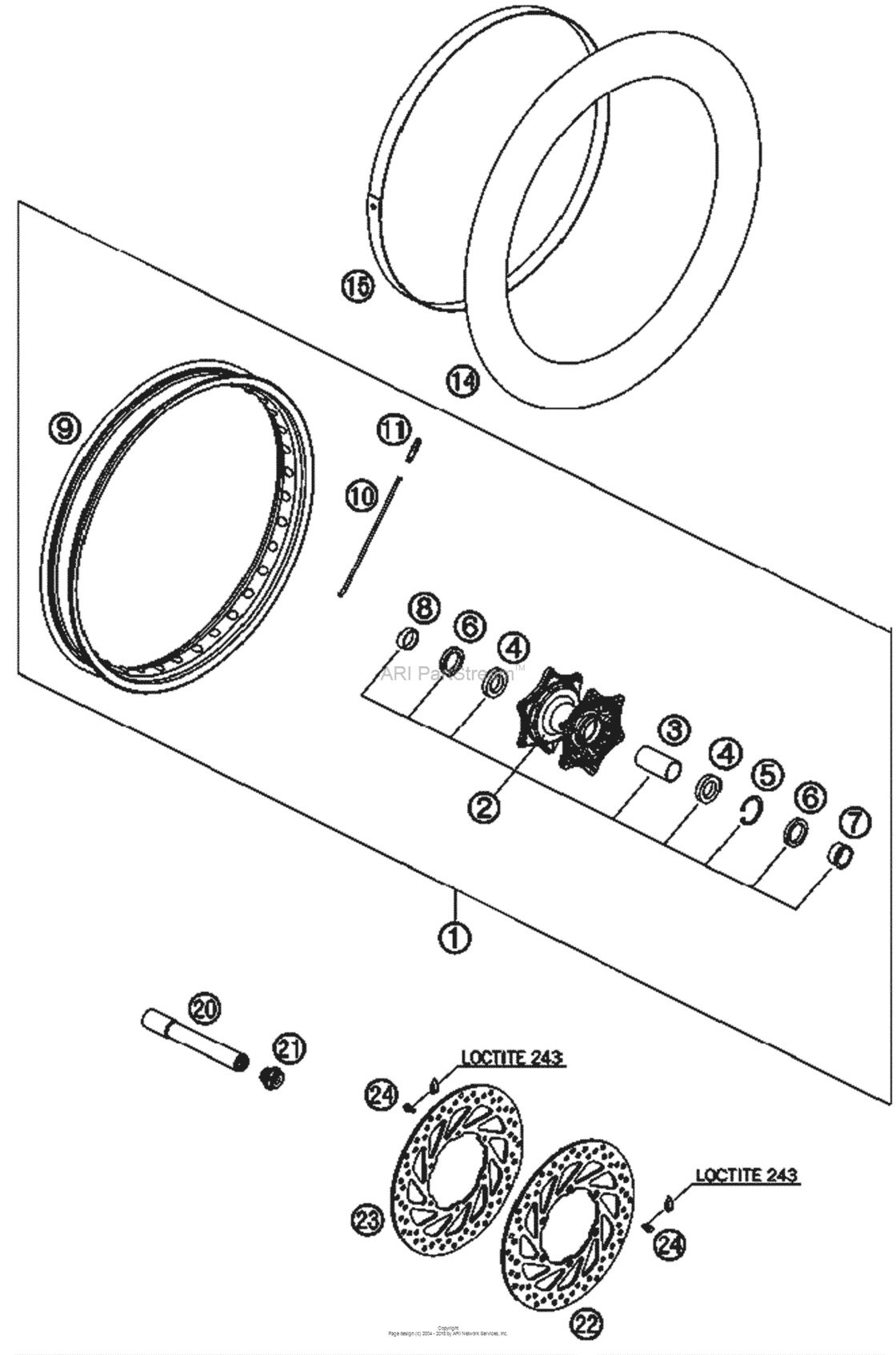

Front Wheel Diagram KTM 950 950 Adventure
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6000900104430 Front wheel cpl. 2,15x21"bl.03'98 |
6000900104430 |
US $1,096.98 |
||
| replacement | |||||
|
1
|
1
6000900114430 Fr. wheel cpl 2,15x21 black 07'98 |
6000900114430 |
US $973.78 |
||
|
2
|
2
60009010044 Front hub cpl. 03'98 |
60009010044 |
US $336.46 |
||
|
3
|
3
60009014000 Bear. spacertube front 03'98 |
60009014000 |
US $13.77 |
||
|
4
|
4
0625069068 Gr.ball Bear.6906 Ddu2Cg23S6Nm'98 |
0625069068 |
US $44.68 |
||
|
5
|
5
0472047175 Circlip Din0472-47X1,75'98 |
0472047175 |
US $3.89 |
||
|
6
|
6
0760354771 Shaft seal ring 35x47x7 tc'98 |
0760354771 |
US $11.19 |
||
|
7
|
7
60009012000 Spacer bush. fr. wheel l/s 03'98 |
60009012000 |
US $14.81 |
||
|
8
|
8
60009013000 Spacer bush. fr. wheel r/s 03'98 |
60009013000 |
US $12.75 |
||
|
9
|
9
6000907000030 Rim Front 2,15X21 Black 07'98 |
6000907000030 |
US $524.42 |
||
| replacement | |||||
|
9
|
9
6000907010030 Rim front 2,15x21" black 07'98 |
6000907010030 |
US $242.13 |
||
|
10
|
10
60009071000 Spoke m5x230,5 13,5 deg'98 |
60009071000 |
US $4.54 |
||
|
11
|
11
58309072000 Spoke Sipple Quadrax M5 Not Available'98 |
58309072000 |
US $2.35 |
||
| replacement | |||||
|
11
|
11
60310072000
SPOKE NIPPLE QUADRAX M5
'98 |
60310072000 |
— | ||
|
14
|
14
50309075000
Hose 21In
'98 |
50309075000 |
— | ||
|
15
|
15
60009073000 Rim tape 21" 28/ 2mm 03'98 |
60009073000 |
US $10.54 |
||
|
20
|
20
60009081000 Wheel spindel front 03'98 |
60009081000 |
US $64.72 |
||
|
21
|
21
60009082000 Collar screw front axle 03'98 |
60009082000 |
US $18.48 |
||
|
22
|
22
60009060000 Brake disk fr. l/s d=300mm 03'98 |
60009060000 |
US $189.64 |
||
|
23
|
23
60009065000 Brake disk fr. r/s d=300mm 03'98 |
60009065000 |
US $194.02 |
||
|
24
|
24
59009062013 Special Screw M6X13 Ws=8 10.9'98 |
59009062013 |
US $2.24 |
||
