	Description	OEM Part #	Price
1	1 1200Y002 Preload adjuster 5018 lc8 04 2005	1200Y002	US $404.72
2	2 50180366 Adaptor bush kgw 14x24 2005	50180366	—
3	3 46180003 Oil seal kgw d=25 2005	46180003	US $5.02
4	4 50180168 Washer kgw d=25 2005	50180168	US $1.87
5	5 50180005 Bushing kgw 1525 hd 2005	50180005	US $82.86
6	6 50180213S4 Dcc-compr.damp.control cpl. 03 2005	50180213S4	US $414.44
7	7 48600058 Vent screw m4x6 2005	48600058	US $2.09
8	8 48600009 O-ring nbr 3,7x1,6 2005	48600009	US $0.90
9	9 50180095 Bleed plug r 1/8 2005	50180095	US $9.15
10	10 46810016 O-ring nbr 48x2 2005	46810016	US $4.66
11	11 50180237 Reservoir screw l=123,5 d=52 2005	50180237	US $163.64
12	12 52000044 Sticker wp ktm 2005	52000044	US $4.34
	replacement
12	12 52000086 Sticker wp caution 27x55 2005	52000086	US $4.05
13	13 46180014 O-ring viton 41x5 2005	46180014	US $8.94
14	14 46180002 Separation piston d=52, h=32 2005	46180002	US $70.99
15	15 46180015 Piston ring 3,9x1,5x156 2005	46180015	US $12.04
16	16 50180344 Reservoir cap d=58 2005	50180344	US $139.01
17	17 46810893 O-ring nbr 5,28x1,78 2005	46810893	US $1.12
18	18 36120151 Screw plug m5x6 2005	36120151	US $7.31
19	19 46811208 Rubber cap "do not open" 2005	46811208	US $5.68
21	21 35480083 O-ring nbr 10x2 2005	35480083	US $1.89
22	22 40540440 Steel ball d=5 2005	40540440	US $1.21
23	23 46810332 Spring d=4,8 adjust knob cc 2005	46810332	—
27	27 46810003 O-ring nbr 17x3 2005	46810003	US $2.40
31	31 48600044 O-ring nbr 6x1,5 2005	48600044	US $1.14
32	32 50180381 Adjust knob pa 2005	50180381	US $28.63
33	33 46811771 Ah screw m 5x10 2005	46811771	US $4.05
34	34 50180370 Backup ring bg 2700646 2005	50180370	US $12.33
35	35 50180369 O-ring nbr 63,09x3,53 2005	50180369	US $5.20
36	36 50180371 Outer ring pa lc8 2005	50180371	US $231.37
37	37 50180372 O-ring 57,15x3,53 nbr 2005	50180372	US $5.34
38	38 50180373 Backup ring bu 2700580 2005	50180373	US $13.07
39	39 50180097 O-ring 52x2 2005	50180097	US $2.60
40	40 50180177 Washer 16x8,2x0,6 2005	50180177	US $2.04
41	41 50180300 Needle d=10 l=37 2005	50180300	US $25.42
42	42 50180437 Superseded By 50180579 2005	50180437	US $29.24
	replacement
42	42 50180579 SCREW CAP M20X1 D=11,5 H=5 2005	50180579	US $22.24
43	43 50180367 Tube m54x1 l=180 pds 2005	50180367	US $94.32
44	44 50180133 Circlip 50x1,5 2005	50180133	US $9.06
45	45 50180081 Spring guidance l=40 2005	50180081	US $16.12
46	46 50180114 Spacer ring for spring 2005	50180114	US $6.31
47	47 91210036 Spring 150-225 (62) d=14,5 2005	91210036	US $196.47
48	48 50180402 Interm.ring spring ret. h=3,5 2005	50180402	US $66.15
49	49 50180273 Circlip 58,2x2 2005	50180273	US $2.16
50	50 50180352 O-ring viton 66,27x3,53 2005	50180352	US $19.53
51	51 50180463S Spring Ret. D=80 W. O-Ring 05 2005	50180463S	US $64.87
52	52 50180141 Piston rod nut m16x1 2005	50180141	US $29.99
53	53 50180054 Shim 16x28x0,20 2005	50180054	US $7.40
53	53 50180209 Washer 21x36x0,25 2005	50180209	US $11.68
53	53 50180210 Washer 16x21x1 2005	50180210	US $6.31
54	54 50180099 O-ring viton 44,17x1,78 2005	50180099	US $4.06
55	55 50180197 Piston 6+6x7/4,5 2005	50180197	US $178.04
56	56 50180135 Piston ring 50-8 2005	50180135	US $18.97
57	57 50180062 Shim 16x44x0,20 2005	50180062	US $11.08
57	57 50180068 Shim 16x38x0,25 2005	50180068	US $8.79
57	57 50180069 Shim 16x40x0,25 2005	50180069	US $9.01
57	57 50180070 Shim 16x42x0,25 2005	50180070	US $6.87
57	57 50180074 Shim 16x32x0,30 2005	50180074	US $5.15
57	57 50180075 Shim 16x34x0,30 2005	50180075	US $6.95
57	57 50180076 Shim 16x36x0,30 2005	50180076	US $6.95
58	58 50180269 Sandwich bush d25xd16x14,5/d 2005	50180269	US $41
59	59 46811637 Pressure ring 36x32,25 2005	46811637	US $21.66
59	59 50180008 Shim 16x22x0,10 2005	50180008	US $2.96
59	59 50180035 Backplate 16x21x0,30 2005	50180035	US $2.65
59	59 50180047 Shim 16x32x0,15 2005	50180047	US $5.71
59	59 50180056 Shim 16x32x0,20 2005	50180056	US $6.05
59	59 50180057 Shim 16x34x0,20 2005	50180057	US $6.44
59	59 50180058 Shim 16x36x0,20 2005	50180058	US $6.44
60	60 50180197 Piston 6+6x7/4,5 2005	50180197	US $178.04
61	61 50180036 Backplate 16x22x0,30 2005	50180036	US $3.42
61	61 50180058 Shim 16x36x0,20 2005	50180058	US $6.44
61	61 50180059 Shim 16x38x0,20 2005	50180059	US $7.12
61	61 50180070 Shim 16x42x0,25 2005	50180070	US $6.87
61	61 50180071 Shim 16x44x0,25 2005	50180071	US $6.87
61	61 50180064 Shim 16x30x0,25 2005	50180064	US $5.53
61	61 50180065 Shim 16x32x0,25 2005	50180065	US $5.58
61	61 50180066 Shim 16x34x0,25 2005	50180066	US $10.81
61	61 50180069 Shim 16x40x0,25 2005	50180069	US $9.01
62	62 50180453 Shim rebound h=24 05 2005	50180453	US $69.79
63	63 50180200 Bush m8x1 2005	50180200	US $16.37
64	64 50180157 O-ring viton 7x1,5 2005	50180157	US $1.87
65	65 50180439 Needle seat m8x1 d=5,5 05 2005	50180439	US $33.01
66	66 50180363 Tube m8x1 l=138 2005	50180363	US $24.12
67	67 48600049 O-ring nbr 8x2 2005	48600049	US $3.67
68	68 50180279 Tube adaptor m8x1 l=23 2005	50180279	US $21.62
69	69 50180364 Needle l=161 2005	50180364	US $13.52
70	70 46811265 O-ring viton 2,2x1,6 2005	46811265	US $2.41
71	71 50180362 Piston rod d=18 m16x1 2005	50180362	US $245.09
72	72 50180349S1 Adaptor cpl. d=50, h=28,5 2005	50180349S1	US $206.94
73	73 50180107 Rebound rubber 2005	50180107	US $23.51
74	74 50180304 Steel disc 18,5x43,7x6 2005	50180304	US $24.63
75	75 50180102 Backupring 22,55x1,5 2005	50180102	US $6.31
76	76 50180101 Quad ring 18x2,62 2005	50180101	US $16.83
77	77 50180349 Adaptor d=50, h=28,5 2005	50180349	US $83.01
78	78 50180103 O-ring 41x5 2005	50180103	US $2.60
79	79 46180119 Du-bush 18x20x12 2005	46180119	US $25.99
80	80 50180082 Dust seal 1835 2005	50180082	US $28.29
81	81 50180126 Circlip 53x1,75 2005	50180126	US $2.53
82	82 50180165 Cover d=50 2005	50180165	US $54.67
83	83 50180276 Bump rubber wp60 d=18-26 2005	50180276	US $10.64
84	84 50180283 Contra nut m18x1 h=5 2005	50180283	US $28.88
85	85 50180358 Shock abs.bottom 54x20x32 2005	50180358	US $173.81
86	86 50180365 Adaptor bush kgw d=32 14x32 2005	50180365	US $18.90
87	87 50180159 Shaft seal ring kgw d=32 2005	50180159	US $6.97
88	88 50180175 Circlip kgw d=32 2005	50180175	US $5.71
89	89 50180179 Pivot bearing kgw 1632 2005	50180179	US $91.82
90	90 50180281 Reservoir cap m14x1 2005	50180281	US $30.74
91	91 50180222 O-ring nbr 4x1,5 2005	50180222	US $1.02
92	92 50180434 Adjusting Screw Rebound Travel 2005	50180434	—
	replacement
92	92 50180434S Adjusting Screw Rebound Travel 2005	50180434S	US $28.71
93	93 48600028 Spring d=2,9 l=7,9 2005	48600028	US $3.03
94	94 40540603 Steel ball d=3mm 2005	40540603	US $1.22
98	98 50180466S1 Shock Absorber Fluid 5 Lt 2005	50180466S1	—
	replacement
98	98 50180751S1 Shock Absorber Fluid 5 Lt 2005	50180751S1	—
99	99 R12008 Repair-kit gasket 5018 pds 03 2005	R12008	US $152.75

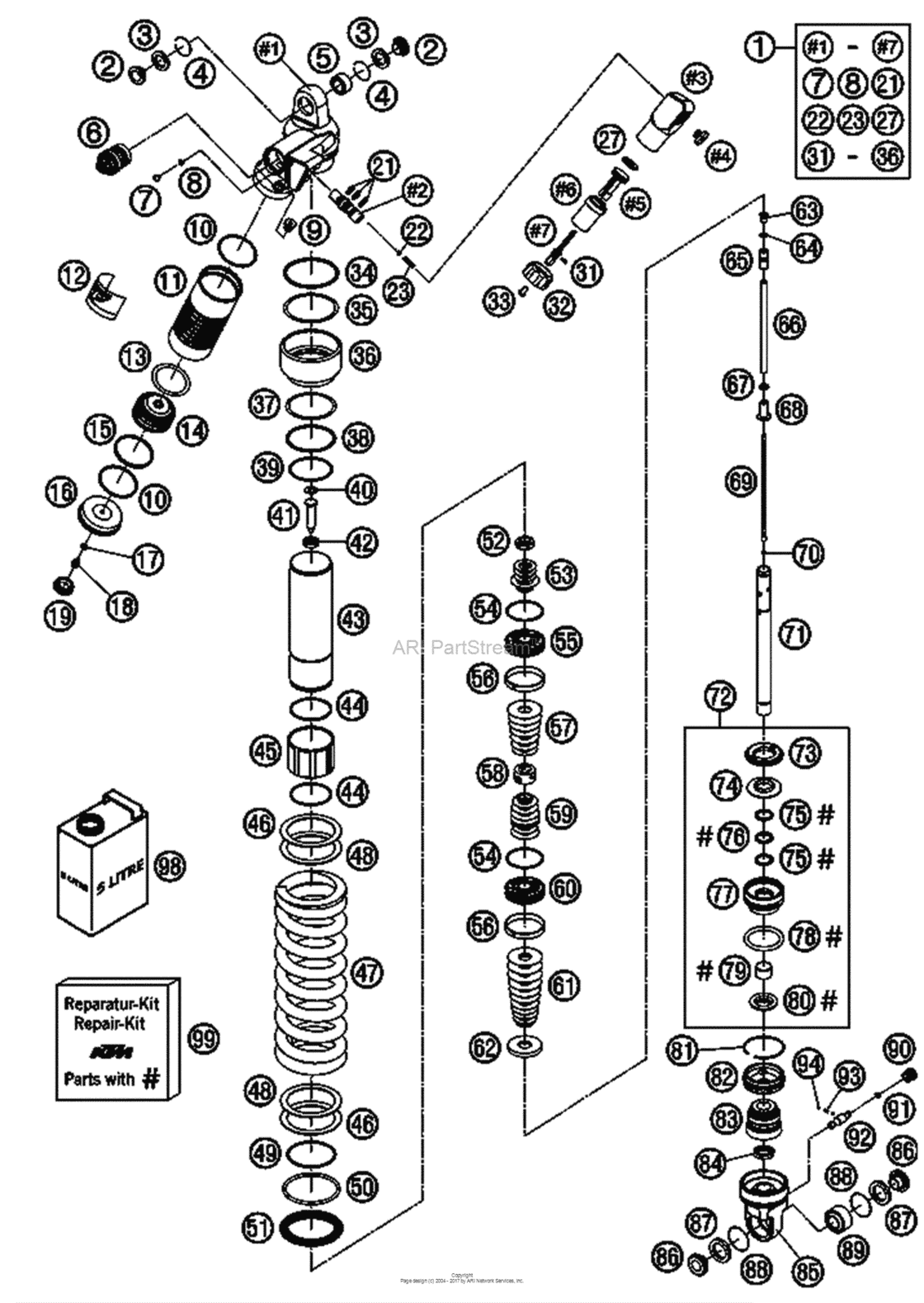

Shock Absorber Disassembled Diagram KTM 950 950 Adventure US/EU 18110352-940874

Shock Absorber Disassembled Diagram KTM 950 950 Adventure US/EU 18110352-940874
