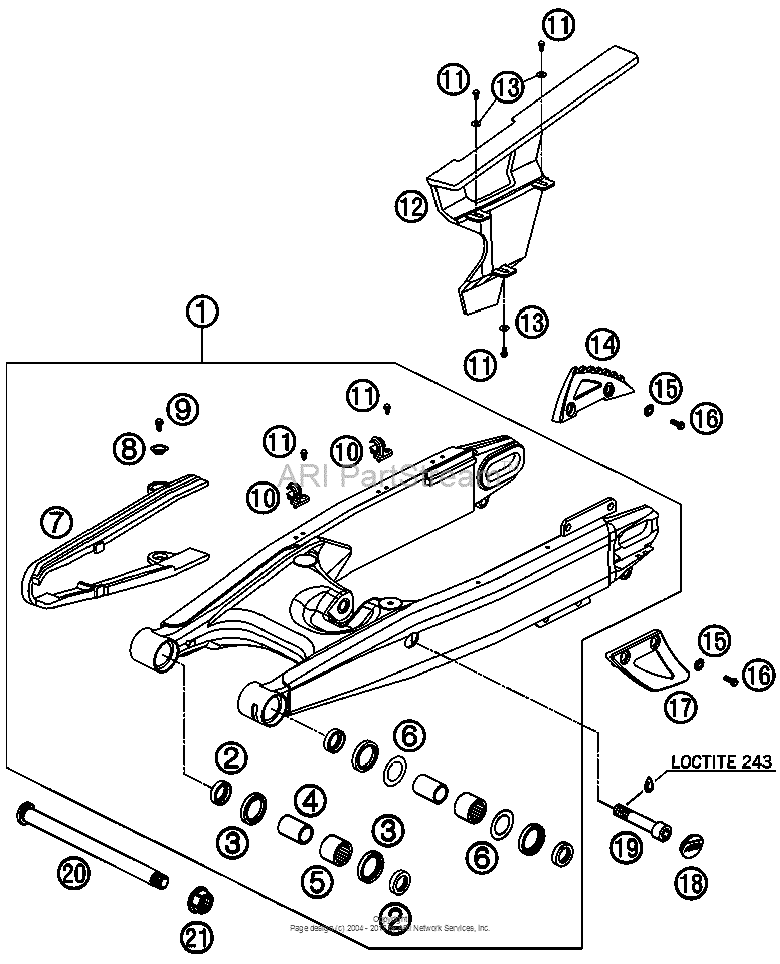

Swing Arm Diagram KTM 950 950 Adventure
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60004030244 Swingarm cpl. "g6" lc8 adv. 062005 |
60004030244 |
US $1,273.40 |
||
|
2
|
2
60004034000 Bucket f. shaft seal ring 032005 |
60004034000 |
US $7.40 |
||
|
3
|
3
0760304073 Shaft seal ring 30x40x72005 |
0760304073 |
US $5.20 |
||
|
4
|
4
60004032000 Inner ring jr20x25x38,5 032005 |
60004032000 |
US $22.93 |
||
|
5
|
5
60004031000 Needle bush hk2526b 032005 |
60004031000 |
US $13.46 |
||
|
6
|
6
60004033000 Stop disk 032005 |
60004033000 |
US $1.31 |
||
|
7
|
7
60004066000
Chain slid. guard swingarm 03
2005 |
60004066000 |
— | ||
|
8
|
8
72210079000 Bucket2005 |
72210079000 |
US $2.72 |
||
|
9
|
9
0015060103
Hh collar screw m 6x10 ws=8
2005 |
0015060103 |
— | ||
| replacement | |||||
|
9
|
9
0025060106 Hh collar screw m6x10 tx302005 |
0025060106 |
US $1.58 |
||
|
10
|
10
60104042000 Ret. clamp f. brake hose2005 |
60104042000 |
US $3.04 |
||
|
11
|
11
0009050103
Special screw m 5,0x10
2005 |
0009050103 |
— | ||
| replacement | |||||
|
11
|
11
0009050106 Ejot Spiral Screw Sf M5X10-K2005 |
0009050106 |
US $2.60 |
||
|
12
|
12
60004061000 Chainguard 062005 |
60004061000 |
US $11.63 |
||
| replacement | |||||
|
12
|
12
60004061100 Chainguard 062005 |
60004061100 |
US $14.65 |
||
|
13
|
13
0021050003 Washer din9021-a 5,32005 |
0021050003 |
US $1.29 |
||
|
14
|
14
60004075000 Rear sprocket guard 032005 |
60004075000 |
US $3.11 |
||
|
15
|
15
50308053000 Bush For Spoiler 6X11X16X7,52005 |
50308053000 |
US $5.80 |
||
|
16
|
16
0015060163 Hh Collar Screw M 6X16 Ws=82005 |
0015060163 |
US $2.23 |
||
|
17
|
17
60004070000 Chain guide 032005 |
60004070000 |
US $5.03 |
||
|
18
|
18
60004041000 Plug swingarm 032005 |
60004041000 |
US $8.50 |
||
|
19
|
19
60004017000 Screw m14x1,5 l=73mm 032005 |
60004017000 |
US $5.34 |
||
|
20
|
20
60004037144 Swingarm bolt cpl. 052005 |
60004037144 |
US $68.12 |
||
| replacement | |||||
|
20
|
20
60004037244 Swingarm bolt cpl.2005 |
60004037244 |
US $62.85 |
||
|
21
|
21
60004038000
Collar nut m19x1,5 ws=27mm 03
2005 |
60004038000 |
— | ||
| replacement | |||||
|
21
|
21
60004038200 Collar Nut M19X1,5 Sw=27Mm2005 |
60004038200 |
US $17.66 |
||
|
22
|
22
60104043000 Plug 062005 |
60104043000 |
US $0.48 |
||
