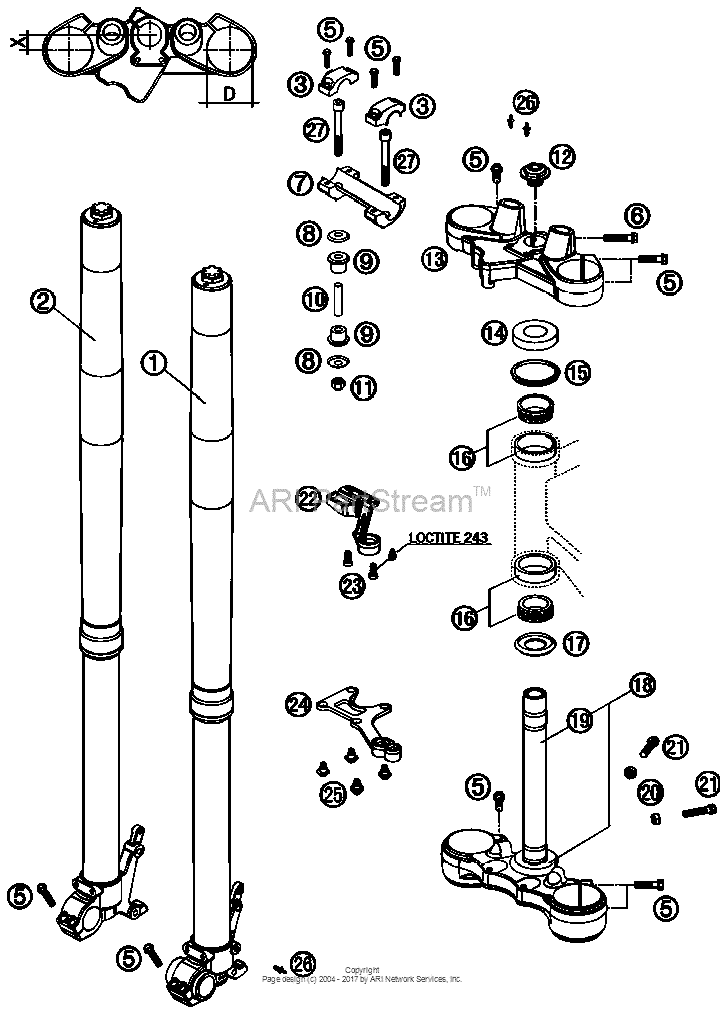

Telescopic Fork Diagram KTM 950 950 Adventure
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14187A24LS Fork leg l/s wp48 adv. 05As Required |
14187A24LS |
US $1,091.16 |
||
|
2
|
2
14187A24RS
Fork leg r/s wp48 adv. 05
As Required |
14187A24RS |
— | ||
|
3
|
3
59001038200 Handlebar Clamp D=28Mm 20002000 |
59001038200 |
US $21.10 |
||
|
5
|
5
0015080303
Hh Collar Screw M8X30 Tx40
2000 |
0015080303 |
— | ||
| replacement | |||||
|
5
|
5
0025080306 Hh collar screw m8x30 tx402000 |
0025080306 |
US $3.89 |
||
|
6
|
6
0015080353 Hh Collar Screw M 8X35 Ws=102000 |
0015080353 |
US $7.12 |
||
|
7
|
7
59001039100 Handlebar Support 28Mm Sc'99'99 |
59001039100 |
US $64.89 |
||
|
8
|
8
56401042000 Washer 10,5x32x2'99 |
56401042000 |
US $4.71 |
||
|
9
|
9
56401040000 Rubber bushing'99 |
56401040000 |
US $6.73 |
||
|
10
|
10
56401041100 Spacer tube 10,2x12x44'99 |
56401041100 |
US $5.25 |
||
|
11
|
11
0982100003 Self lock.nut din0982-m10 high'99 |
0982100003 |
US $2.35 |
||
|
12
|
12
54801036100 Ste.head scr. m20x1,5 ws=27 sl'99 |
54801036100 |
US $12.72 |
||
|
13
|
13
60001034018 Top triple clamp x=18mm/d=54mm'99 |
60001034018 |
US $223.53 |
||
| replacement | |||||
|
13
|
13
6000103401801 Top fork pl. d. x=18mm/d=54mm'99 |
6000103401801 |
US $208.08 |
||
|
14
|
14
54201086000 Steering Head Cover'99 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
14
|
14
78101086000 Steering Head Cover'99 |
78101086000 |
US $5.08 |
||
|
15
|
15
54601184000 Stearing head gasket top'99 |
54601184000 |
US $7.74 |
||
|
16
|
16
54201081100 Tapered Roller Bearing Cpl. 06'99 |
54201081100 |
US $53.18 |
||
|
17
|
17
54601084100 O-Ring Support W. Sealing Lip'99 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
17
|
17
77701084000 O-Ring Support W. Sealing Lip'99 |
77701084000 |
US $21.15 |
||
|
18
|
18
60001032018 Bottom Triple Clamp Cpl. D=60'99 |
60001032018 |
US $266.58 |
||
| replacement | |||||
|
18
|
18
6000103201801S Bottom triple clamp cpl. d=60'99 |
6000103201801S |
US $299.08 |
||
|
19
|
19
60001033000 Fork tube lc8 adv 03'99 |
60001033000 |
US $60.45 |
||
|
20
|
20
0934080003 Hexagon Nut Din0934-M 8'99 |
0934080003 |
US $3.26 |
||
|
21
|
21
0933080253 Hh Screw Din0933-M 8X25'99 |
0933080253 |
US $1.24 |
||
|
22
|
22
60001079000 Brake hose guide top 03'99 |
60001079000 |
US $4.06 |
||
|
23
|
23
0012060164 Ah screw din6912 m6x16 sl'99 |
0012060164 |
US $0.92 |
||
|
24
|
24
60008019000 Brake hose guide lower 03'99 |
60008019000 |
US $5.46 |
||
|
25
|
25
59001092050 Special Screw M6X12,5 Ws=8'99 |
59001092050 |
US $2.35 |
||
|
26
|
26
60003088000 Plastic cap for m6 03'99 |
60003088000 |
US $0.80 |
||
|
27
|
27
0984100703 Ah screw din6912-m10x70'99 |
0984100703 |
US $6.92 |
||
