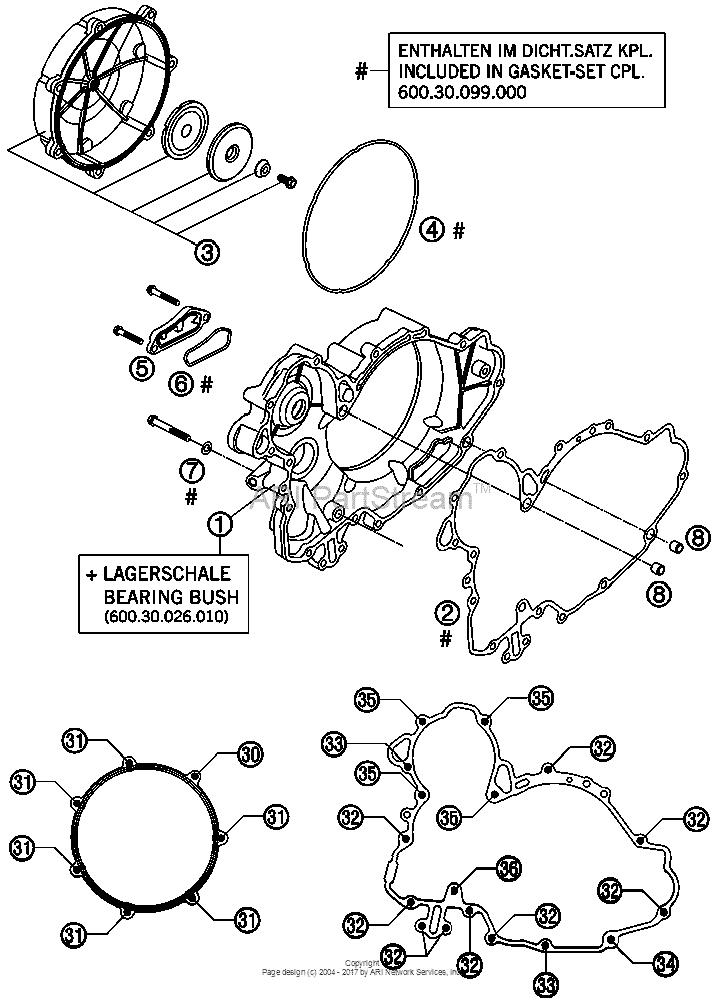

Clutch Cover Diagram KTM 950 950 Adventure
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60030001044 Clutch Cover Lc8 Cpl.08'98 |
60030001044 |
US $214.46 |
||
| replacement | |||||
|
1
|
1
6003000114423 Clutch cover lc8 cpl.08'98 |
6003000114423 |
US $203.32 |
||
|
2
|
2
60030025000 Clut.cov. gask. inside kli.sil'98 |
60030025000 |
US $30.99 |
||
|
3
|
3
60030126144
Clutch Outside Cover Cpl. 06
'98 |
60030126144 |
— | ||
| replacement | |||||
|
3
|
3
6003012614423 Clutch outside cover cpl. 06'98 |
6003012614423 |
US $86.99 |
||
|
4
|
4
60030027000 Gasket ring clutch 2x3,1 vamac'98 |
60030027000 |
US $17.73 |
||
|
5
|
5
60030012100 Clos. cover oil scr. milled 03'98 |
60030012100 |
US $22.95 |
||
|
6
|
6
60030012050 Molded ring 1,8x2,5 vamac 03'98 |
60030012050 |
US $10.59 |
||
|
7
|
7
0603082131 Copper gask.din7603- 8,2x13x1'98 |
0603082131 |
US $1.09 |
||
|
8
|
8
49030090000 Dowel 9,8 x 7 x 10'98 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
8
|
8
49030090100 Dowel 9,8 X7X10'98 |
49030090100 |
US $2.60 |
||
|
30
|
30
0015060853
Hh collar screw m 6x85 ws=8
'98 |
0015060853 |
— | ||
|
31
|
31
0015060253
Hh Collar Screw M6X25 Tx30
'98 |
0015060253 |
— | ||
| replacement | |||||
|
31
|
31
0025060256 Hh collar screw m6x25 tx30'98 |
0025060256 |
US $2.45 |
||
|
32
|
32
0015060303
Hh Collar Screw M6X30 Tx30
'98 |
0015060303 |
— | ||
| replacement | |||||
|
32
|
32
0025060306 Hh collar screw m6x30 tx30'98 |
0025060306 |
US $3.96 |
||
|
33
|
33
0015060353
Hh collar screw m 6x35 ws=8
'98 |
0015060353 |
— | ||
| replacement | |||||
|
33
|
33
0025060356 Hh collar screw m6x35 tx30'98 |
0025060356 |
US $6.15 |
||
|
34
|
34
0015060403
Hh Collar Screw M6X40 Tx30
'98 |
0015060403 |
— | ||
| replacement | |||||
|
34
|
34
0025060406 Hh collar screw m6x40 tx30'98 |
0025060406 |
US $2.23 |
||
|
35
|
35
0015060603
Hh collar screw m 6x60 ws=8
'98 |
0015060603 |
— | ||
| replacement | |||||
|
35
|
35
0025060606 Hh collar screw m6x60 tx30'98 |
0025060606 |
US $1.73 |
||
|
36
|
36
0015080603 Hh collar screw m 8x60 ws=10'98 |
0015080603 |
US $2.09 |
||
