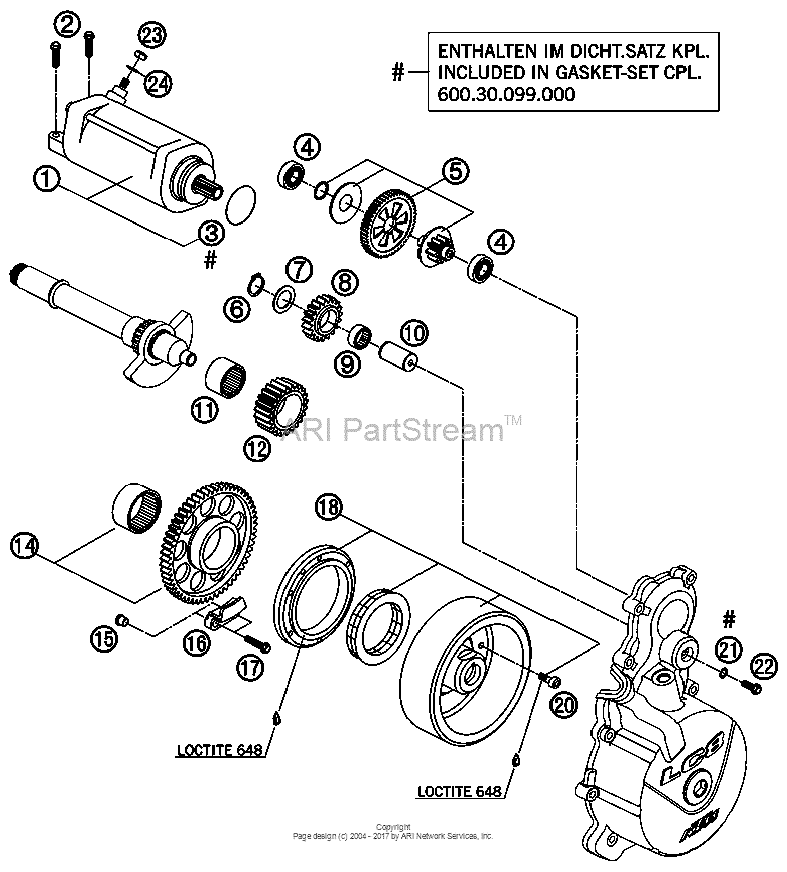

Electric Starter Diagram KTM 950 950 Adventure
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60040001000 E-starter engine cpl. lc8-e 03'97 |
60040001000 |
US $456.06 |
||
|
2
|
2
0015060253
Hh Collar Screw M6X25 Tx30
'97 |
0015060253 |
— | ||
| replacement | |||||
|
2
|
2
0025060256 Hh collar screw m6x25 tx30'97 |
0025060256 |
US $2.45 |
||
|
3
|
3
0770335030 O-ring 33,5x3 viton'97 |
0770335030 |
US $5.63 |
||
|
4
|
4
0625160011 Groov.ball bear. 16001 jrx c3'97 |
0625160011 |
US $12.43 |
||
|
5
|
5
60040016000
Modification Kit Torque Limit
'97 |
60040016000 |
— | ||
| replacement | |||||
|
5
|
5
60040016044
Modification kit torque limit.
'97 |
60040016044 |
— | ||
|
6
|
6
0471170010 Circlip Din0471-17X1'97 |
0471170010 |
US $1 |
||
|
7
|
7
50333041000 Stop disc 17,2x26x1 b'97 |
50333041000 |
US $1.94 |
||
|
8
|
8
60040022119 Idler gear 19-t 03'97 |
60040022119 |
US $42.96 |
||
|
9
|
9
0405172110 Needle Bearing K 17X21X10'97 |
0405172110 |
US $13.02 |
||
|
10
|
10
60040023000
Bearing bolt 17x33 03
'97 |
60040023000 |
— | ||
|
11
|
11
0618253220 Needle bush hk2520 25/32/20 02'97 |
0618253220 |
US $9.35 |
||
|
12
|
12
60040022023 Idler gear 2 23-t 03'97 |
60040022023 |
US $37.91 |
||
|
14
|
14
60040020000 Freewheel gear wh. 57-t cpl.03'97 |
60040020000 |
US $228.11 |
||
|
15
|
15
60040027050 Supporting sleeve 03'97 |
60040027050 |
US $6.41 |
||
|
16
|
16
60040027000 Freewheel holder 03'97 |
60040027000 |
US $4.79 |
||
|
17
|
17
0015060253
Hh Collar Screw M6X25 Tx30
'97 |
0015060253 |
— | ||
| replacement | |||||
|
17
|
17
0025060256 Hh collar screw m6x25 tx30'97 |
0025060256 |
US $2.45 |
||
|
18
|
18
60039005100 Ignition rotor 04'97 |
60039005100 |
US $800.22 |
||
|
20
|
20
0984060166 Ah screw din6912 m6x16 10.9'97 |
0984060166 |
US $5.17 |
||
|
21
|
21
0603061001 Cu-Seal Ring Din7603-6X10X1'97 |
0603061001 |
US $2.64 |
||
|
22
|
22
0015060163 Hh Collar Screw M 6X16 Ws=8'97 |
0015060163 |
US $2.23 |
||
|
23
|
23
0985060003 Self Lock. Nut Din0985-M 6'97 |
0985060003 |
US $2.60 |
||
|
24
|
24
0125060003 Washer Din0125-A 6,4'97 |
0125060003 |
US $0.37 |
||
