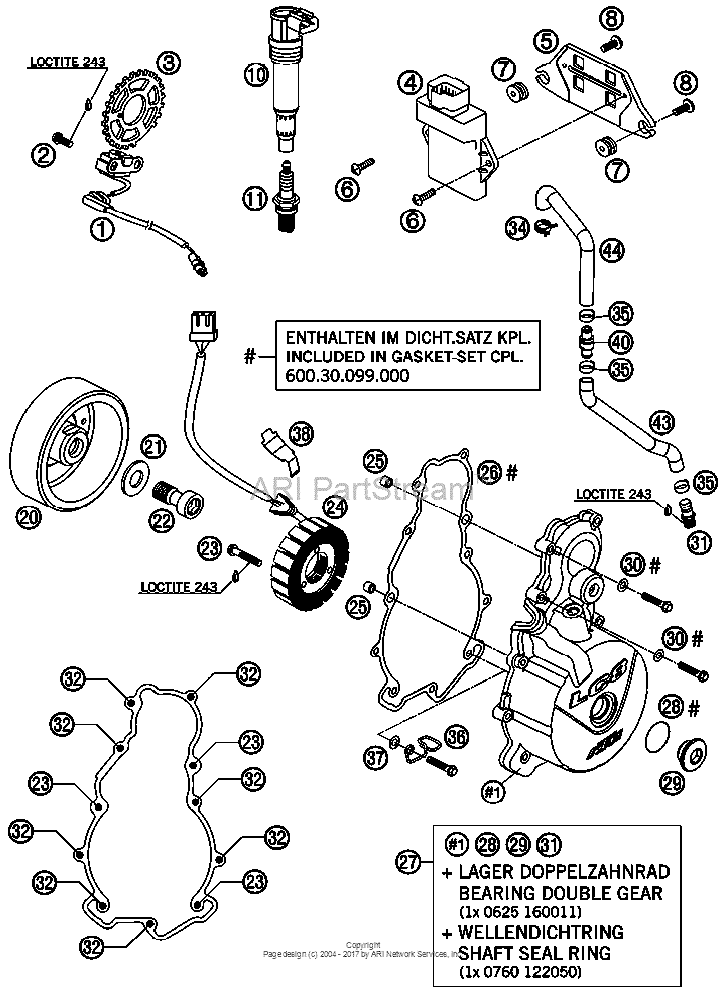

Ignition System Diagram KTM 950 950 Adventure
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60039034100 Pulse generator lc8 04'97 |
60039034100 |
US $118.68 |
||
|
2
|
2
0015060163 Hh Collar Screw M 6X16 Ws=8'97 |
0015060163 |
US $2.23 |
||
|
3
|
3
60039020100 Trigger wheel 03'97 |
60039020100 |
US $5.44 |
||
|
4
|
4
62539031000 Digitalbox 950sm 05'97 |
62539031000 |
US $469.80 |
||
|
5
|
5
60039028000 Adapter plate digitalbox 03'97 |
60039028000 |
US $5.03 |
||
|
6
|
6
0081500181 Screw for plastic d=5x18'97 |
0081500181 |
US $1.02 |
||
| replacement | |||||
|
6
|
6
0081050181 Screw for plastic k50x18 t20'97 |
0081050181 |
US $0.73 |
||
|
7
|
7
60039030000 Vibration damper digitalbox 03'97 |
60039030000 |
US $2.43 |
||
|
8
|
8
0014060153
Hh Collar Screw M6X15 Tx30
'97 |
0014060153 |
— | ||
| replacement | |||||
|
8
|
8
0024060156 Hh collar screw m6x15 tx30'97 |
0024060156 |
US $3.96 |
||
|
10
|
10
60039006000 Stick coil 03'97 |
60039006000 |
US $83.13 |
||
|
11
|
11
59039093000 Spark plug cr8ek'97 |
59039093000 |
US $13.07 |
||
|
20
|
20
60039005100 Ignition rotor 04'97 |
60039005100 |
US $800.22 |
||
|
21
|
21
60039040010 Washer 17x32x4 03'97 |
60039040010 |
US $4.37 |
||
|
22
|
22
60039003000 Ah expand. screw m16x35 8.8As Required |
60039003000 |
US $6.46 |
||
|
22
|
22
60039003100 Ah expand. screw m16x1,5 05As Required |
60039003100 |
US $8.26 |
||
|
23
|
23
0015060353
Hh collar screw m 6x35 ws=8
As Required |
0015060353 |
— | ||
| replacement | |||||
|
23
|
23
0025060356 Hh collar screw m6x35 tx30As Required |
0025060356 |
US $6.15 |
||
|
24
|
24
60039004000
Stator 03
As Required |
60039004000 |
— | ||
|
25
|
25
49030090000 Dowel 9,8 x 7 x 10As Required |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
25
|
25
49030090100 Dowel 9,8 X7X10As Required |
49030090100 |
US $2.60 |
||
|
26
|
26
60030040100 Ignit.cover gask.matri.cs0,5mmAs Required |
60030040100 |
US $40.19 |
||
|
27
|
27
60030002044 Ignition Cover Cpl. 06As Required |
60030002044 |
US $194.12 |
||
| replacement | |||||
|
27
|
27
6003000214423 Ignition cover cpl. 06As Required |
6003000214423 |
US $180.05 |
||
|
28
|
28
0770024025
O-ring 24x2,5 nbr
As Required |
0770024025 |
— | ||
| replacement | |||||
|
28
|
28
07700240251 O-ring 24x2,5 vitonAs Required |
07700240251 |
US $3.96 |
||
|
29
|
29
60030094000 Screw Plug M24X1,5 Pa 6.6As Required |
60030094000 |
US $2.96 |
||
| replacement | |||||
|
29
|
29
6003009400023 Screw plug m24x1,5 pa 6.6As Required |
6003009400023 |
US $1.94 |
||
|
30
|
30
0603061001 Cu-Seal Ring Din7603-6X10X1As Required |
0603061001 |
US $2.64 |
||
|
31
|
31
60030022000 Ventilation connector m16x1,5As Required |
60030022000 |
US $7.28 |
||
|
32
|
32
0015060303
Hh Collar Screw M6X30 Tx30
As Required |
0015060303 |
— | ||
| replacement | |||||
|
32
|
32
0025060306 Hh collar screw m6x30 tx30As Required |
0025060306 |
US $3.96 |
||
|
34
|
34
00049220121 Clamp std dn22As Required |
00049220121 |
US $1.04 |
||
|
35
|
35
00050226706 Variable one-ear clamp 22,6mmAs Required |
00050226706 |
US $2.09 |
||
|
36
|
36
60011094000 Cable support 03As Required |
60011094000 |
US $4.71 |
||
|
37
|
37
0125060003 Washer Din0125-A 6,4As Required |
0125060003 |
US $0.37 |
||
|
38
|
38
60039040020 Cable support generator 03As Required |
60039040020 |
US $2.62 |
||
|
40
|
40
60030090300 Back-Pressure Valve CplAs Required |
60030090300 |
US $38.34 |
||
|
43
|
43
60030087101 Engine breather hose bottomAs Required |
60030087101 |
US $52.68 |
||
|
44
|
44
60030087102 Engine breather hose topAs Required |
60030087102 |
US $24.84 |
||
