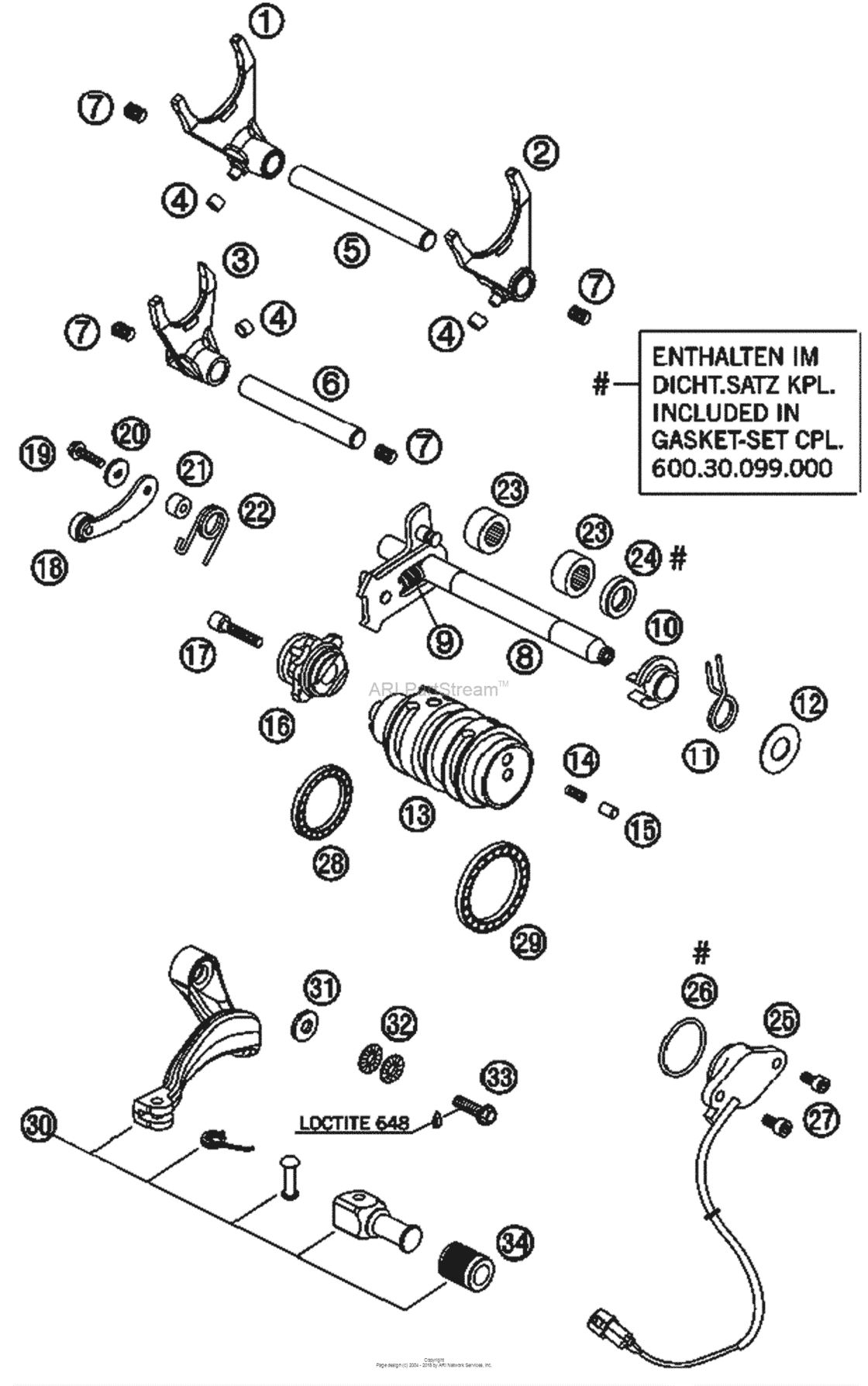

Shfting Mechanisam Diagram KTM 950 950 Adventure
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60034001000 Shift Fork 1-4 GearAs Required |
60034001000 |
US $79.32 |
||
| replacement | |||||
|
1
|
1
60034001100 Shift fork 1-4 gearAs Required |
60034001100 |
US $49.16 |
||
|
2
|
2
60034002000 Shift Fork 2-3 GearAs Required |
60034002000 |
US $79.32 |
||
| replacement | |||||
|
2
|
2
60034002100 Shift fork 2-3 gearAs Required |
60034002100 |
US $54.64 |
||
|
3
|
3
60034003000 Shift Fork 5-6 GearAs Required |
60034003000 |
US $78.37 |
||
| replacement | |||||
|
3
|
3
60034003100 Shift fork 5-6 gearAs Required |
60034003100 |
US $49.16 |
||
|
4
|
4
50334018100 Shifting Roller 6X8X5,2As Required |
50334018100 |
US $3.04 |
||
|
5
|
5
59034020000 Shift rail 11,8x105mmAs Required |
59034020000 |
US $11.78 |
||
|
6
|
6
59034019000 Shift rail 11,8x89mmAs Required |
59034019000 |
US $11.12 |
||
|
7
|
7
58038023200 Pressure spring 0,9mmAs Required |
58038023200 |
US $2.84 |
||
|
8
|
8
60034005044 Shift shaft cpl. 03As Required |
60034005044 |
US $68.43 |
||
| replacement | |||||
|
8
|
8
60034005133 Shift Shaft CplAs Required |
60034005133 |
US $94.91 |
||
|
9
|
9
56534013100 Tensioning Spring 0,8MmAs Required |
56534013100 |
US $2.94 |
||
|
10
|
10
54634020000 Spring guideAs Required |
54634020000 |
US $5.66 |
||
|
11
|
11
54634014100 Return spring 2,2mm '95'95 |
54634014100 |
US $6.60 |
||
|
12
|
12
54634050000 Stop disk 14x30x1'95 |
54634050000 |
US $0.71 |
||
|
13
|
13
60034012300 Shift roller cpl. 06'95 |
60034012300 |
US $120.53 |
||
|
14
|
14
60034014000 Contact spring 03'95 |
60034014000 |
US $0.65 |
||
|
15
|
15
60034037000 Contact bolt 03'95 |
60034037000 |
US $2.77 |
||
|
16
|
16
60034015044 Shift arresting cpl. 03'95 |
60034015044 |
US $37.47 |
||
|
17
|
17
0984060302 Ah screw din6912 m 6x30'95 |
0984060302 |
US $0.80 |
||
|
18
|
18
60034024044 Arresting lever cpl. 03'95 |
60034024044 |
US $12.34 |
||
| replacement | |||||
|
18
|
18
60034024144 Locking Lever Cpl'95 |
60034024144 |
US $10.90 |
||
|
19
|
19
0015050203
Hh Collar Screw M5X20 Tx30
'95 |
0015050203 |
— | ||
| replacement | |||||
|
19
|
19
0025050206 Hh collar screw m5x20 tx30'95 |
0025050206 |
US $1.33 |
||
|
20
|
20
0349000050 Washer din7349-5x15x2'95 |
0349000050 |
US $0.65 |
||
|
21
|
21
54634052300 Sleeve for locking lever'95 |
54634052300 |
US $2.67 |
||
|
22
|
22
60034023000 Arresting lever spring 03'95 |
60034023000 |
US $1.45 |
||
|
23
|
23
54632095000 Needle bear.hk 1412 14x20x12'95 |
54632095000 |
US $7.60 |
||
|
24
|
24
0760142460 Shaft seal ring 14x24x6 b'95 |
0760142460 |
US $11.70 |
||
|
25
|
25
60011023000
Gear-Position Sensor 06
'95 |
60011023000 |
— | ||
| replacement | |||||
|
25
|
25
60011023100 Gear-position sensor 06'95 |
60011023100 |
US $48.48 |
||
|
26
|
26
0770275025 O-ring 27,5x2,5 nbr'95 |
0770275025 |
US $1.29 |
||
|
27
|
27
0912050103 Ah Screw Din0912-M 5X10'95 |
0912050103 |
US $0.54 |
||
|
28
|
28
0625618050 Ball bearing 61805 c3'95 |
0625618050 |
US $39.98 |
||
|
29
|
29
0625068080 Grooved ball bearing 6808 jrc3'95 |
0625068080 |
US $33.24 |
||
|
30
|
30
60034031044
Shift Lever Cpl. 07
'95 |
60034031044 |
— | ||
| replacement | |||||
|
30
|
30
6003403104401S Shift lever cpl. 07'95 |
6003403104401S |
US $134.74 |
||
|
31
|
31
50232050001 Steel washer 6,4x17x3'95 |
50232050001 |
US $4.86 |
||
|
32
|
32
50233041000 Pair of washers m 6 nordlock'95 |
50233041000 |
US $3.25 |
||
|
33
|
33
59009062019 Special screw m6x19 ws=8 10.9'95 |
59009062019 |
US $1.22 |
||
|
34
|
34
36205018000 Rubber'95 |
36205018000 |
US $4.88 |
||
