	Description	OEM Part #	Price
1	1 60036010144 Camshaft Exhaust As Required	60036010144	—
	replacement
1	1 60036010200 Camshaft exhaust As Required	60036010200	US $558.84
2	2 60036009144 Camshaft intake cpl. front 03 As Required	60036009144	—
	replacement
2	2 60036009200 CAMSHAFT INTAKE As Required	60036009200	US $368.41
3	3 60036109144 Camshaft intake cpl. rear 03 As Required	60036109144	US $145.93
4	4 60036110144 Camshaft exhaust cpl. rear 03 As Required	60036110144	—
	replacement
4	4 60036110200 CAMSHAFT EXHAUST As Required	60036110200	US $380.66
5	5 60036070000 Timing gears 32-t cpl. 03 As Required	60036070000	US $117.76
6	6 0405182420 Needle bearing k18/24/20 As Required	0405182420	US $22.64
7	7 0770290020 O-ring 29x2 viton As Required	0770290020	US $2.33
8	8 60036071044 Bearing Bolt As Required	60036071044	US $25.26
	replacement
8	8 60036071100 Bearing bolt As Required	60036071100	US $40.85
9	9 60036013000 Tooth chain 88 link 6,35pitch As Required	60036013000	US $80.75
10	10 60036001000 Guide rail 03 As Required	60036001000	US $6.09
11	11 60036002060 Bushing screw 2 cyl. 03 As Required	60036002060	US $11.51
12	12 60036002000 Tensioner rail cpl. front 03 As Required	60036002000	US $7.96
13	13 60036002050 Collar screw ah m8 03 As Required	60036002050	US $11.02
14	14 60036102000 Tensioner rail cpl. rear 03 As Required	60036102000	US $12.17
15	15 60036008000 Screw plug m16x1,5 03 As Required	60036008000	US $9.64
16	16 0603162013 Cu seal-ring din7603 16x20x1,3 As Required	0603162013	US $1.29
17	17 60036003000 Timing-ch.tens. hydr.(75ym) 03 As Required	60036003000	US $67.30
18	18 0603082121 Seal ring cu din7603- 8x12x1 As Required	0603082121	US $2.40

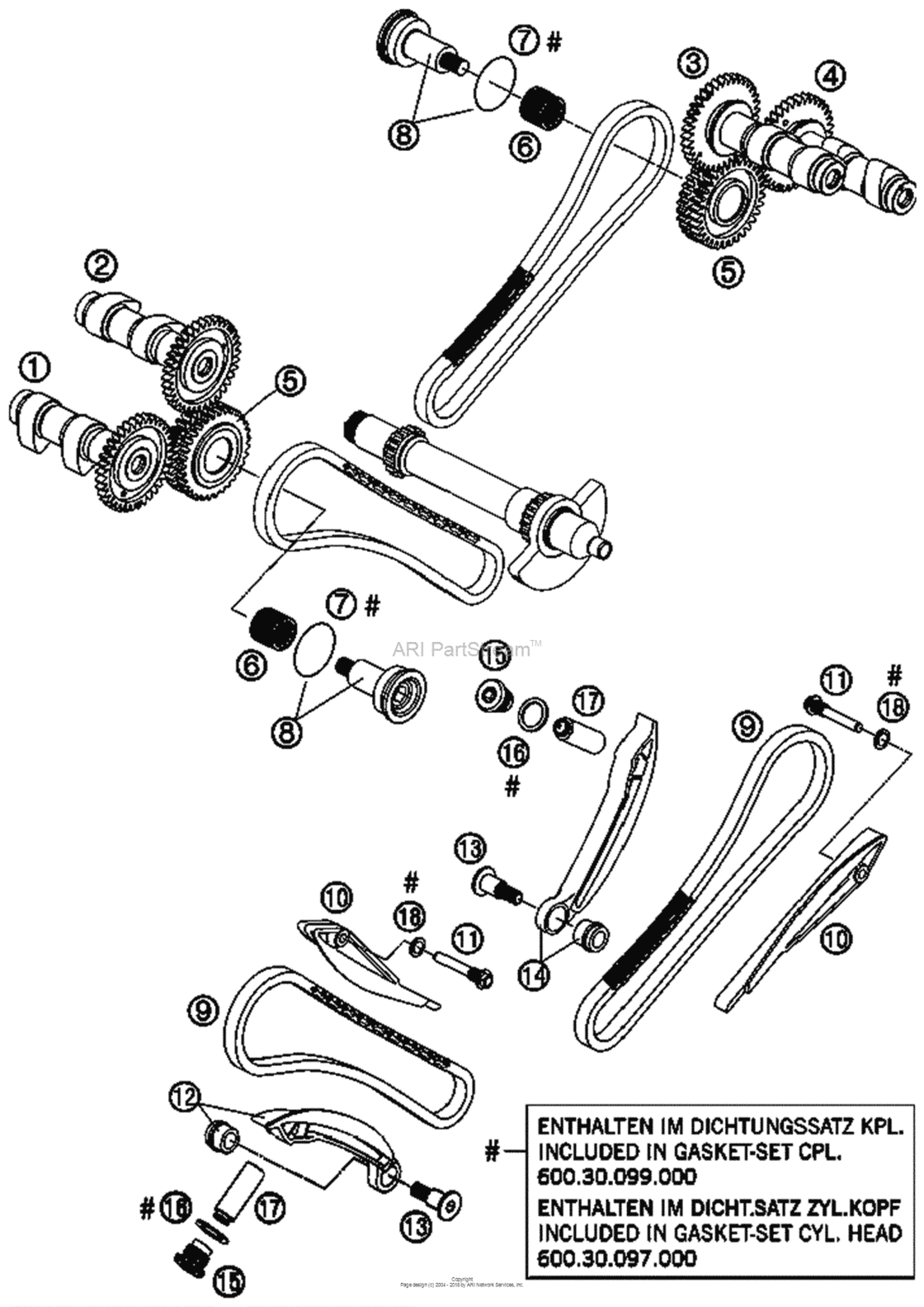

Timing Valve Diagram KTM 950 950 Adventure US/EU 18110375-940875

Timing Valve Diagram KTM 950 950 Adventure US/EU 18110375-940875
