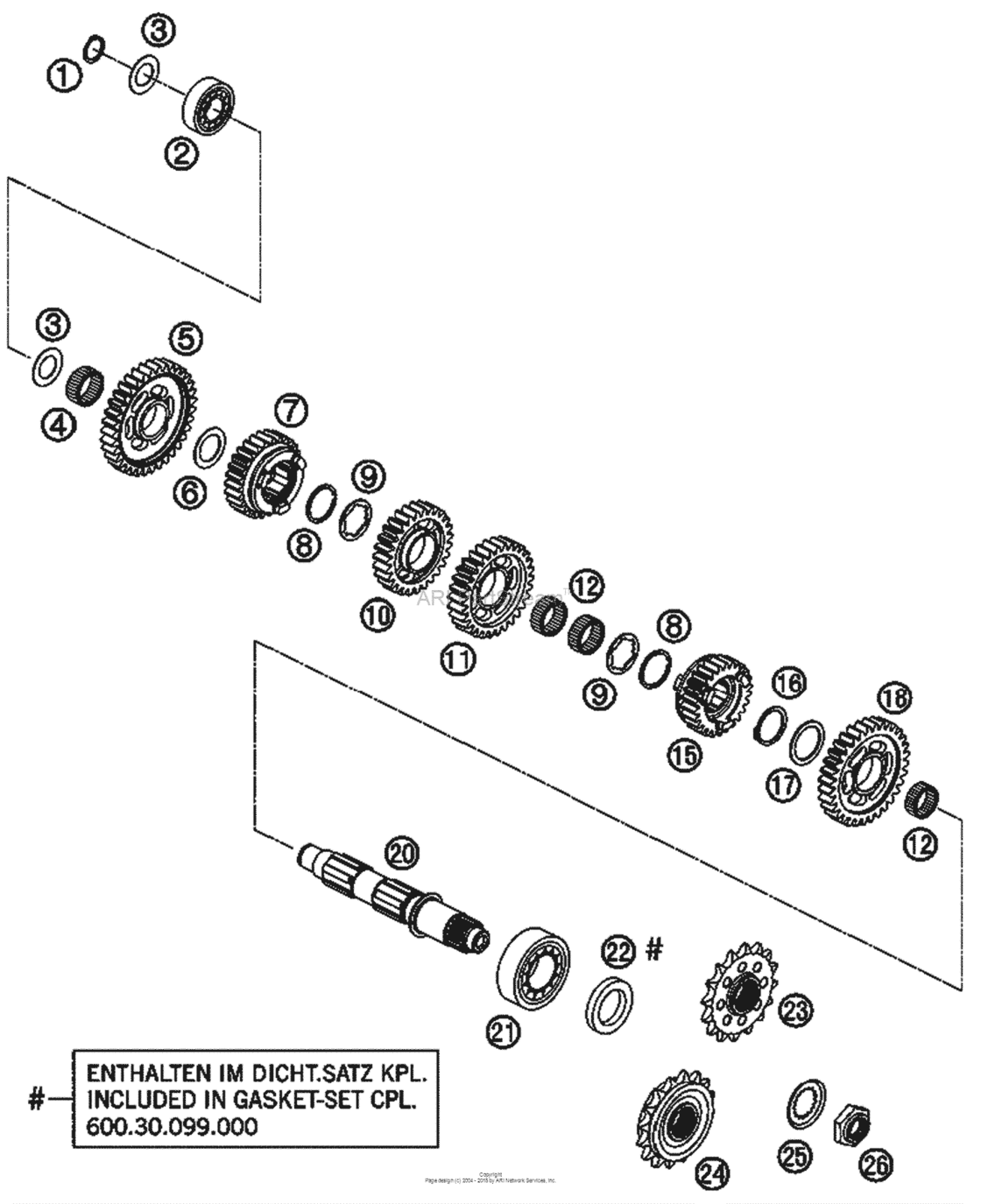

Transmission Ii - Countershaft Diagram KTM 950 950 Adventure
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0471200120 Circlip din471 20x1,2As Required |
0471200120 |
US $1.29 |
||
|
2
|
2
0625062040 Ball bearing 6204 du j1 c3As Required |
0625062040 |
US $29.73 |
||
|
3
|
3
60033043000 Stop disk 20,2 x 34 x 1As Required |
60033043000 |
US $1.58 |
||
|
4
|
4
0405242813 Needle bear. k 24x28x13 tnAs Required |
0405242813 |
US $18.80 |
||
|
5
|
5
60033011000 Idler gear 1.g "600 1s35"As Required |
60033011000 |
US $86.29 |
||
|
6
|
6
60033044000 Stop disk 24,3/35,75/1As Required |
60033044000 |
US $2.09 |
||
|
7
|
7
60033015000 Sliding gear 5.g "600 5s27"As Required |
60033015000 |
US $142.24 |
||
|
8
|
8
0417300151
Lock ring ws 30
As Required |
0417300151 |
— | ||
| replacement | |||||
|
8
|
8
0417290151 Lock ring ws30As Required |
0417290151 |
US $2.14 |
||
|
9
|
9
60033045000 Stop disk 26,2/36/1,5As Required |
60033045000 |
US $4.32 |
||
|
10
|
10
60033014000 Idler gear 4.g "600 4s27"As Required |
60033014000 |
US $113.49 |
||
|
11
|
11
60033013000 Idler gear 3.g "600 3s30"As Required |
60033013000 |
US $105.89 |
||
|
12
|
12
0405263113 Needle bear. k 26-31-13As Required |
0405263113 |
US $8.08 |
||
|
15
|
15
60033016000 Sliding gear 6.g "600 6s26"As Required |
60033016000 |
US $143.17 |
||
|
16
|
16
0471300151 Circlip din0471-30x1,5 niroAs Required |
0471300151 |
US $7.57 |
||
|
17
|
17
60033046000 Stop disk 30,2/39/1,5As Required |
60033046000 |
US $3.04 |
||
|
18
|
18
60033012000 Idler gear 2.g "600 2s32"As Required |
60033012000 |
US $105.89 |
||
|
20
|
20
60033010000
Countershaft 03
As Required |
60033010000 |
— | ||
|
21
|
21
50330082000 Cyl.roller Bear.nj206 Et2Xcs46As Required |
50330082000 |
US $91.46 |
||
|
22
|
22
0760304772 Sh.seal Ring 30X47X7 Bsl VitonAs Required |
0760304772 |
US $26.23 |
||
|
23
|
23
60033029016
Chain Sprocket 16-T
As Required |
60033029016 |
— | ||
| replacement | |||||
|
23
|
23
60033129016 Chain sprocket 16-t damp 03As Required |
60033129016 |
US $60.18 |
||
|
23
|
23
60033029017 Chain sprocket 17-t 03As Required |
60033029017 |
US $45.65 |
||
|
24
|
24
60033129017 Chain sprocket 17-t damped 03As Required |
60033129017 |
US $62.02 |
||
|
25
|
25
60033034000 Securing plate toothed 03As Required |
60033034000 |
US $3.26 |
||
|
26
|
26
60033035000 Hexagon nut m20x1,5 03As Required |
60033035000 |
US $11.56 |
||
