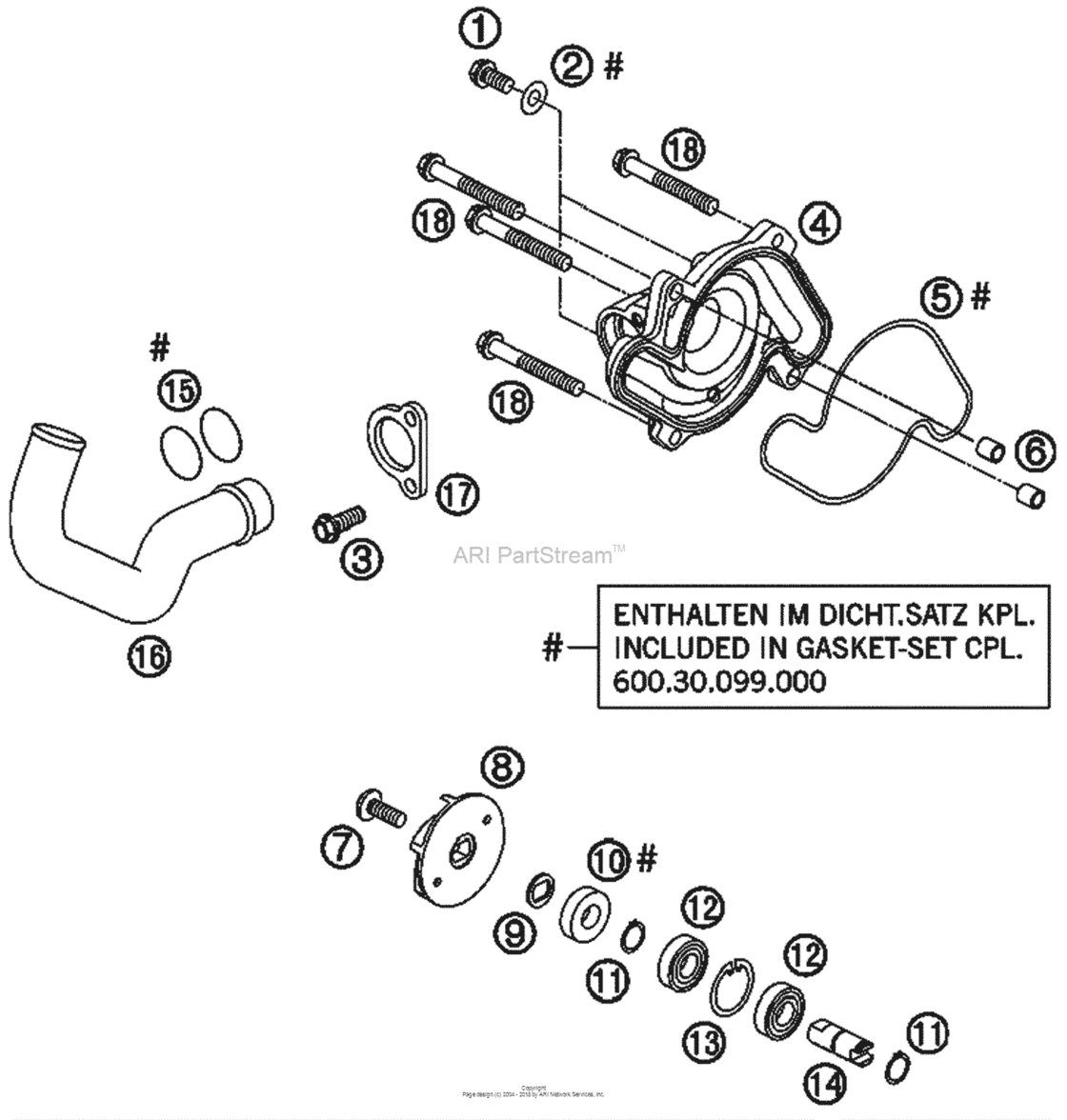

Water Pump Diagram KTM 950 950 Adventure
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0015060103
Hh collar screw m 6x10 ws=8
As Required |
0015060103 |
— | ||
| replacement | |||||
|
1
|
1
0025060106 Hh collar screw m6x10 tx30As Required |
0025060106 |
US $1.58 |
||
|
2
|
2
0603061001 Cu-Seal Ring Din7603-6X10X1As Required |
0603061001 |
US $2.64 |
||
|
3
|
3
0015060163 Hh Collar Screw M 6X16 Ws=8As Required |
0015060163 |
US $2.23 |
||
|
4
|
4
60035052000 Waterpump CoverAs Required |
60035052000 |
US $63.61 |
||
| replacement | |||||
|
4
|
4
6003505210023 Waterpump coverAs Required |
6003505210023 |
US $54.42 |
||
|
5
|
5
60035053000 Water-pump gasket 03As Required |
60035053000 |
US $8.65 |
||
|
6
|
6
59030023000 Dowel 6X8X11,5As Required |
59030023000 |
US $2.92 |
||
|
7
|
7
0014060153
Hh Collar Screw M6X15 Tx30
As Required |
0014060153 |
— | ||
| replacement | |||||
|
7
|
7
0024060156 Hh collar screw m6x15 tx30As Required |
0024060156 |
US $3.96 |
||
|
8
|
8
60035055100 Water-pump wheel lc8 03As Required |
60035055100 |
US $5.78 |
||
|
9
|
9
60035055150 Form washer 16x1 niro 03As Required |
60035055150 |
US $1.31 |
||
|
10
|
10
0760123072
Shaft Seal Ring 12X30X7 Ptfe
As Required |
0760123072 |
— | ||
| replacement | |||||
|
10
|
10
0760123073 Shaft seal ring 12x30x7 ptfeAs Required |
0760123073 |
US $16.13 |
||
|
11
|
11
0471120010 Circlip din0471-12x1As Required |
0471120010 |
US $1.12 |
||
|
12
|
12
0625069010 Grooved ball bearing 6901v c3As Required |
0625069010 |
US $21.81 |
||
|
13
|
13
0472240120 Circlip din472 d=24x1,2As Required |
0472240120 |
US $0.36 |
||
|
14
|
14
60035054000
Water Pump Shaft W/ Seal Ring
As Required |
60035054000 |
— | ||
| replacement | |||||
|
14
|
14
60035054144 Water pump shaft w/ seal ringAs Required |
60035054144 |
US $70.09 |
||
|
15
|
15
0770250030 O-ring 25,00x3,00 nbr 70As Required |
0770250030 |
US $4.35 |
||
|
16
|
16
60035021000 Aluminum tube water-pump+clampAs Required |
60035021000 |
US $37.13 |
||
|
17
|
17
60035021050 Fixing clamp water-p. tube 03As Required |
60035021050 |
US $8.64 |
||
|
18
|
18
0015060603
Hh collar screw m 6x60 ws=8
As Required |
0015060603 |
— | ||
| replacement | |||||
|
18
|
18
0025060606 Hh collar screw m6x60 tx30As Required |
0025060606 |
US $1.73 |
||
