Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 60002001000 Handlebar d=28mm 03 03	60002001000	US $248.25
	replacement
1	1 60002001100 Handlebar d=28mm neken 08 03	60002001100	US $170.92
2	2 58702010000 Throttle grip cpl. duke 2000 2000	58702010000	US $63.24
3	3 58302021100 Gripp set full waffle 2000	58302021100	US $29.46
5	5 60002091100 Throttle Cable Cpl 2000	60002091100	US $98.29
6	6 58412040100 Rear mirror l/s+r/s lc4 2001 2001	58412040100	US $66.86
9	9 58411049100 Clutch switch 03 03	58411049100	US $54.57
10	10 60002130000 Master cylinder magura d=10.5 03	60002130000	US $368.10
	replacement
10	10 76502013000 Master Cylinder Magura D=11Mm 03	76502013000	US $348.47
11	11 60002044000 Clamp mirror with clamp 03	60002044000	US $50.83
12	12 0025060206 Hh collar screw m6x20 tx30 03	0025060206	US $1.97
14	14 0965040123 Flat head screw din0965-m 4x12 03	0965040123	US $0.56
16	16 50302034000 Rubber for reservoir '98 98	50302034000	US $16.18
17	17 50302032000 Rep.set piston magura d=10.5 98	50302032000	US $116.60
18	18 50302037000 Protect.cap For Lever Perch'98 98	50302037000	US $20.74
19	19 59002035000 Spring for clutch lever 03 03	59002035000	US $5.46
20	20 60002031000 Clutch lever long cpl. 2003 2003	60002031000	US $68.24
21	21 50302038000 Lever Screw Cpl. 125-200 '98 '98	50302038000	US $20.35
23	23 60032063100 Clutch pipe lc8 adv '03 '03	60032063100	US $100.40
24	24 50302036200 Oil For Hyd. Clutch 100 Ml '03	50302036200	US $19.23
25	25 6020217900030 *handguards Closed Black '03	6020217900030	—
32	32 60011074100 Start-stop switch 03 03	60011074100	US $64.86
33	33 60011070000 Light switch a.d. 03 03	60011070000	US $143.50

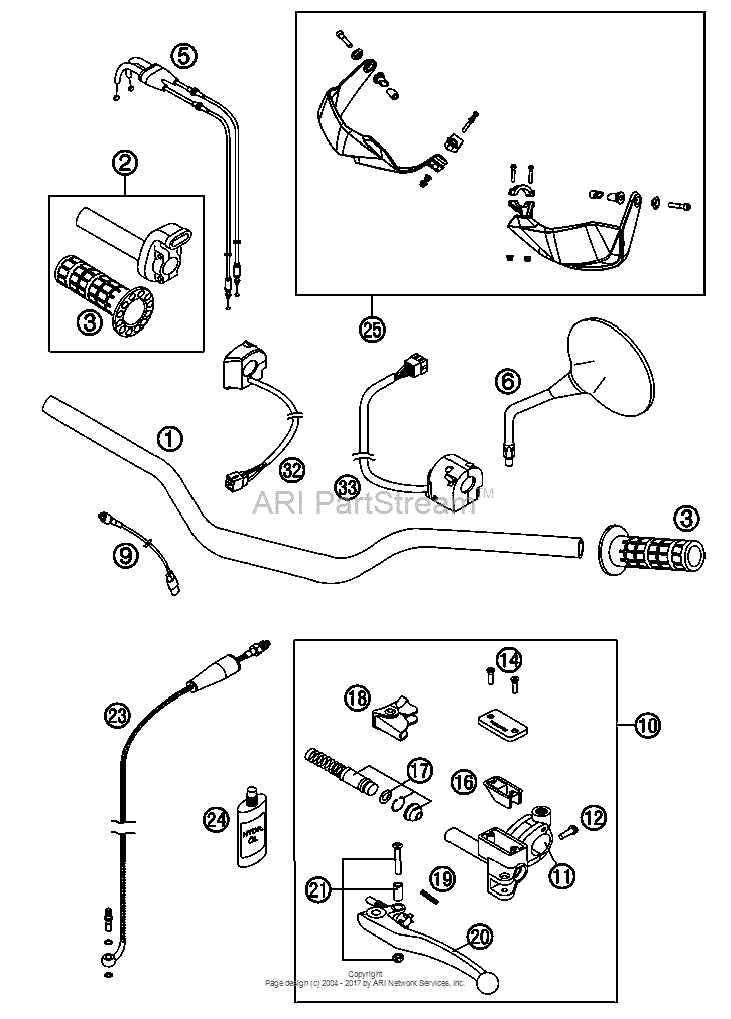

Handlebar, Instruments Diagram KTM 990 990 Adventure US/EU 18109380-940834

Handlebar, Instruments Diagram KTM 990 990 Adventure US/EU 18109380-940834
