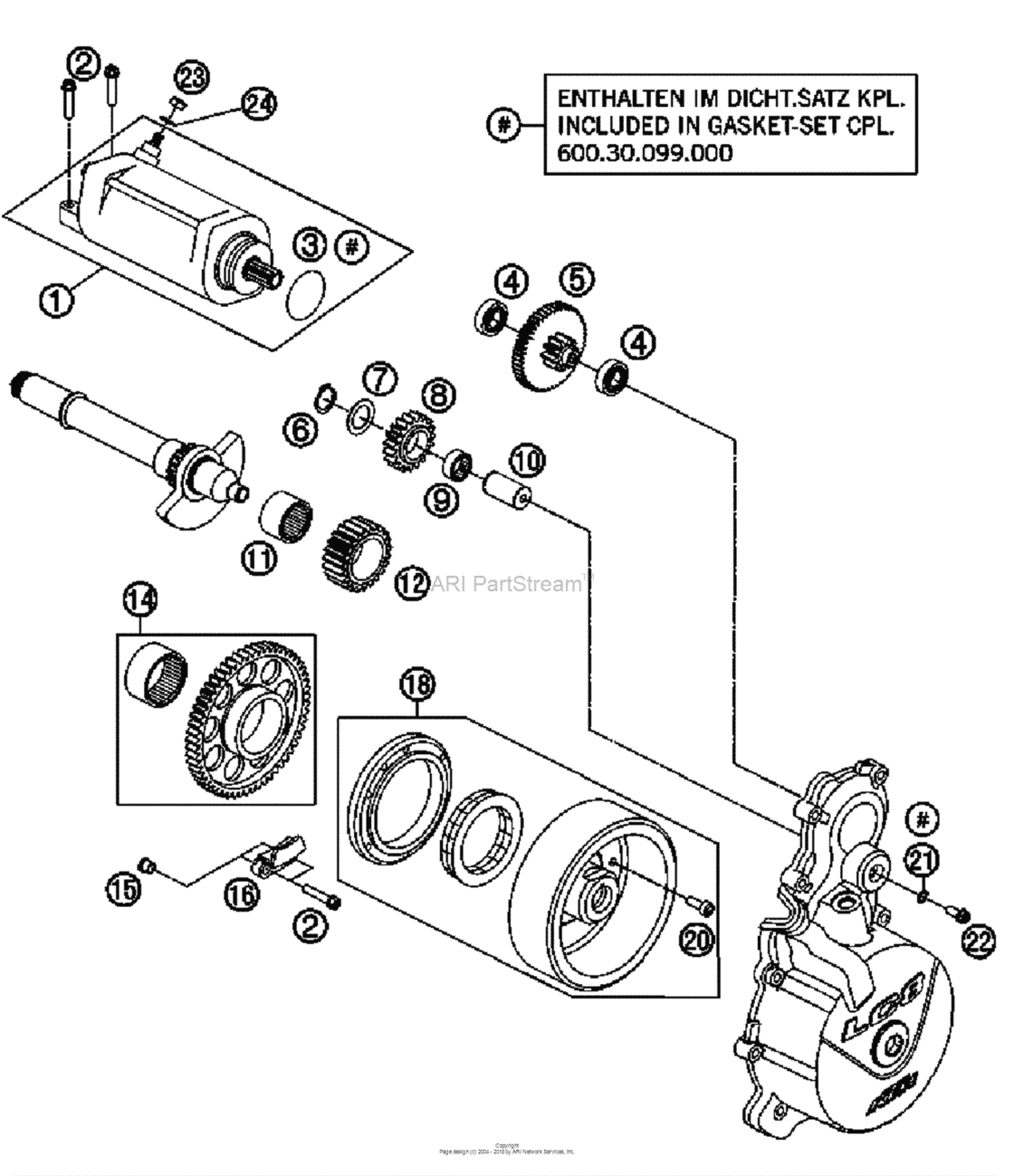

Electro Starter Diagram KTM 990 990 Adventure
- Year
- 2011
- Sales region
- US/EU
- Engine Capacity
- 990
- Model
- 990 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60040001000 E-starter engine cpl. lc8-e 0303 |
60040001000 |
US $456.06 |
||
|
2
|
2
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
3
|
3
0770335030 O-ring 33,5x3 vitonTX30 |
0770335030 |
US $5.63 |
||
|
4
|
4
0625160011 Groov.ball bear. 16001 jrx c3TX30 |
0625160011 |
US $12.43 |
||
|
5
|
5
60040017000 Torque limiterTX30 |
60040017000 |
US $163.80 |
||
|
6
|
6
0471170010 Circlip Din0471-17X1TX30 |
0471170010 |
US $1 |
||
|
7
|
7
50333041000 Stop disc 17,2x26x1 bTX30 |
50333041000 |
US $1.94 |
||
|
8
|
8
60040022219 Idler gear 1 19zTX30 |
60040022219 |
US $64.70 |
||
|
9
|
9
0405172110 Needle Bearing K 17X21X10TX30 |
0405172110 |
US $13.02 |
||
|
10
|
10
60040023100 Bearing boltTX30 |
60040023100 |
US $9.47 |
||
|
11
|
11
0618253220 Needle bush hk2520 25/32/20 0202 |
0618253220 |
US $9.35 |
||
|
12
|
12
60040022023 Idler gear 2 23-t 0303 |
60040022023 |
US $37.91 |
||
|
14
|
14
60040020000 Freewheel gear wh. 57-t cpl.0303 |
60040020000 |
US $228.11 |
||
|
15
|
15
60040027050 Supporting sleeve 0303 |
60040027050 |
US $6.41 |
||
|
16
|
16
60040027000 Freewheel holder 0303 |
60040027000 |
US $4.79 |
||
|
18
|
18
60039005100 Ignition rotor 0404 |
60039005100 |
US $800.22 |
||
|
20
|
20
0984060166 Ah screw din6912 m6x16 10.910.9 |
0984060166 |
US $5.17 |
||
|
21
|
21
0603061001 Cu-Seal Ring Din7603-6X10X110.9 |
0603061001 |
US $2.64 |
||
|
22
|
22
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
23
|
23
0985060003 Self Lock. Nut Din0985-M 6TX30 |
0985060003 |
US $2.60 |
||
|
24
|
24
0125060003 Washer Din0125-A 6,4TX30 |
0125060003 |
US $0.37 |
