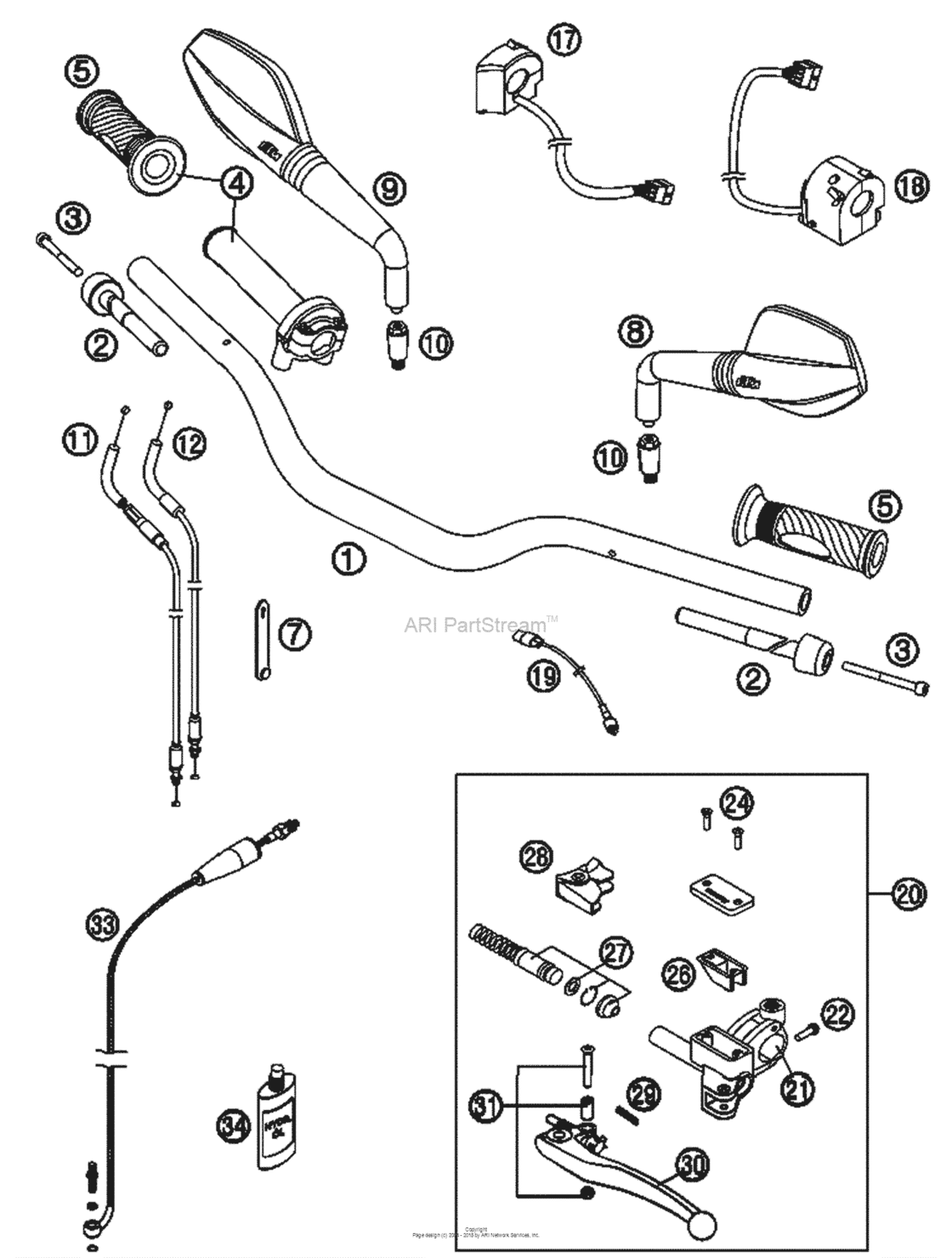

Handlebar, Controls Diagram KTM 990 990 SMR
- Year
- 2011
- Sales region
- US/EU
- Engine Capacity
- 990
- Model
- 990 SMR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62602001000 Handlebar 990 sm09 |
62602001000 |
US $195.31 |
||
|
2
|
2
61002004000 Vibrations absorber 0505 |
61002004000 |
US $35.72 |
||
|
3
|
3
0912060653 Ah Screw Din0912-M 6X6505 |
0912060653 |
US $1.84 |
||
|
4
|
4
61002010000 Throttle grip 0505 |
61002010000 |
US $70.47 |
||
|
5
|
5
61002021000 Gripp set05 |
61002021000 |
US $29.80 |
||
|
7
|
7
60011093045 Rubber cable tie 45mm 0303 AS REQUIRED |
60011093045 |
US $3.38 |
||
|
8
|
8
61112040000 Review mirror l/s 0707 |
61112040000 |
US $42.18 |
||
|
9
|
9
61112041000 Review mirror r/s 0707 |
61112041000 |
US $61.49 |
||
|
10
|
10
58412040050 Support for mirror lc4 '98'98 |
58412040050 |
US $18.41 |
||
|
11
|
11
62502091000
Throttle cable open 05
05 |
62502091000 |
— | ||
| replacement | |||||
|
11
|
11
62502091100 Throttle Cable Open05 |
62502091100 |
US $63.10 |
||
|
12
|
12
62502092000
Throttle cable close 05
05 |
62502092000 |
— | ||
| replacement | |||||
|
12
|
12
62502092100 Trottle Cable Close05 |
62502092100 |
US $60.20 |
||
|
17
|
17
58411074100 Start-stop switch ad lc4 0202 |
58411074100 |
US $68.12 |
||
|
18
|
18
61011070000 Light switch 0505 |
61011070000 |
US $95.03 |
||
|
19
|
19
58411049100 Clutch switch 0303 |
58411049100 |
US $54.57 |
||
|
20
|
20
60002130000 Master cylinder magura d=10.503 |
60002130000 |
US $368.10 |
||
| replacement | |||||
|
20
|
20
76502013000 Master Cylinder Magura D=11Mm03 |
76502013000 |
US $348.47 |
||
|
21
|
21
60002044000 Clamp mirror with clamp03 |
60002044000 |
US $50.83 |
||
|
22
|
22
0035100309S Ah-collar screw m10x30 isa4503 |
0035100309S |
US $5.34 |
||
|
24
|
24
0965040123 Flat head screw din0965-m 4x1203 |
0965040123 |
US $0.56 |
||
|
26
|
26
50302034000 Rubber for reservoir '98'98 |
50302034000 |
US $16.18 |
||
|
27
|
27
50302032000 Rep.set piston magura d=10.5'98 |
50302032000 |
US $116.60 |
||
|
28
|
28
50302037000 Protect.cap For Lever Perch'98'98 |
50302037000 |
US $20.74 |
||
|
29
|
29
59002035000 Spring for clutch lever 0303 |
59002035000 |
US $5.46 |
||
|
30
|
30
60002031000 Clutch lever long cpl. 20032003 |
60002031000 |
US $68.24 |
||
|
31
|
31
50302038000 Lever Screw Cpl. 125-200 '98'98 |
50302038000 |
US $20.35 |
||
|
33
|
33
60032063100 Clutch pipe lc8 adv '03'03 |
60032063100 |
US $100.40 |
||
|
34
|
34
50302036200 Oil For Hyd. Clutch 100 Ml'03 |
50302036200 |
US $19.23 |
||
