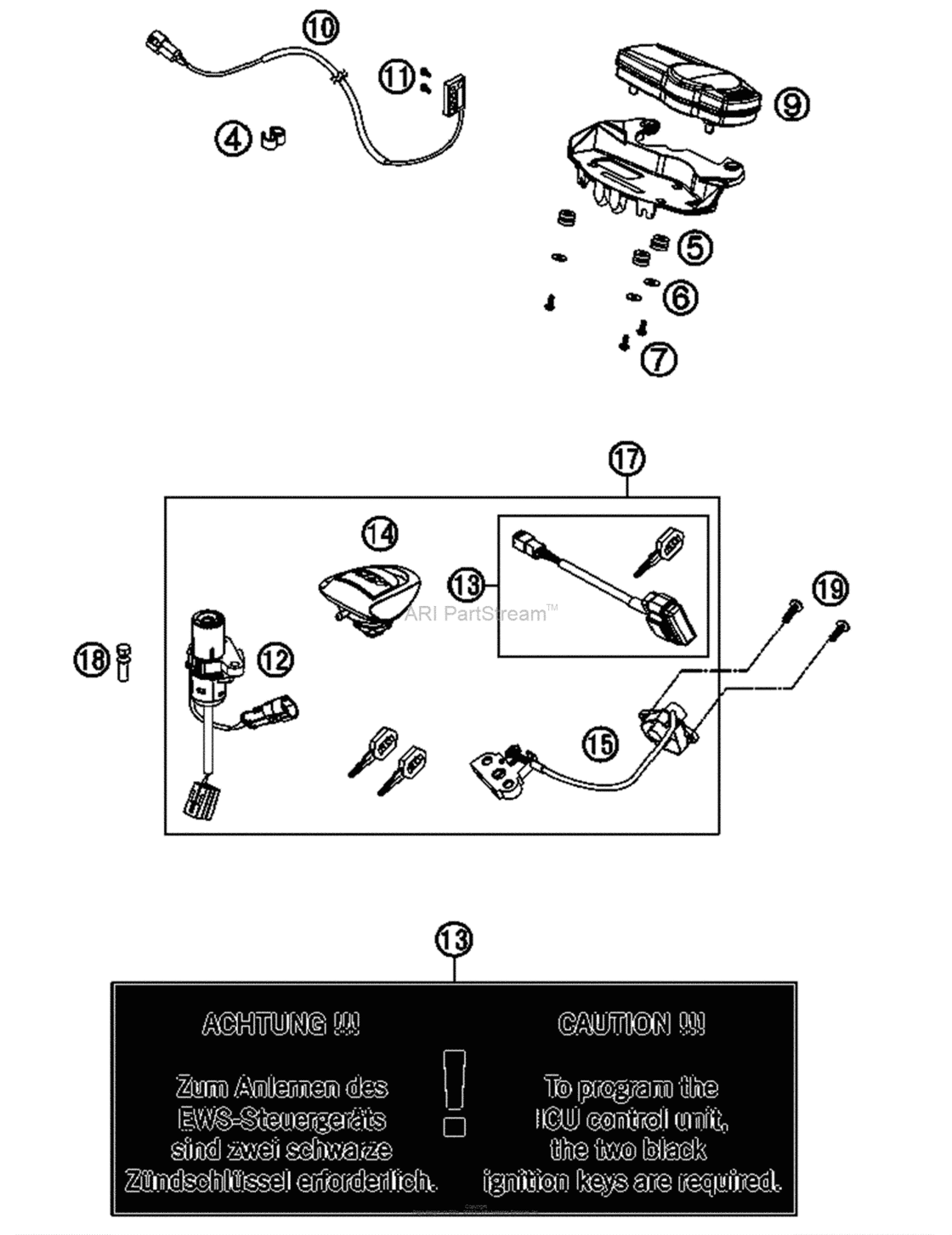

Instruments, Lock System Diagram KTM 990 990 SMR
- Year
- 2011
- Sales region
- US/EU
- Engine Capacity
- 990
- Model
- 990 SMR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4
|
4
60111094000 Clamp 5/7 mm 0606 |
60111094000 |
US $3.54 |
||
|
5
|
5
58214069051 Rubber Grommet 16X10,8X3 0206 |
58214069051 |
US $4.52 |
||
|
6
|
6
0021050003 Washer din9021-a 5,306 |
0021050003 |
US $1.29 |
||
|
7
|
7
0081050121 Screw for plastic k50x12 t2006 |
0081050121 |
US $1.19 |
||
|
9
|
9
61114069300 Speedometer 1010 |
61114069300 |
US $467.60 |
||
|
10
|
10
62514068200 Speedometer Sensor 1010 |
62514068200 |
US $82.47 |
||
|
11
|
11
0084040083 Cyl.head screw din0084-m 4x8 a10 |
0084040083 |
US $0.27 |
||
|
12
|
12
62611066000 Ignition lock10 |
62611066000 |
US $376.64 |
||
|
13
|
13
62611021000
Immobilizer 990 sm 08
10 |
62611021000 |
— | ||
|
14
|
14
58407008300 Tank plug10 |
58407008300 |
US $229.35 |
||
|
15
|
15
62607050000 Seat lock10 |
62607050000 |
US $241.64 |
||
|
17
|
17
62611066044 Lock System 990Sm 0808 |
62611066044 |
US $674.65 |
||
|
18
|
18
60011064000 Tamperproof screw f. ign. lock08 |
60011064000 |
US $3.67 |
||
|
19
|
19
0081050181 Screw for plastic k50x18 t2008 |
0081050181 |
US $0.73 |
