Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 62614001000 Head light right tr. 08 08	62614001000	US $167.21
6	6 76514001050 Rubber cap for head light 08	76514001050	US $9.04
7	7 49011435100 Bulb 12V 5W (W2,1X9,5D) Phil 08	49011435100	US $3.81
8	8 57111038000 Bulb h4 12v 60/55w (p43t) 08	57111038000	US $44.46
9	9 49011435200 Bulb red wr5w 12v 08	49011435200	US $6.83
12	12 0025050126 Hh collar screw m5x12 tx30 TX30	0025050126	US $3.38
20	20 60114025000 Flasher cpl.front l/s rear r/s TX30	60114025000	US $31.06
21	21 60114026000 Flasher cpl.front r/s rear l/s TX30	60114026000	US $37.94
22	22 60114027000 Bulb 12v orange (ry10w) TX30	60114027000	US $5.90
23	23 0433100003 Washer 18x10,5x1,6 TX30	0433100003	US $1.29
24	24 58414030000 Hh collar nut m10x1,25 ws=13 WS=13	58414030000	US $2.60
25	25 0797100003 Lock washer din6797-j10,5 zi WS=13	0797100003	US $0.65
26	26 60114028000 Flasher lens l/s r/s transp.06 WS=13	60114028000	US $4.13
30	30 58614040044 Rear light cpl. red 05 05	58614040044	US $80.84
31	31 62614040050 Metamoll for head light 08 08	62614040050	US $5.93
32	32 60014048100 Bulb red pr21w 12v 08	60014048100	US $9.20
33	33 0985060003 Self Lock. Nut Din0985-M 6 08	0985060003	US $2.60
34	34 0021060003 Washer Din9021-A 6,4 08	0021060003	US $3.26
35	35 58214069051 Rubber Grommet 16X10,8X3 02 02	58214069051	US $4.52
39	39 62611076000 Wiring harness rear 08 08	62611076000	US $22.37
40	40 58414047000 License-plate illumination '98 '98	58414047000	US $13.69
41	41 0021050003 Washer din9021-a 5,3 '98	0021050003	US $1.29
42	42 0985050003 Self Locking Nut Din0985-M 5 5	0985050003	US $3.26
76	76 58611176100 Cable harness rear part 07 07	58611176100	US $26.78

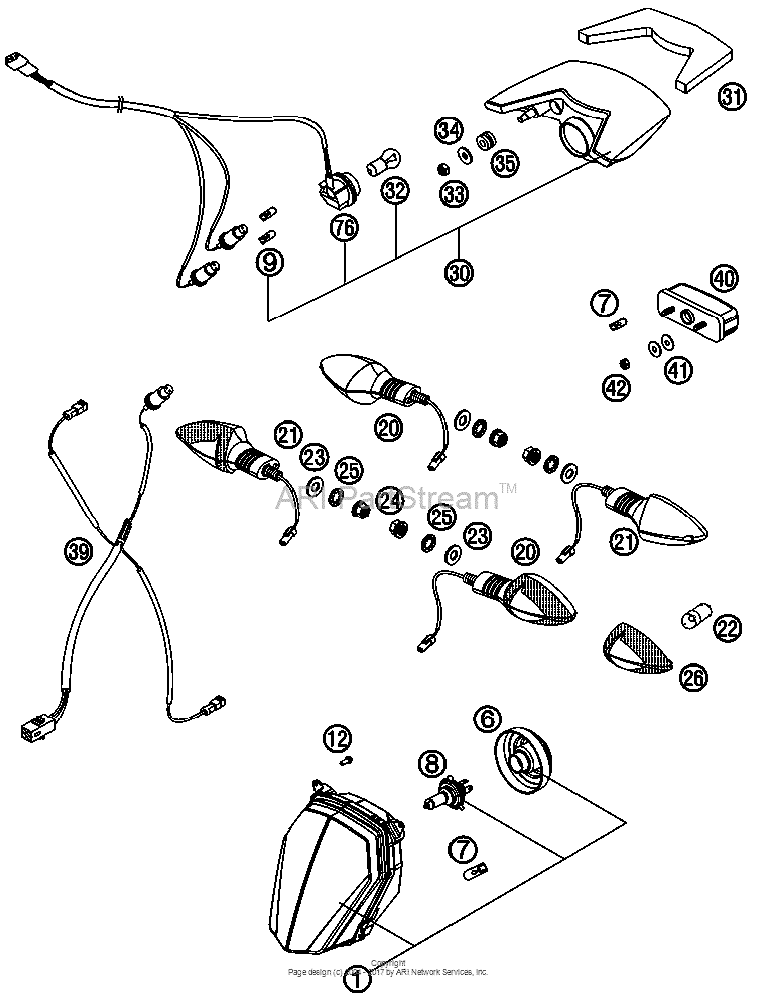

Lightning System Diagram KTM 990 990 SMR US/EU 18109871-940854

Lightning System Diagram KTM 990 990 SMR US/EU 18109871-940854
