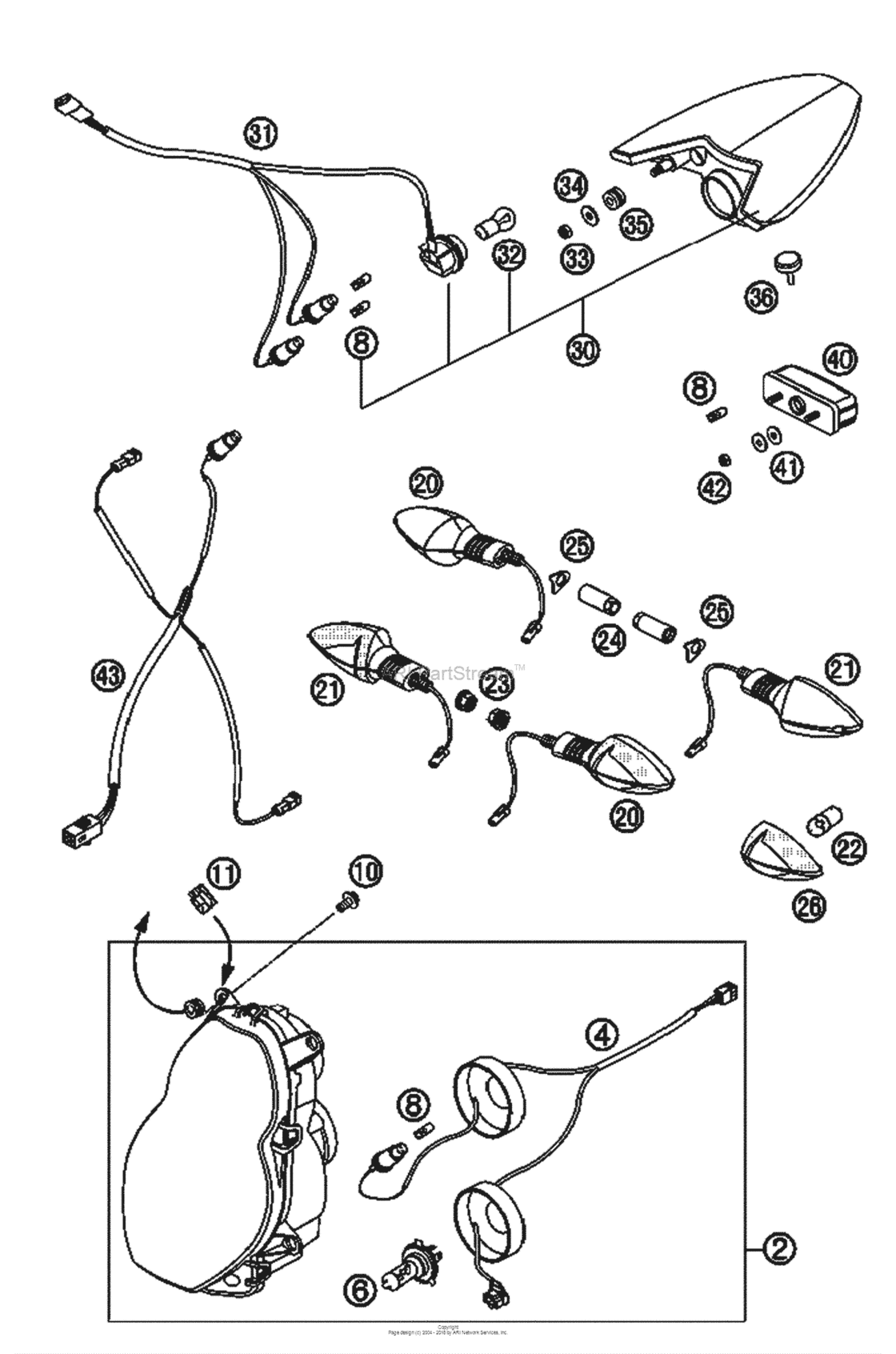

Lighting System Diagram KTM 990 990 Super Duke
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 990
- Model
- 990 Super Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
60014801100
Head Light Usa
07 |
60014801100 |
— | ||
| replacement | |||||
|
2
|
2
60014801000 Head light right tr. usa 0307 |
60014801000 |
US $266.32 |
||
|
4
|
4
60014801050 Head light wiring harn. usa07 |
60014801050 |
US $36.11 |
||
|
6
|
6
57111038000 Bulb h4 12v 60/55w (p43t)P43T |
57111038000 |
US $44.46 |
||
|
8
|
8
49011435100 Bulb 12V 5W (W2,1X9,5D) PhilW2,1X9,5D |
49011435100 |
US $3.81 |
||
|
10
|
10
0014060133
Hh collar screw m 6x13 ws=8
WS=8 |
0014060133 |
— | ||
| replacement | |||||
|
10
|
10
0024060136 Hh collar screw m6x13 tx30WS=8 |
0024060136 |
US $2.09 |
||
|
11
|
11
54603048300 Range change metal nut m6 inoxWS=8 |
54603048300 |
US $3.72 |
||
|
20
|
20
60114025000 Flasher cpl.front l/s rear r/sWS=8 |
60114025000 |
US $31.06 |
||
|
21
|
21
60114026000 Flasher cpl.front r/s rear l/sWS=8 |
60114026000 |
US $37.94 |
||
|
22
|
22
60114027000 Bulb 12v orange (ry10w)RY10W |
60114027000 |
US $5.90 |
||
|
23
|
23
58414030000 Hh collar nut m10x1,25 ws=13WS=13 |
58414030000 |
US $2.60 |
||
|
24
|
24
61014030000 Flasher nut m10x1,25 ws=12WS=12 |
61014030000 |
US $8.06 |
||
|
25
|
25
61014031000 Flasher washer 0505 |
61014031000 |
US $3.59 |
||
|
26
|
26
60114028000 Flasher lens l/s r/s transp.0606 |
60114028000 |
US $4.13 |
||
|
30
|
30
61014040000 Rear light duke 0505 |
61014040000 |
US $103.58 |
||
|
31
|
31
58611076100 Cable harness rear part 0505 |
58611076100 |
US $27.52 |
||
|
32
|
32
60014048000 Bulb 12v 21w05 |
60014048000 |
US $4.56 |
||
|
33
|
33
0985060003 Self Lock. Nut Din0985-M 605 |
0985060003 |
US $2.60 |
||
|
34
|
34
0021060003 Washer Din9021-A 6,405 |
0021060003 |
US $3.26 |
||
|
35
|
35
58214069051 Rubber Grommet 16X10,8X3 0202 |
58214069051 |
US $4.52 |
||
|
36
|
36
60006001021 Distance rubber airbox 0303 |
60006001021 |
US $1.04 |
||
|
40
|
40
58414047000 License-plate illumination '98'98 |
58414047000 |
US $13.69 |
||
|
41
|
41
0021050003 Washer din9021-a 5,3'98 |
0021050003 |
US $1.29 |
||
|
42
|
42
0985050003 Self Locking Nut Din0985-M 5'98 |
0985050003 |
US $3.26 |
||
|
43
|
43
61111076000 Wiring harness rear 0707 |
61111076000 |
US $21.64 |
||
