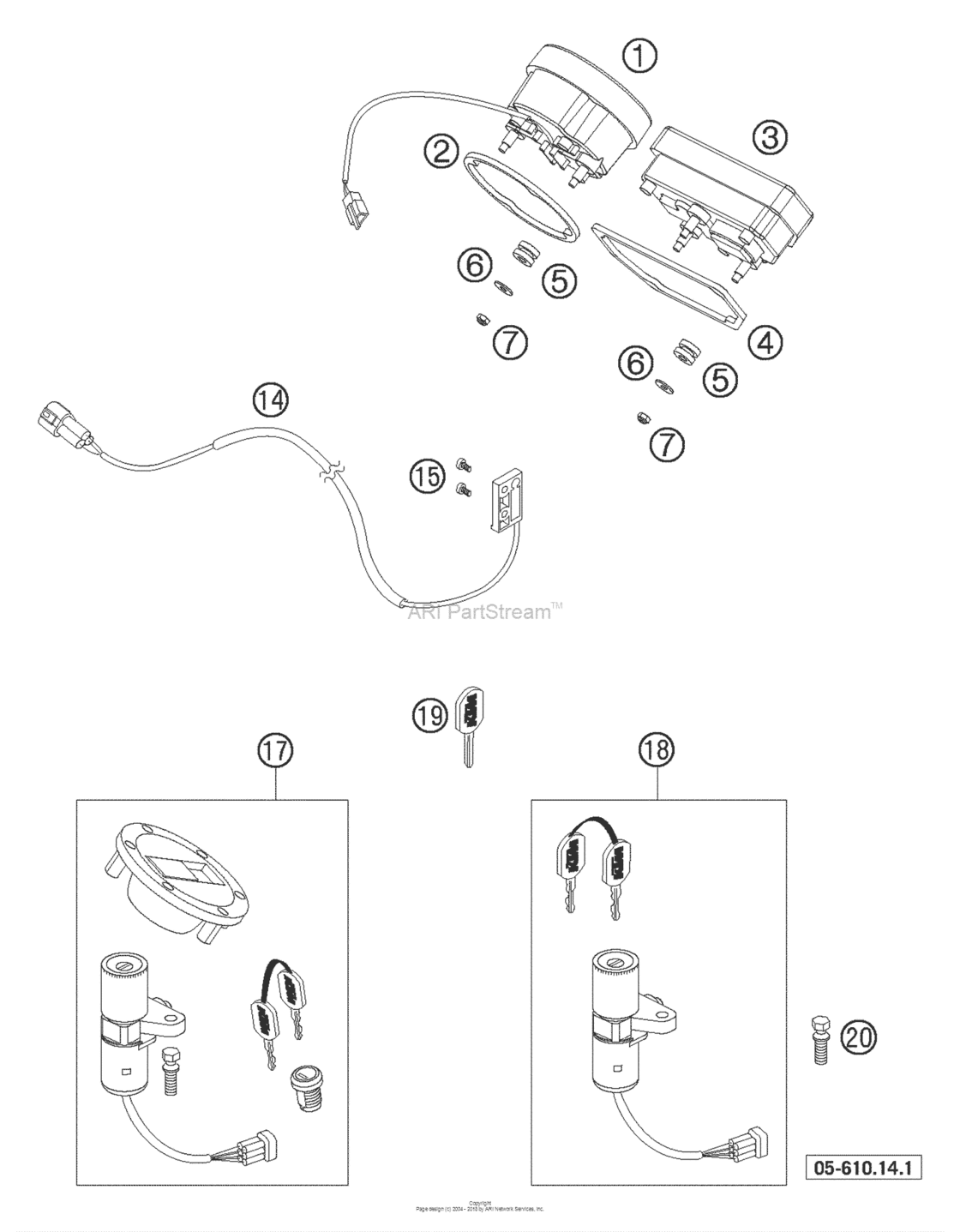

Instruments, Lock System Diagram KTM 990 990 Super Duke
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 990
- Model
- 990 Super Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60014075000 Rev counter lc8 03TIRE - PIRELLI |
60014075000 |
US $333.69 |
||
|
2
|
2
60014068100 Damping ring speedometer 03TIRE - PIRELLI |
60014068100 |
US $7.29 |
||
|
3
|
3
61014069000
Digital speedometer 05
TIRE - PIRELLI |
61014069000 |
— | ||
|
4
|
4
60014068000 Damping ring tachometer 03TIRE - PIRELLI |
60014068000 |
US $5.92 |
||
|
5
|
5
58214069051 Rubber Grommet 16X10,8X3 02TIRE - PIRELLI |
58214069051 |
US $4.52 |
||
|
6
|
6
0021050003 Washer din9021-a 5,3TIRE - PIRELLI |
0021050003 |
US $1.29 |
||
|
7
|
7
0985050003 Self Locking Nut Din0985-M 5TIRE - PIRELLI |
0985050003 |
US $3.26 |
||
|
14
|
14
61014069050 Speedometer sensor 05TIRE - PIRELLI |
61014069050 |
US $83.91 |
||
|
15
|
15
0084040083 Cyl.head screw din0084-m 4x8 aTIRE - PIRELLI |
0084040083 |
US $0.27 |
||
|
17
|
17
61011066044
Lock System 990 Duke
TIRE - PIRELLI |
61011066044 |
— | ||
| replacement | |||||
|
17
|
17
61011166044 Lock system 990 sd usaTIRE - PIRELLI |
61011166044 |
US $328.27 |
||
|
18
|
18
60011066000
Ignition lock lc8 adv. 03
TIRE - PIRELLI |
60011066000 |
— | ||
|
19
|
19
40011166100 Key blank lc4/duke/lc8TIRE - PIRELLI |
40011166100 |
US $17.60 |
||
| replacement | |||||
|
19
|
19
76911067010 Key Blank Lc4/Duke/Lc8TIRE - PIRELLI |
76911067010 |
US $16.61 |
||
|
20
|
20
60011064000 Tamperproof screw f. ign. lockTIRE - PIRELLI |
60011064000 |
US $3.67 |
||
