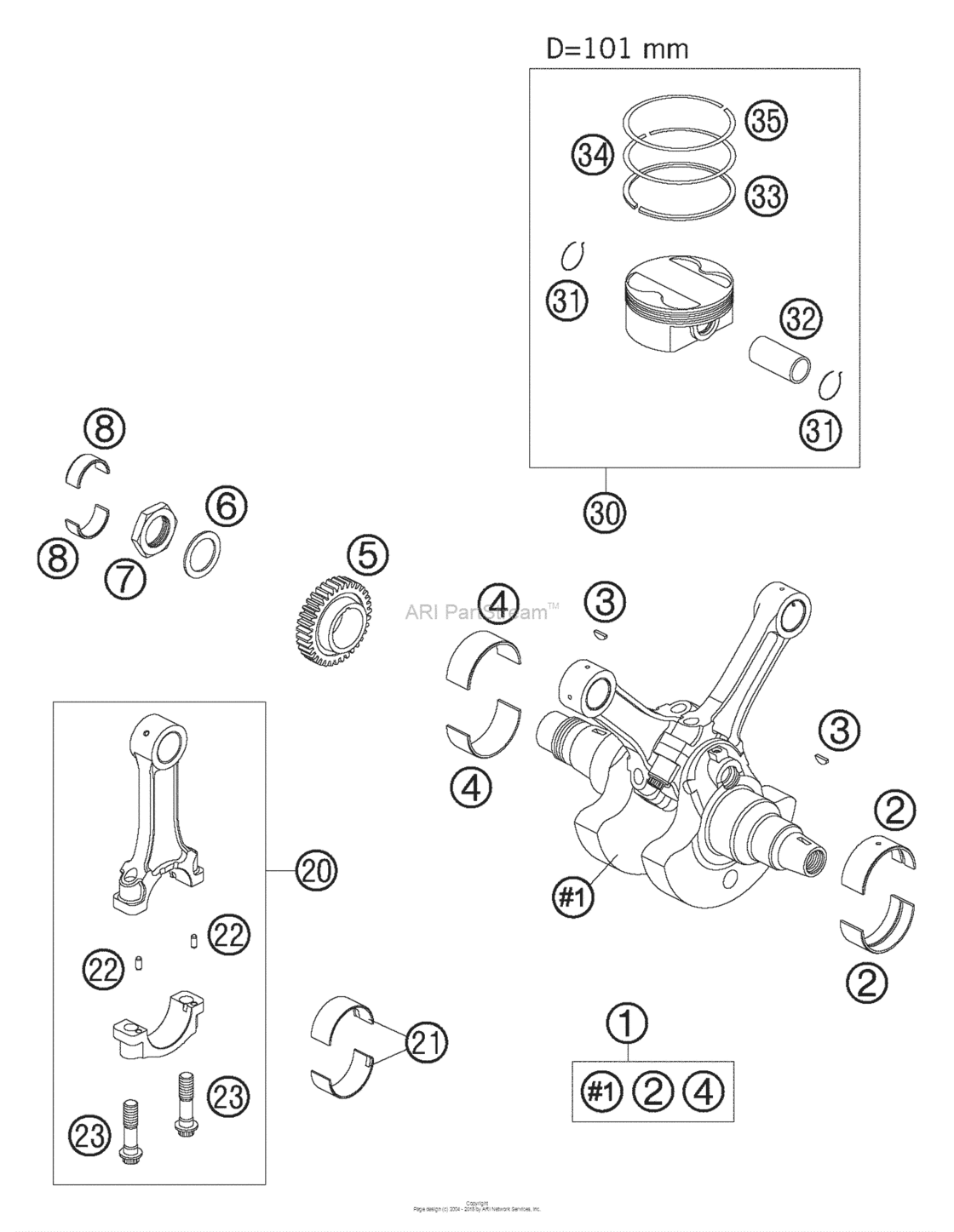

Crankshaft, Piston Diagram KTM 990 990 Super Duke
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 990
- Model
- 990 Super Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61030018000
Crankshaft Kpl. Lc8 Duke 05
05 |
61030018000 |
— | ||
|
2
|
2
600300820001
Split bear.bush size 1 red 03
05 |
600300820001 |
— | ||
|
2
|
2
600300820002
Split bear.bush size 2 blue 03
05 |
600300820002 |
— | ||
|
2
|
2
600300820003
Split bear.bush size 3 yell.03
05 |
600300820003 |
— | ||
|
3
|
3
0888040050 Woodruff key din6888 4x5x1305 |
0888040050 |
US $3.43 |
||
|
4
|
4
600301820001
Split bear.bush size 1 red 03
05 |
600301820001 |
— | ||
|
4
|
4
600301820002
Split bear.bush size 2 blue 03
05 |
600301820002 |
— | ||
|
4
|
4
600301820003
Split bear.bush size 3 yell.03
05 |
600301820003 |
— | ||
|
5
|
5
60032023035
Primary pinion 35 t 03
05 |
60032023035 |
— | ||
|
6
|
6
60032009040 Washer 33,2x46x2 0305 |
60032009040 |
US $2.50 |
||
|
7
|
7
60032009050 Hh-nut m33x1,5 l/s ws46 0305 |
60032009050 |
US $14.91 |
||
|
8
|
8
60030026010 Bushing bowl 28x32x13 0305 |
60030026010 |
US $15.35 |
||
|
20
|
20
60030013144
Connecting Rod Cpl
05 |
60030013144 |
— | ||
| replacement | |||||
|
20
|
20
60030013244 Connecting rod cpl. 0605 |
60030013244 |
US $214.39 |
||
|
21
|
21
60030013051 Bush.bowl pack. size 1 red 0305 |
60030013051 |
US $56.37 |
||
|
21
|
21
60030013052 Bush.bowl pack. size 2 blue 0305 |
60030013052 |
US $62.63 |
||
|
21
|
21
60030013053 Bush.bowl pack. size 3 yell.0305 |
60030013053 |
US $57.22 |
||
|
22
|
22
60030015061 Cylinder pin 0305 |
60030015061 |
US $1.60 |
||
|
23
|
23
60030015160
Connecting-Rod Bolt Mj10X1 06
05 |
60030015160 |
— | ||
| replacement | |||||
|
23
|
23
60030015260 Connecting-rod bolt mj10x1 0605 |
60030015260 |
US $18.26 |
||
|
30
|
30
61030007000I
Piston d=101 05
05 |
61030007000I |
— | ||
|
30
|
30
61030007000II
Piston d=101 05
05 |
61030007000II |
— | ||
|
31
|
31
60030074000
Circlip 22 X 1,6
05 |
60030074000 |
— | ||
| replacement | |||||
|
31
|
31
58430074000 Circlip 22 x 1,605 |
58430074000 |
US $9.45 |
||
|
32
|
32
75030033000 Piston pin eb 22/72 d22x5605 |
75030033000 |
US $27.05 |
||
|
33
|
33
61030032000 Oil scraper ring d=101mm05 |
61030032000 |
US $29.33 |
||
|
34
|
34
58330932100 Tap.compr.piston ring 101x1,2505 |
58330932100 |
US $33.47 |
||
|
35
|
35
61030030000 Piston ring "l" d=101 h=1,2505 |
61030030000 |
US $56.87 |
||
