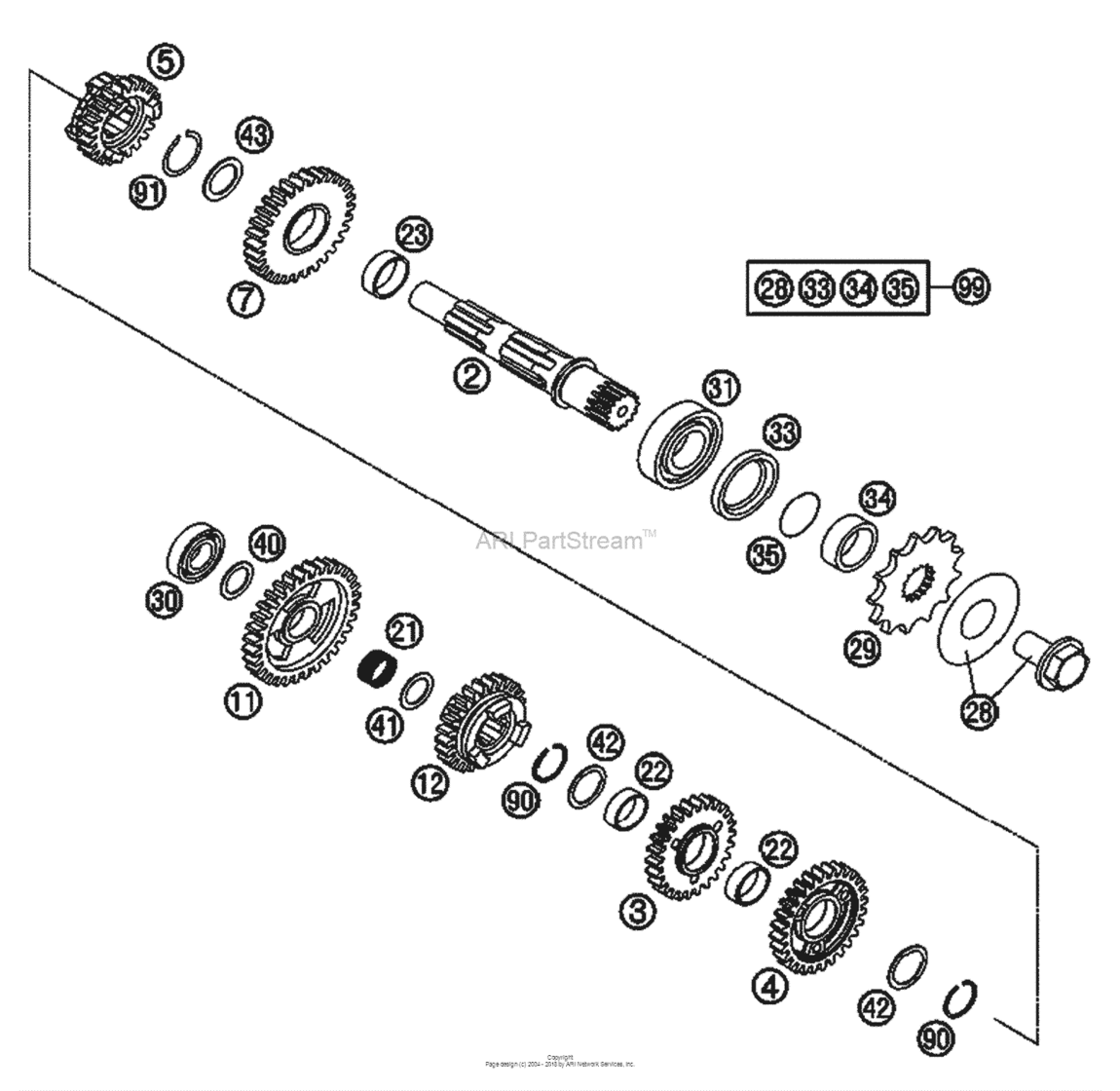

Transmission Ii - Countershaft Diagram KTM HUSABERG FE 250
- Year
- 2013
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- FE 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
77033010000 Counter shaft 0505 |
77033010000 |
US $92.40 |
||
|
3
|
3
77033114000 Idler g. 4th 6.28-t "4b28"05 |
77033114000 |
US $69.89 |
||
|
4
|
4
77033113000 Idler g. 3rd g.29-t "3b29"05 |
77033113000 |
US $75.04 |
||
|
5
|
5
77033116100 Sliding g. 6th 6.22-t "6b26"05 |
77033116100 |
US $82.35 |
||
|
7
|
7
77033112000 Idler g. 2nd 6. 33-t "2b33"05 |
77033112000 |
US $71.28 |
||
|
11
|
11
77033111000 Idler g. 1st g. 33-t "1b33"05 |
77033111000 |
US $59.31 |
||
|
12
|
12
77033115100 Sliding g. 5th g .23-t "5b23"05 |
77033115100 |
US $69.17 |
||
|
21
|
21
50033098000 Needle Bearing K20X24X1005 |
50033098000 |
US $12.89 |
||
|
22
|
22
0405222611 Needle bear.k 22x26x10 divided05 |
0405222611 |
US $12.41 |
||
|
23
|
23
50333023000 Idler gear bushing 25x28x9,7 d05 |
50333023000 |
US $28.97 |
||
|
28
|
28
59033034044 Screw 10.9+Spring Washer05 |
59033034044 |
US $9.01 |
||
|
29
|
29
50033029013
Sprocket 13T
As Required |
50033029013 |
— | ||
| replacement | |||||
|
29
|
29
79233029013 Sprocket 13TAs Required |
79233029013 |
US $33.08 |
||
|
29
|
29
50033029014
Front sprocket 14-t
As Required |
50033029014 |
— | ||
| replacement | |||||
|
29
|
29
79233029014 Sprocket 14TAs Required |
79233029014 |
US $34.80 |
||
|
29
|
29
50033029015 Front sprocket 15-tAs Required |
50033029015 |
US $33.59 |
||
|
30
|
30
0625060031 Ball Bearing 6003 Tn9 C4As Required |
0625060031 |
US $23.63 |
||
|
31
|
31
0625062054 Ball Bearing 6205 C3 NtnAs Required |
0625062054 |
US $18.41 |
||
|
33
|
33
0760324571 Shaft seal ring 32x45x7 bslnbrAs Required |
0760324571 |
US $6.61 |
||
|
34
|
34
54633014100
Spacer bushing 12mm
As Required |
54633014100 |
— | ||
| replacement | |||||
|
34
|
34
76633030012 Spacer bushing 12mmAs Required |
76633030012 |
US $15.16 |
||
|
35
|
35
0770020220 O-ring 25,12x1,78 nbr70As Required |
0770020220 |
US $3.89 |
||
|
40
|
40
56033030000 Stop Disc 17,2X30X1As Required |
56033030000 |
US $3.83 |
||
|
41
|
41
59033080000 Shim 20X32X1As Required |
59033080000 |
US $1.73 |
||
|
42
|
42
50333043000 Stop disc 25,2x32x1As Required |
50333043000 |
US $4.86 |
||
|
43
|
43
0988253510 Thrust wash. din0988-25x35x1,0As Required |
0988253510 |
US $1.36 |
||
|
90
|
90
77033022000 Axial-circlip 25x1,65As Required |
77033022000 |
US $3.11 |
||
|
91
|
91
0471250120 Circlip Din0471-25X1,2As Required |
0471250120 |
US $1.31 |
||
|
99
|
99
00050000941 Counter Shaft Rep.kit 4 StrokeAs Required |
00050000941 |
US $36.26 |
||
