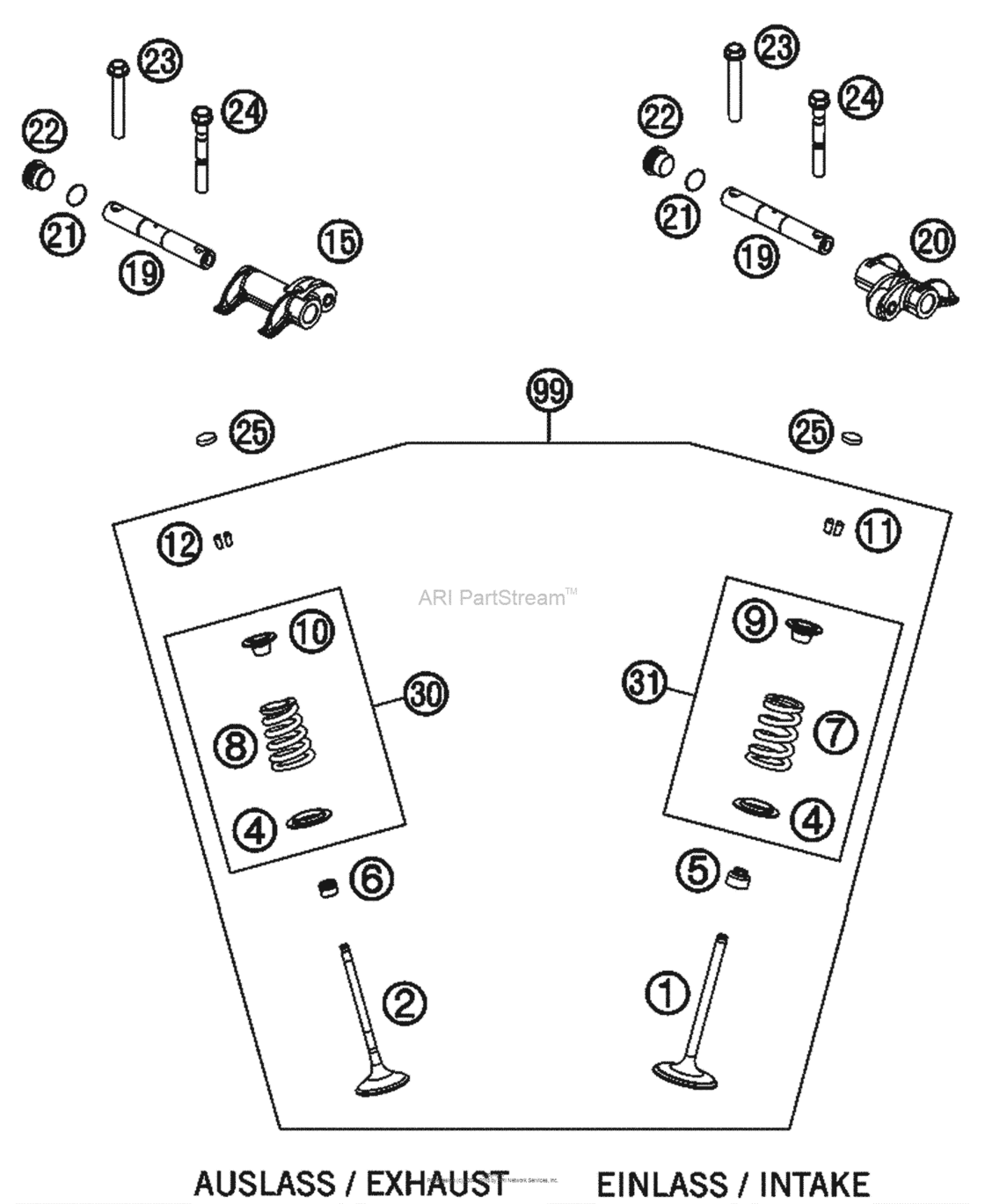

Valve Drive Diagram KTM HUSABERG FE 501
- Year
- 2013
- Sales region
- US/EU
- Engine Capacity
- 501
- Model
- FE 501
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78036030000 Intake valveAs Required |
78036030000 |
US $177.09 |
||
|
2
|
2
78036031000 Exhaust valveAs Required |
78036031000 |
US $79 |
||
|
4
|
4
78036136000 Valve spring holder exhaustAs Required |
78036136000 |
US $4.18 |
||
|
5
|
5
59036027000 Valve-stem sealing racingAs Required |
59036027000 |
US $7.70 |
||
|
6
|
6
77036027000 Valve-stem sealing 0505 |
77036027000 |
US $8.16 |
||
|
7
|
7
78036028000 Valve spring intake05 |
78036028000 |
US $7.21 |
||
|
8
|
8
78036029000 Valve spring exhaust05 |
78036029000 |
US $11.85 |
||
|
9
|
9
78036132200 Valve spring retainer intake05 |
78036132200 |
US $9.74 |
||
|
10
|
10
78036032200 Valve spring retainer exhaust05 |
78036032200 |
US $8.86 |
||
|
11
|
11
78036033000 Valve collet lk 6h05 |
78036033000 |
US $2.84 |
||
|
12
|
12
77036033000 Valve collet 0505 |
77036033000 |
US $7.89 |
||
|
15
|
15
78036061044 Rocker arm exhaust cpl.05 |
78036061044 |
US $107.80 |
||
|
19
|
19
78036056200 Rocker Arm Shaft05 |
78036056200 |
US $23.17 |
||
|
20
|
20
78036060044 Rocker arm intake cpl.05 |
78036060044 |
US $107.80 |
||
|
21
|
21
0770110015 O-ring 1,5x11 silicon05 |
0770110015 |
US $4.81 |
||
|
22
|
22
78036081000 Holding bolt m14x1,505 |
78036081000 |
US $8.25 |
||
|
23
|
23
77036080000 Special screw m7x40 ws1005 |
77036080000 |
US $4.39 |
||
|
24
|
24
78036080000 Fit bolt m7x1x5505 |
78036080000 |
US $5.49 |
||
|
25
|
25
60036035200 Shim d=10/2,00 03As Required, 03 |
60036035200 |
US $4.91 |
||
|
25
|
25
60036035205 Shim d=10/2,05 03As Required, 03 |
60036035205 |
US $4.91 |
||
|
25
|
25
60036035210 Shim d=10/2,10 03As Required, 03 |
60036035210 |
US $4.91 |
||
|
25
|
25
60036035215 Shim d=10/2,15 03As Required, 03 |
60036035215 |
US $4.91 |
||
|
25
|
25
60036035220 Shim d=10/2,20 03As Required, 03 |
60036035220 |
US $4.91 |
||
|
25
|
25
60036035225 Shim d=10/2,25 03As Required, 03 |
60036035225 |
US $4.91 |
||
|
25
|
25
60036035230 Shim d=10/2,30 03As Required, 03 |
60036035230 |
US $5.47 |
||
|
25
|
25
60036035235 Shim d=10/2,35 03As Required, 03 |
60036035235 |
US $5.46 |
||
|
25
|
25
60036035240 Shim d=10/2,40 03As Required, 03 |
60036035240 |
US $5.47 |
||
|
25
|
25
60036035245 Shim d=10/2,45 03As Required, 03 |
60036035245 |
US $4.91 |
||
|
25
|
25
60036035250 Shim d=10/2,50 03As Required, 03 |
60036035250 |
US $7.09 |
||
|
25
|
25
60036035255 Shim d=10/2,55 03As Required, 03 |
60036035255 |
US $8.43 |
||
|
25
|
25
60036035260 Shim d=10/2,60 03As Required, 03 |
60036035260 |
US $4.91 |
||
|
25
|
25
60036035310 Shim d=10/3,10 03As Required, 03 |
60036035310 |
US $4.91 |
||
|
25
|
25
60036035315 Shim d=10/3,15 03As Required, 03 |
60036035315 |
US $4.91 |
||
|
25
|
25
60036035320 Shim d=10/3,20 03As Required, 03 |
60036035320 |
US $4.91 |
||
|
25
|
25
60036035330 Shim d=10/3,3As Required, 03 |
60036035330 |
US $6.70 |
||
|
25
|
25
60036035265 Shim d=10/2,65 03As Required, 03 |
60036035265 |
US $4.91 |
||
|
25
|
25
60036035270 Shim d=10/2,70 03As Required, 03 |
60036035270 |
US $4.91 |
||
|
25
|
25
60036035275 Shim d=10/2,75 03As Required, 03 |
60036035275 |
US $4.91 |
||
|
25
|
25
60036035280 Shim d=10/2,80 03As Required, 03 |
60036035280 |
US $4.91 |
||
|
25
|
25
60036035285 Shim d=10/2,85 03As Required, 03 |
60036035285 |
US $4.91 |
||
|
25
|
25
60036035290 Shim d=10/2,90 03As Required, 03 |
60036035290 |
US $4.91 |
||
|
25
|
25
60036035295 Shim d=10/2,95 03As Required, 03 |
60036035295 |
US $4.91 |
||
|
25
|
25
60036035300 Shim d=10/3,00 03As Required, 03 |
60036035300 |
US $7.09 |
||
|
25
|
25
60036035305 Shim d=10/3,05 03As Required, 03 |
60036035305 |
US $4.91 |
||
|
30
|
30
78036029144 Valve spr.-kit ex. 450-503 0909 |
78036029144 |
US $33.73 |
||
|
31
|
31
78036028144 Valve spr.-kit int. 450-530 0909 |
78036028144 |
US $29.38 |
||
|
99
|
99
78036030010 Valve kitAs Required, 08-12 |
78036030010 |
US $556.07 |
