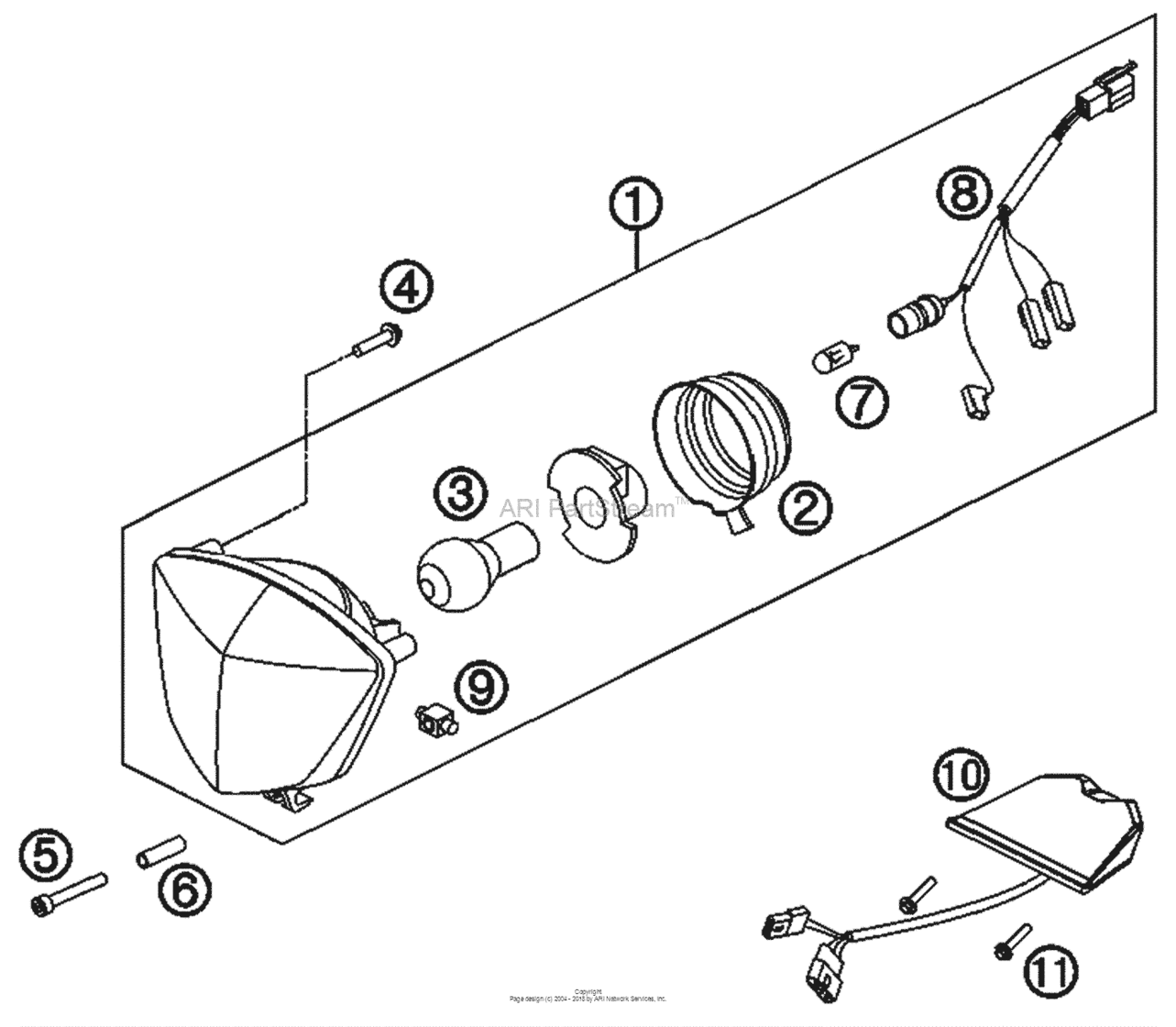

Lighting System Diagram KTM HUSABERG TE 250
- Year
- 2013
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- TE 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81214001000 Head light06 |
81214001000 |
US $134.76 |
||
|
2
|
2
54814001050 Rubber cap for head light 0505 |
54814001050 |
US $12.41 |
||
|
3
|
3
44111038000 Bilux-bulb 12v 35/35w ba20d05 |
44111038000 |
US $16.30 |
||
|
4
|
4
0081050181 Screw for plastic k50x18 t2005 |
0081050181 |
US $0.73 |
||
|
5
|
5
0912050353 Ah screw din912 m5x3505 |
0912050353 |
US $1.17 |
||
|
6
|
6
81208008000
Dist. hose f. head light mask
05 |
81208008000 |
— | ||
|
7
|
7
49011435100 Bulb 12V 5W (W2,1X9,5D) Phil05 |
49011435100 |
US $3.81 |
||
|
8
|
8
54811001050 Cable for head light 20052005 |
54811001050 |
US $12.22 |
||
|
9
|
9
81208003010 Insert for head light support2005 |
81208003010 |
US $2.50 |
||
|
10
|
10
76514040000 Rear light2005 |
76514040000 |
US $114.39 |
||
|
11
|
11
0017060253
Ejot pt screw k60x25-z sw=6
2005 |
0017060253 |
— | ||
| replacement | |||||
|
11
|
11
0017060255 Ejot Pt Screw K60X25-Z Sw62005 |
0017060255 |
US $4.22 |
||
