Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 90230000044 ENGINE CASE CPL. As Required	90230000044	—
	replacement
1	1 90230000144 ENGINE CASE CPL. As Required	90230000144	—
2	2 90130022000 Ventilation Connector As Required	90130022000	US $3.25
3	3 90238029005 Jet Evac As Required	90238029005	US $0.65
4	4 J011080203S Flanged Bolt M8X20 As Required	J011080203S	US $0.65
5	5 J472025120 Circlip 25X1,2 As Required	J472025120	US $0.75
6	6 J760122455 Shaft Sealing Ring 12X24X5,5 As Required	J760122455	US $7.68
7	7 90233010001 Deep Groove Ball Bearing As Required	90233010001	US $14.88
8	8 90234030000 Bush Shift Rail As Required	90234030000	US $1.63
9	9 J618131912 Needle Roller Bearing Hk1312 As Required	J618131912	US $4.32
10	10 J625063040 Deep Groove Ball Bearing 6304 As Required	J625063040	US $12.87
11	11 90230079000 Stopper Balancer Shaft Bearing As Required	90230079000	US $0.66
12	12 90130078001 Flanged Bolt 6X12 As Required	90130078001	US $0.82
13	13 90130004004 Ball Bearing 25X42X9 As Required	90130004004	US $12.77
14	14 J625063220 Deep Groove Ball Bearing 63/22 As Required	J625063220	US $23.14
15	15 J625062022 Ball Bearing 6202 As Required	J625062022	US $8.36
16	16 90238014000 Oil Pipe As Required	90238014000	US $7.09
17	17 90230066100 Oil Nozzle As Required	90230066100	US $0.77
18	18 90130195000 Shaft Seal Ring As Required	90130195000	US $2.31
19	19 J472037150 Circlip 37X1,5 As Required	J472037150	US $0.66
20	20 90130003004 Seal Ring 13X22X5,5 As Required	90130003004	US $1.14
21	21 90130003007 Dowel D14 As Required	90130003007	US $1.22
22	22 90211023000 Gear-Pos.sensor Inc.puls. Coil As Required	90211023000	US $72.11
23	23 J011050133 Hh Collar Screw M5X13 Sw8 As Required	J011050133	US $0.58
24	24 J025050163S Hh Collar Screw M5X16 Sw8 As Required	J025050163S	—
	replacement
24	24 J025050166 Hh Collar Screw M5X16 Sw8 As Required	J025050166	US $0.58
25	25 90230060000 Bracket As Required	90230060000	US $0.90
26	26 90230042000 Bracket As Required	90230042000	US $0.65
27	27 90230047000 Chain Guard As Required	90230047000	US $5.22
28	28 J005060123 Flat Head Screw M6X12 Ph As Required	J005060123	US $0.58
29	29 J025060350 Flanged Bolt M6X35 Ws8 As Required	J025060350	US $0.58
30	30 J028060753S Flanged Bolt M6X75 As Required	J028060753S	US $1.21
31	31 90230066000 Oil Nozzle As Required	90230066000	US $2.01
32	32 90238029002 Oil Nozzle As Required	90238029002	US $0.65

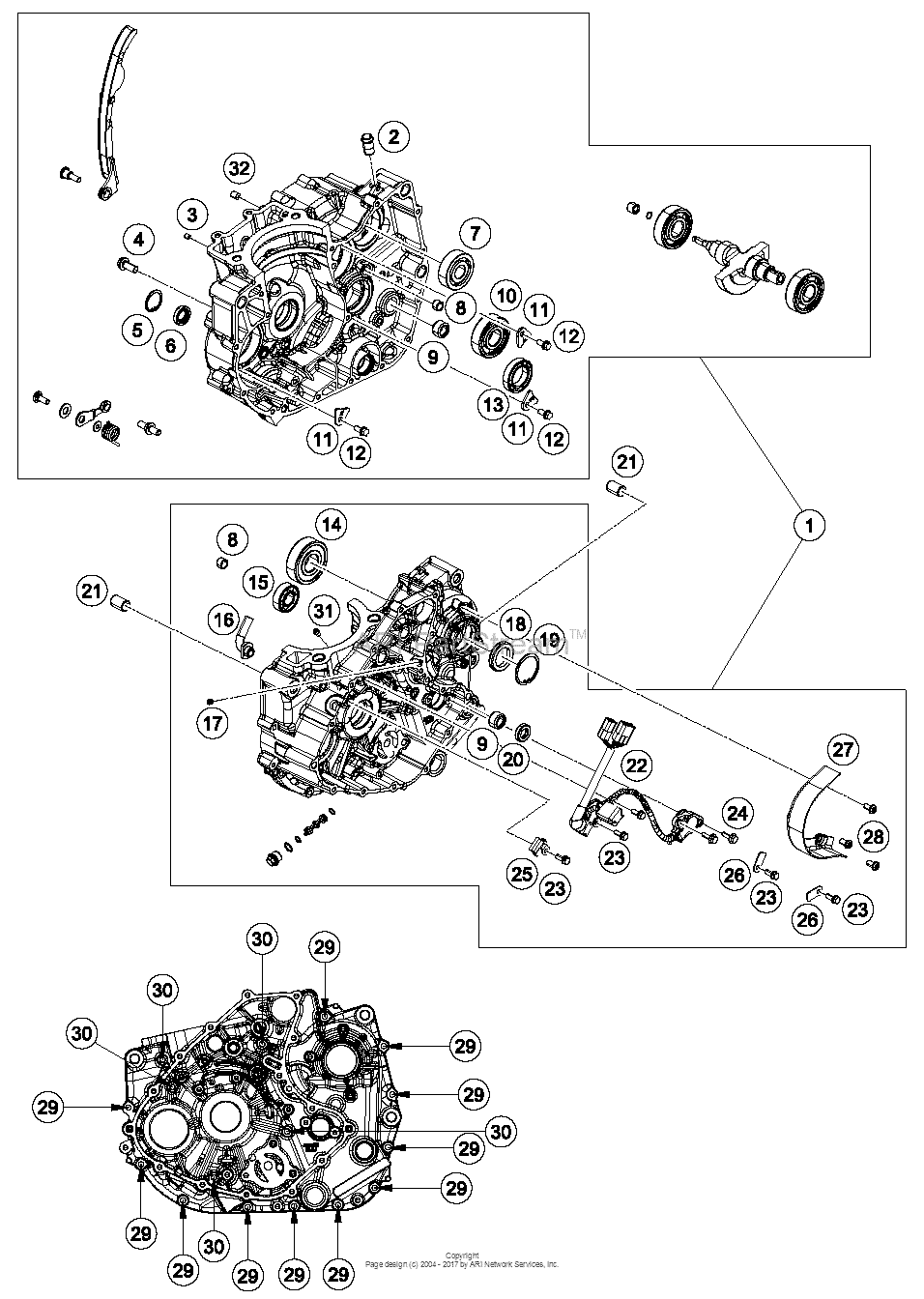

Engine Case Diagram KTM RC 390 RC 390 US/EU 18110661-940891

Engine Case Diagram KTM RC 390 RC 390 US/EU 18110661-940891
