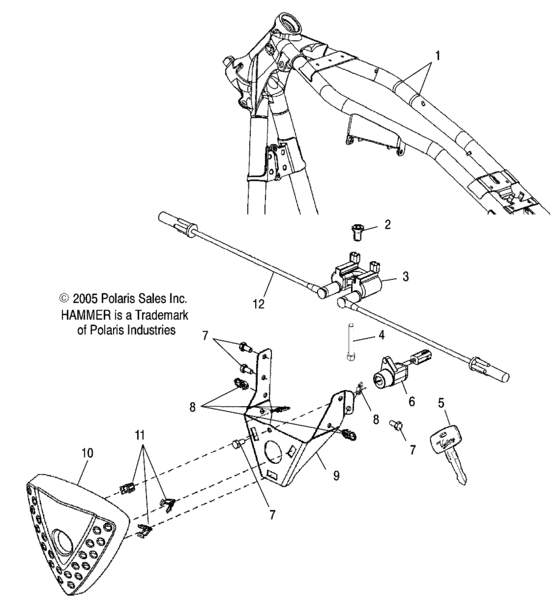

Electrical, ignition asm. (V06HB26/ALL OPTIONS) Diagram Polaris VICTORY HAMMER ALL OPTIONS
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7081033 Strap-panduit,double loop |
7081033 |
US $3.26 |
||
|
2
|
2
5134581 Spacer-coil mnt,flanged |
5134581 |
US $4.53 |
||
|
3
|
3
4010530
Coil, ignition
|
4010530 |
— | ||
|
3
|
3
2410266
Asm-ignition coil
Incl. Coil and Spark Plug Wires; |
2410266 |
— | ||
|
4
|
4
7517973
Scr-hexhd,m6x45,0600088
|
7517973 |
— | ||
|
5
|
5
4110239 Key,ignition(10)blank |
4110239 |
US $23.43 |
||
|
6
|
6
4011080-385
Asm-ign switch/fuel cap,slv
NOTE: Fuel Cap also shown on Fuel System Pg. A11, Ref. 29; |
4011080-385 |
— | ||
|
7
|
7
7517704 Screw |
7517704 |
US $10.82 |
||
|
8
|
8
7080756 Clip,snap-in |
7080756 |
US $3.26 |
||
|
9
|
9
5245658-067 Brkt-ignition/coil mnt,blk |
5245658-067 |
US $40.58 |
||
|
10
|
10
5245659 Cover-ignition/coil |
5245659 |
US $65.99 |
||
|
11
|
11
7670136 Clip-tinnerman,d98640-051m |
7670136 |
US $3.94 |
||
|
12
|
12
4010531 Lead-spark plug wire |
4010531 |
US $76.81 |
