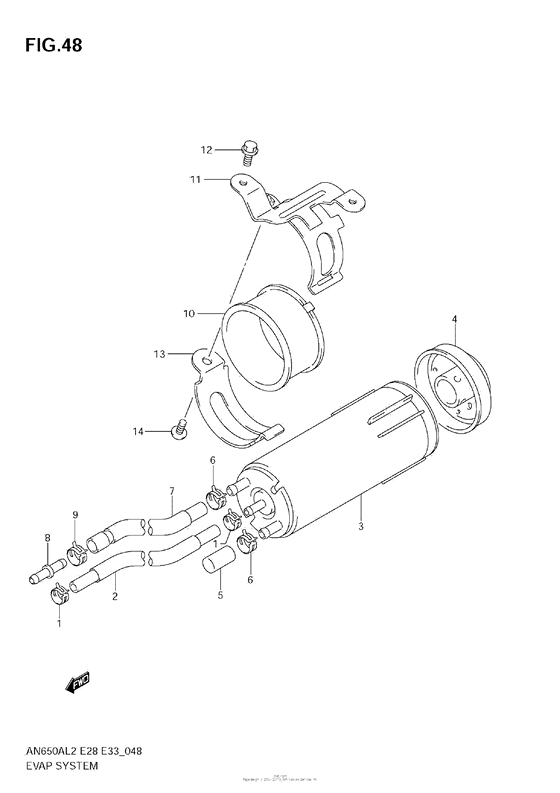

Evap System Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN650AL2 (2012)
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.28 |
||
|
2
|
2
44435-10GA0-000 HOSE,CHECK VALVE & CANISTER |
44435-10GA0-000 |
US $30.18 |
||
|
3
|
3
17210-26E00-000 CANISTER ASSY,CHARCOAL |
17210-26E00-000 |
from US $185.84 |
||
|
4
|
4
17211-48E00-000 CAP,CANISTER |
17211-48E00-000 |
from US $10.78 |
||
|
5
|
5
09251-07003-000 CAP(OD:11.5) |
09251-07003-000 |
from US $0.72 |
||
|
6
|
6
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
7
|
7
44436-10GA0-000 HOSE,CSTR PURGE |
44436-10GA0-000 |
US $45.63 |
||
|
8
|
8
09367-06009-000 JOINT |
09367-06009-000 |
from US $3.24 |
||
|
9
|
9
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.28 |
||
|
10
|
10
44883-26E00-000 CUSHION,CANISTER |
44883-26E00-000 |
from US $7.07 |
||
|
11
|
11
44880-10G00-000 BRACKET,CANISTER |
44880-10G00-000 |
US $16.16 |
||
|
12
|
12
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
13
|
13
44882-26E00-000 HOLDER,CANISTER |
44882-26E00-000 |
from US $7.58 |
||
|
14
|
14
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
