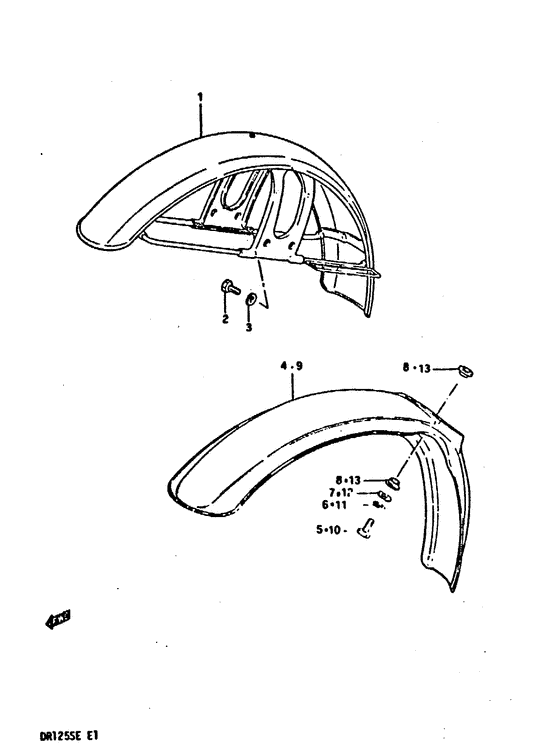

Front fender Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-32401-000
Fender, front
|
53110-32401-000 |
— | ||
|
2
|
2
01107-08163-000
Bolt m8x1.25x16
|
01107-08163-000 |
— | ||
| replacements | |||||
|
2
|
2
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.96 |
||
|
2
|
2
01500-08163-000
Bolt
|
01500-08163-000 |
— | ||
|
3
|
3
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
3
|
3
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
4
|
4
53111-38251-019
Fender, front (black)
Fender, front (black); |
53111-38251-019 |
— | ||
|
4
|
4
53111-38251-14C
Fender, front (red)
|
53111-38251-14C |
— | ||
| replacement | |||||
|
4
|
4
53111-38251-14L Front Fender (White) |
53111-38251-14L |
from US $91.26 |
||
|
4
|
4
53111-38251-163
Fender, front (yellow)
Fender, front (yellow); |
53111-38251-163 |
— | ||
|
4
|
4
53111-38251-05K
Fender,front (blue)
Fender, front (blue); |
53111-38251-05K |
— | ||
| replacement | |||||
|
4
|
4
53111-38201-13L
Fender,front
Fender, front (blue); |
53111-38201-13L |
— | ||
|
4
|
4
53111-38251-10V
Fender,front (white)
Fender, front (white); |
53111-38251-10V |
— | ||
| replacement | |||||
|
4
|
4
53111-38201-13L
Fender,front
Fender, front (white); |
53111-38201-13L |
— | ||
|
5
|
5
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-06167-000 BoltBolt, fuel cooler |
01500-06167-000 |
from US $0.72 |
||
|
6
|
6
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
7
|
7
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
7
|
7
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
8
|
8
09180-06048-000
Washer
|
09180-06048-000 |
— | ||
| replacement | |||||
|
8
|
8
09169-06053-000 WASHER |
09169-06053-000 |
from US $0.91 |
||
|
9
|
9
53111-38231-019
Fender, front (black)
Fender, front (black); E15, e18 |
53111-38231-019 |
— | ||
|
9
|
9
53111-38231-14C
Fender, front (red)
Fender, front (red); E15, e18 |
53111-38231-14C |
— | ||
|
9
|
9
53111-38231-163
Fender, front (yellow)
Fender, front (yellow); E15, e18 |
53111-38231-163 |
— | ||
|
9
|
9
53111-38231-05K
Fender,front (blue)
Fender, front (blue); E15, e18 |
53111-38231-05K |
— | ||
|
9
|
9
53111-38231-10V
Fender, front (white)
E15, e18 |
53111-38231-10V |
— | ||
| replacement | |||||
|
9
|
9
53111-38211-13L
Fender,front
E15, e18 |
53111-38211-13L |
— | ||
|
10
|
10
01107-06168-000
Bolt
E15, e18 |
01107-06168-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-06167-000 BoltBolt, fuel cooler E15, e18 |
01500-06167-000 |
from US $0.72 |
||
|
11
|
11
08321-21068-000
Lock washer
E15, e18 |
08321-21068-000 |
— | ||
| replacement | |||||
|
11
|
11
08321-01067-000 WASHER,LOCKE15, e18 |
08321-01067-000 |
from US $0.65 |
||
|
12
|
12
08322-21068-000
Washer
E15, e18 |
08322-21068-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-01067-000 WASHERE15, e18 |
08322-01067-000 |
from US $0.65 |
||
|
13
|
13
09180-06048-000
Washer
E15, e18 |
09180-06048-000 |
— | ||
| replacement | |||||
|
13
|
13
09169-06053-000 WASHERE15, e18 |
09169-06053-000 |
from US $0.91 |
||
