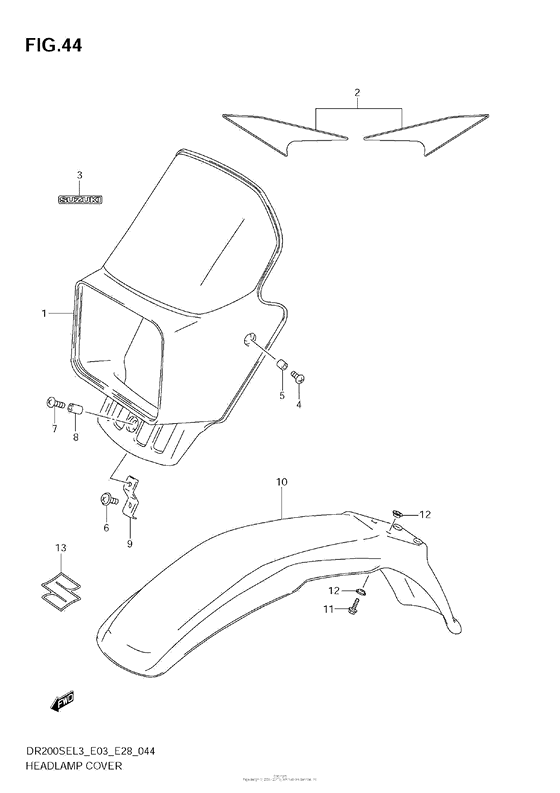

Headlamp Cover Diagram Suzuki DR200 DR200SE
- Year
- 2013
- Model code
- DR200SE
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51811-14A30-019 Cover,headlamp |
51811-14A30-019 |
from US $65.50 |
||
|
1
|
1
51811-14A30-30H Cover,headlamp |
51811-14A30-30H |
from US $43.20 |
||
|
2
|
2
68720-42A10-HLV TAPE SET,HEADLAMP COVER |
68720-42A10-HLV |
US $18.77 |
||
|
2
|
2
68720-42A10-HLW TAPE SET,HEADLAMP COVER |
68720-42A10-HLW |
from US $18.77 |
||
|
3
|
3
68721-05D00-YD8 EMBLEM,SUZUKI |
68721-05D00-YD8 |
from US $8.02 |
||
| replacement | |||||
|
3
|
3
68721-05D01-YD8 Emblem,suzuki(Silver) |
68721-05D01-YD8 |
from US $8.02 |
||
|
4
|
4
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
5
|
5
09180-06245-000 SPACER(6.1X8X3.5)Spacer (6.1x8x3.5) |
09180-06245-000 |
from US $1.34 |
||
|
6
|
6
02112-36127-000 SCREW |
02112-36127-000 |
from US $4.28 |
||
|
7
|
7
02142-0620B-000 SCREWScrew, seat hook |
02142-0620B-000 |
from US $2.84 |
||
|
8
|
8
09180-06249-000 SPACER(6.1X8X12)Spacer (6.1x8x12) |
09180-06249-000 |
from US $1.82 |
||
|
9
|
9
51814-44A00-000 BRACE,HEADLAMP HOUSING LWRBrace, cover lower |
51814-44A00-000 |
from US $3.42 |
||
|
10
|
10
53111-44A20-019 FENDER,FR |
53111-44A20-019 |
from US $96.42 |
||
|
10
|
10
53111-44A20-30H FENDER,FR |
53111-44A20-30H |
from US $96.42 |
||
|
11
|
11
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
12
|
12
09169-06053-000 WASHER |
09169-06053-000 |
from US $0.91 |
||
|
13
|
13
68151-07G10-YD8
EMBLEM,S
|
68151-07G10-YD8 |
— | ||
| replacement | |||||
|
13
|
13
68151-07G11-YD8 Emblem,s(Silver) |
68151-07G11-YD8 |
US $13.31 |
||
